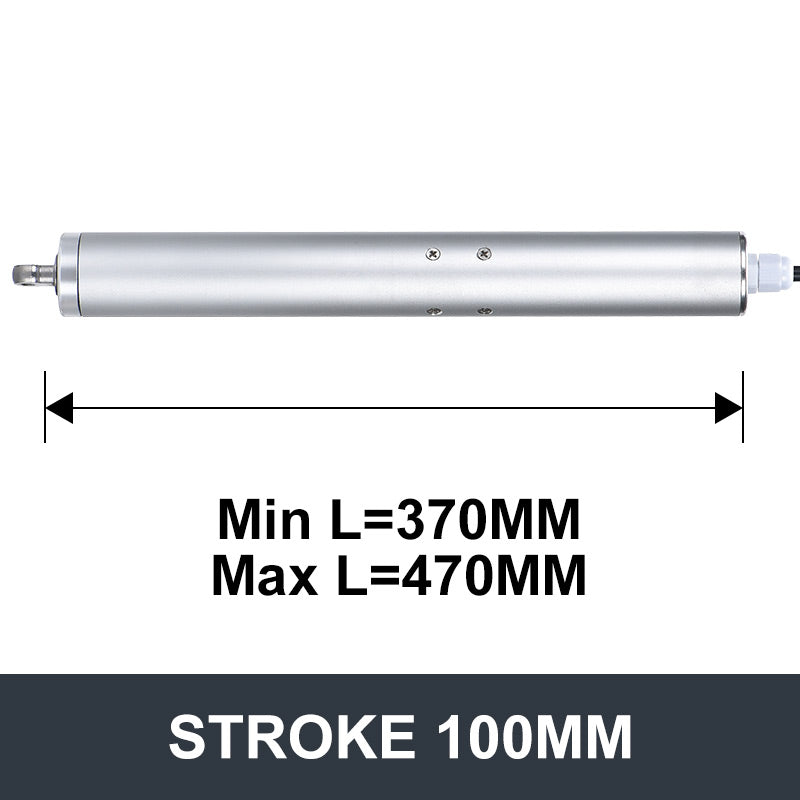

Electric Linear Motion Actuator 24V DC Motor 1000N 220LB Load - DHLA36
$40.00
TECHNICAL PARAMETERS Voltage DC24V Speed (MM/S) 8 Load Pull Capacity(N) 1000 Load Push Capacity(N) 1000 Self-locking Capacity(N) 4000 Stroke Length 10mm-1000mm Motor Power 48W Operating Temperature -15°C~+75°C Limit Switches Built-in Protection Level IP65 Material 304 Stainless Steel + Aluminum Noise <30dB Operating Frequency 10% max 2min. continuous use Inner Tube...
TECHNICAL PARAMETERS
|
Voltage
|
DC24V
|
|||||
|
Speed (MM/S)
|
8 | |||||
|
Load Pull Capacity(N)
|
1000 | |||||
|
Load Push Capacity(N)
|
1000 | |||||
|
Self-locking Capacity(N)
|
4000 | |||||
|
Stroke Length
|
10mm-1000mm
|
|||||
|
Motor Power
|
48W
|
|||||
|
Operating Temperature
|
-15°C~+75°C
|
|||||
|
Limit Switches
|
Built-in
|
|||||
|
Protection Level
|
IP65
|
|||||
|
Material
|
304 Stainless Steel + Aluminum
|
|||||
|
Noise
|
<30dB
|
|||||
|
Operating Frequency
|
10% max 2min. continuous use
|
|||||
|
Inner Tube
|
Aluminum tube
|
|||||
|
Lead screw Type
|
Type T
|
|||||
|
Mechanical Life
|
More than 30,000 times
|
|||||
OUTLINE DIMENSION DRAWING
