Electric Linear Motion Actuator 24V DC Motor 1500N 330LB Load - DHLA1300-A2

Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC24V Speed (MM/S) 5 12 25 40 52 Load Pull Capacity(N) 1500 1000 500 400 200 Load Push Capacity(N) 1500 1000 500 400 300 Self-locking Capacity(N) 1500 1000 500 400...

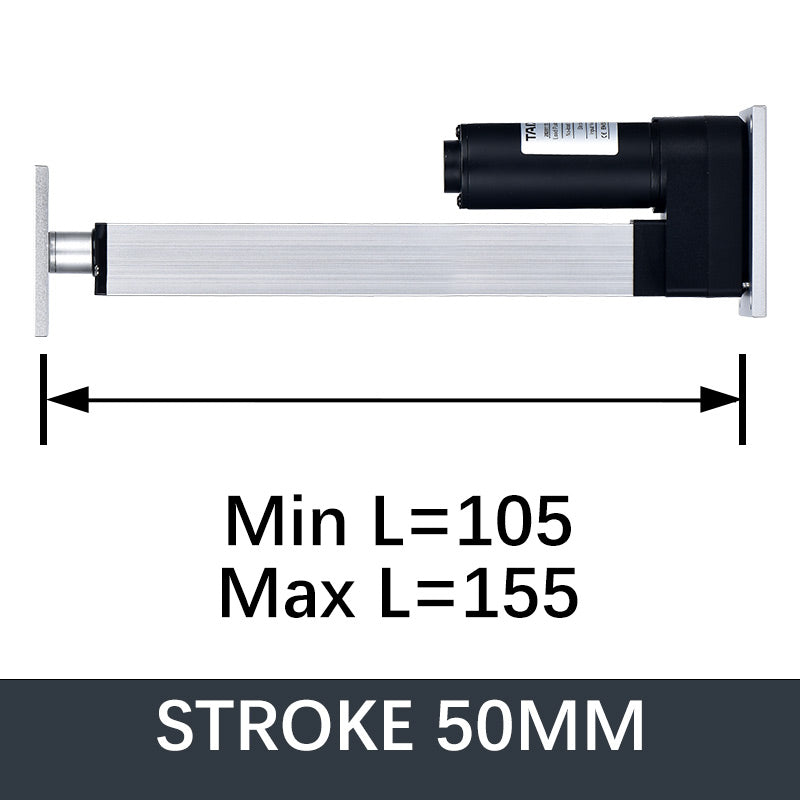

STROKE
SPEED
-
+
$18.00

DIHOOL

100 In Stock

Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days.

TECHNICAL PARAMETERS

Voltage DC24V
Speed (MM/S) 5 12 25 40 52
Load Pull Capacity(N) 1500 1000 500 400 200
Load Push Capacity(N) 1500 1000 500 400 300
Self-locking Capacity(N) 1500 1000 500 400 300
Self-locking Capacity(N) 50mm-1600mm
Motor Power 30W
Operating Temperature -10°C~+55°C
Limit Switches Built-in
IP Grade IP43
Material Aluminum
Noise <30dB
Operating Frequency 10%max 2min. continuous use
Inner Tube Aluminum Tube
Lead Screw Type Type T
Mechanical Life

More than 50,000 times

OUTLINE DIMENSION DRAWING
