Electric Linear Motion Actuator 12V DC Motor 150N 33LB Load - DHLA45-20
$40.00
Note: The stroke can be customized such as 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC12V Load Push(N) 150 100 40 No-Load Speed(MM/S) 4 10 15 Load Speed(MM/S) 3 6 10 No-Load Current (A) 0.12 0.1 0.1 Load Current (A) 0.5 0.36 0.4 Stroke Length 50mm-400mm...
Note: The stroke can be customized such as 70MM, etc., And it will take 3-7 days.
TECHNICAL PARAMETERS
Voltage
|
DC12V
|
||
Load Push(N)
|
150 | 100 | 40 |
No-Load Speed(MM/S)
|
4 | 10 | 15 |
Load Speed(MM/S)
|
3 | 6 | 10 |
No-Load Current (A)
|
0.12 | 0.1 | 0.1 |
Load Current (A)
|
0.5 | 0.36 | 0.4 |

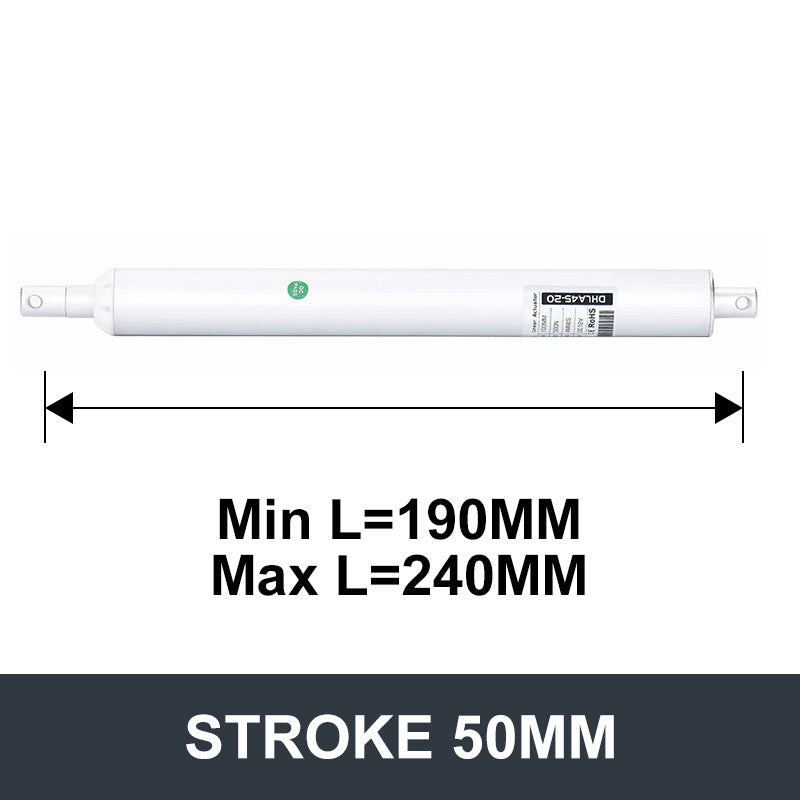

Stroke Length
|
50mm-400mm
|
||
Material
|
Aluminum
|
||
Operating Temperature
|
-10°C~+60°C
|
||
Limit Switches
|
Built-in
|
||
IP Grade
|
IP65
|
||
Noise
|
<35dB
|
||
Operating Frequency
|
10% max 2min. continuous use
|
||
Inner Tube
|
Aluminum tube
|
||
Lead screw Type
|
Type T
|
||
Mechanical Life
|
More than 50,000 times
|
OUTLINE DIMENSION DRAWING
