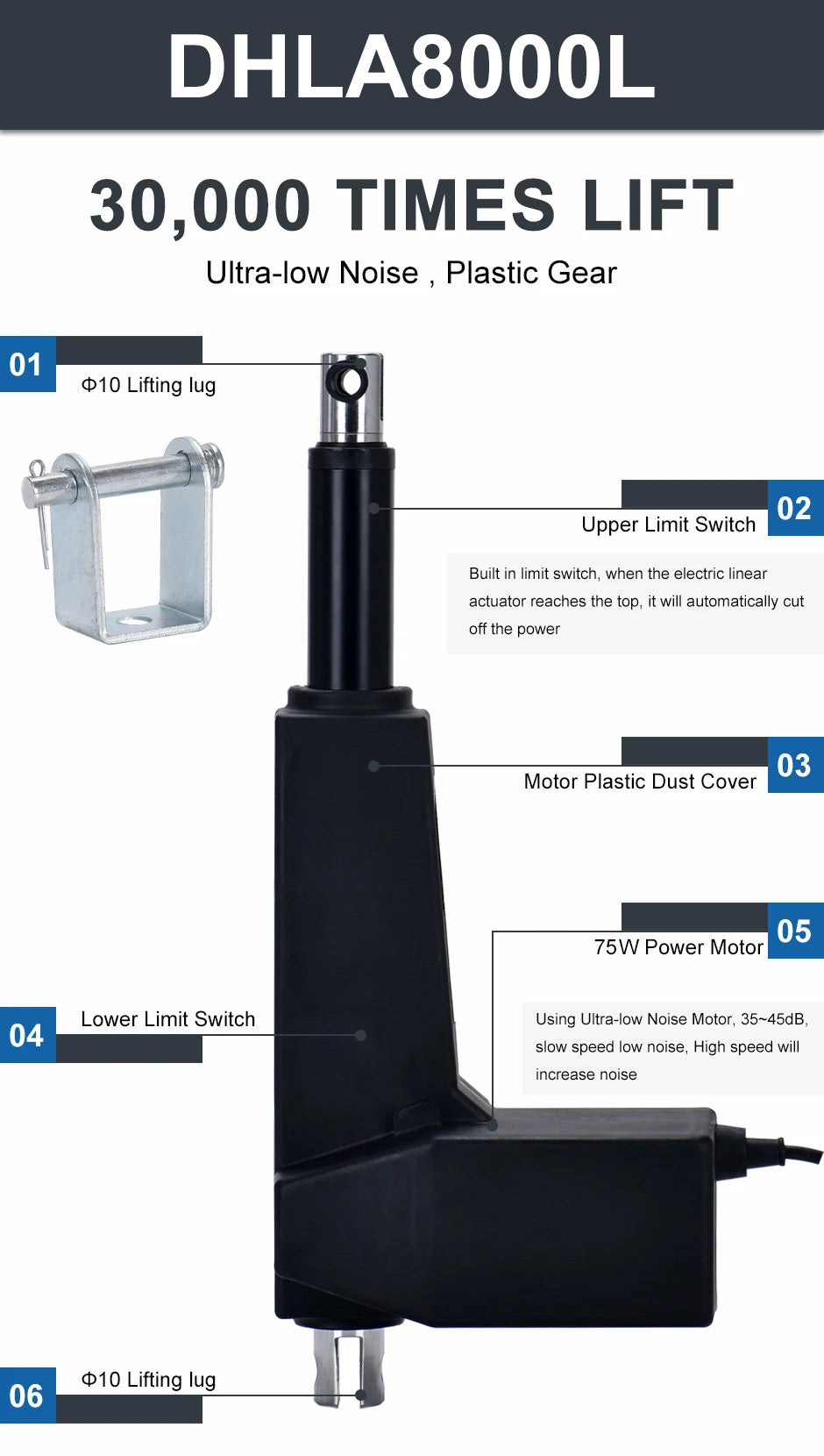

Electric Linear Motion Actuator 12V DC Motor 8000N 1760LB Load - DHLA8000L

Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC12V Speed (MM/S) 5 8 10 15 20 24 30 40 60 Load Pull Capacity(N) 7000 6000 5000 3000 2500 2000 1500 1200 400 Load Push Capacity(N) 8000 7000 6000...
STROKE
SPEED
-
+
$38.00

DIHOOL

50 In Stock

Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days.

TECHNICAL PARAMETERS

Voltage
DC12V
Speed (MM/S)
5 8 10 15 20 24 30 40 60
Load Pull Capacity(N)
7000 6000 5000 3000 2500 2000 1500 1200 400
Load Push Capacity(N)
8000 7000 6000 4000 3000 2500 2000 1500 500
Self-locking Capacity(N)
8000 7000 6000 4000 3000 2500 2000 1500 500

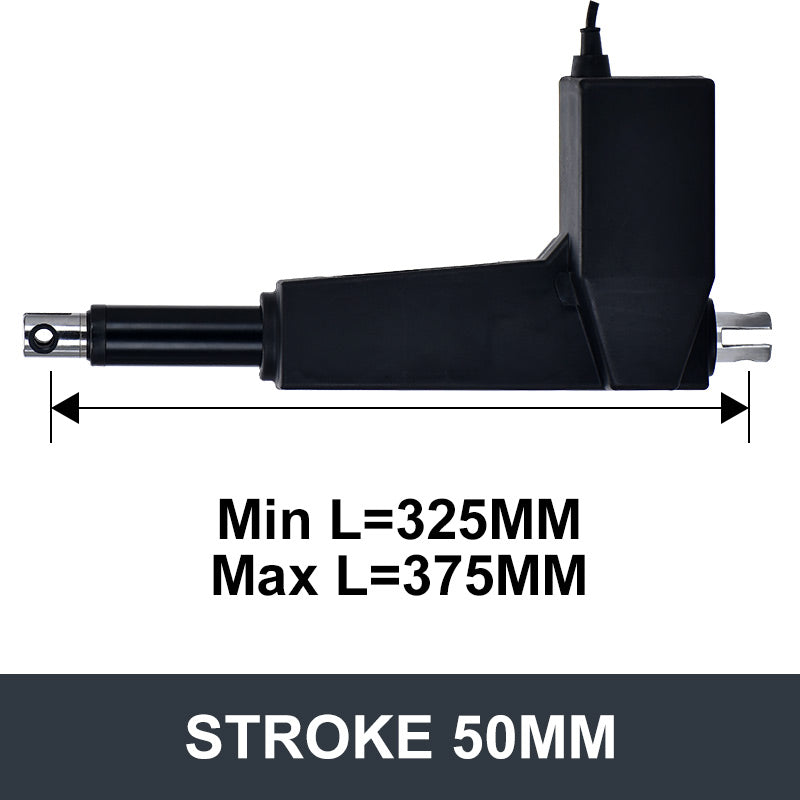

Stroke Length
50mm-1000mm
Operating Temperature
-25°C~+65°C
Limit Switches
Built-in
Motor Power
75W
Operating Frequency
10% continuous work for 2 minutes
Protection Class
IP54
Color
Black and White

OUTLINE DIMENSION DRAWING
