IPS-HS1 Controller
Payment Note: Check out with PayPal - Credit cards accepted (no PayPal account required)
PRODUCT INTRODUCTION

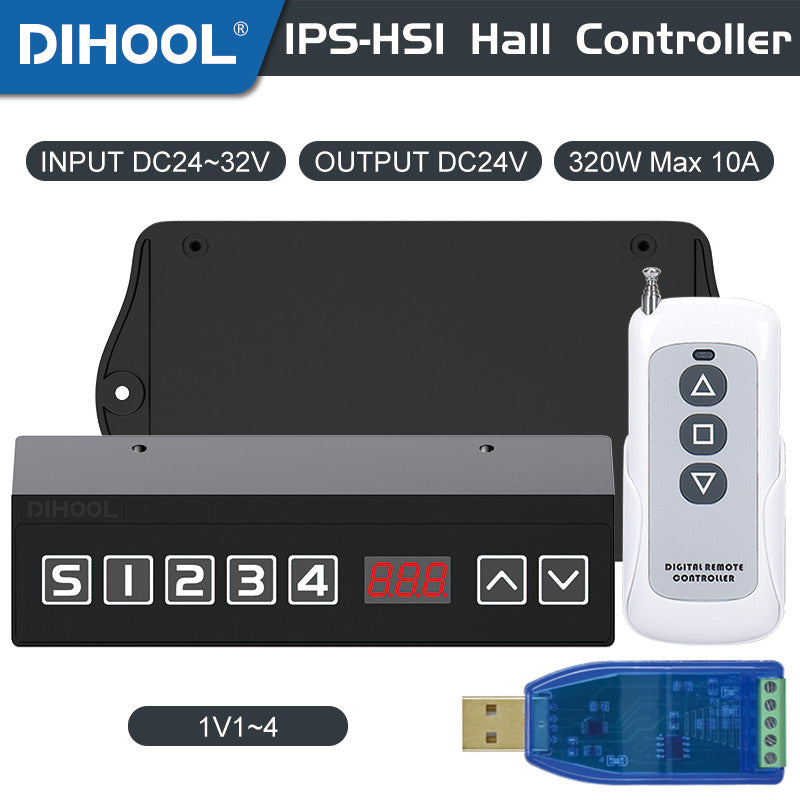

IPS-HS1 is a programmable synchronous Hall controller with RS485 serial port, mainly used to control 1~2/4/8 Hall electric linear actuators and Hall electric lift to operate synchronously. The HS1 controller uses a voltage of 20-30V, total circuit current of less than 20A. This product can be controlled by sensors and buttons, and can be paired with PLC programming to control multiple lifts. Please strictly refer to the motor standard setting program. Incorrect program settings can damage the motor.
Default Accessories

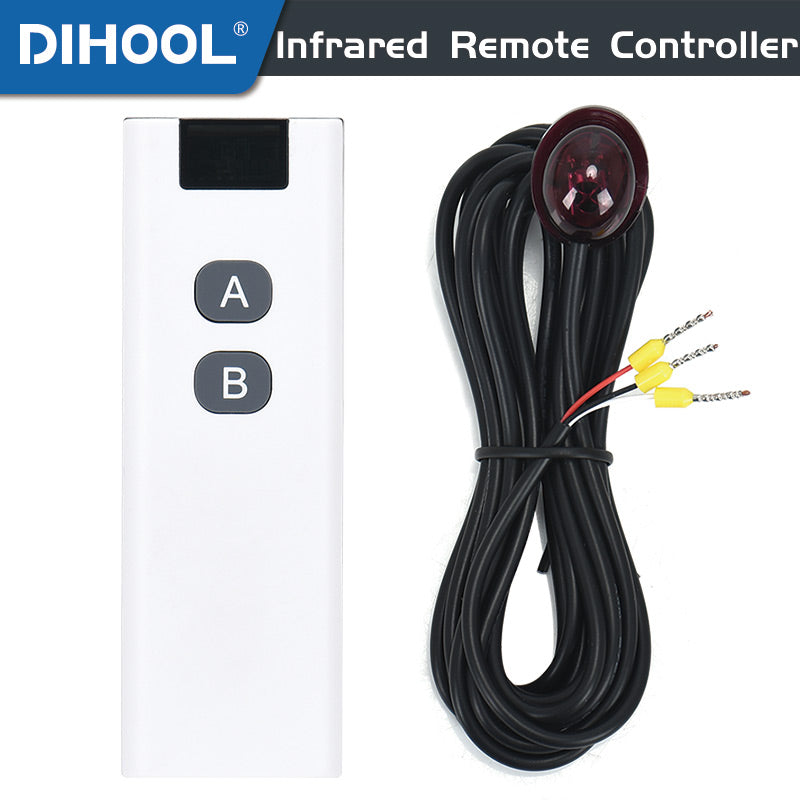

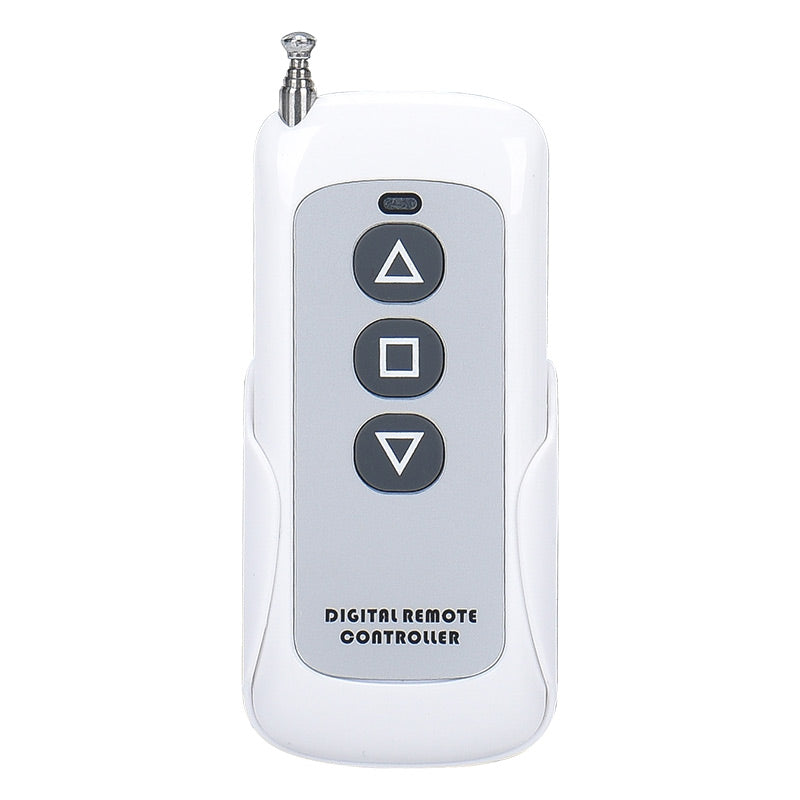

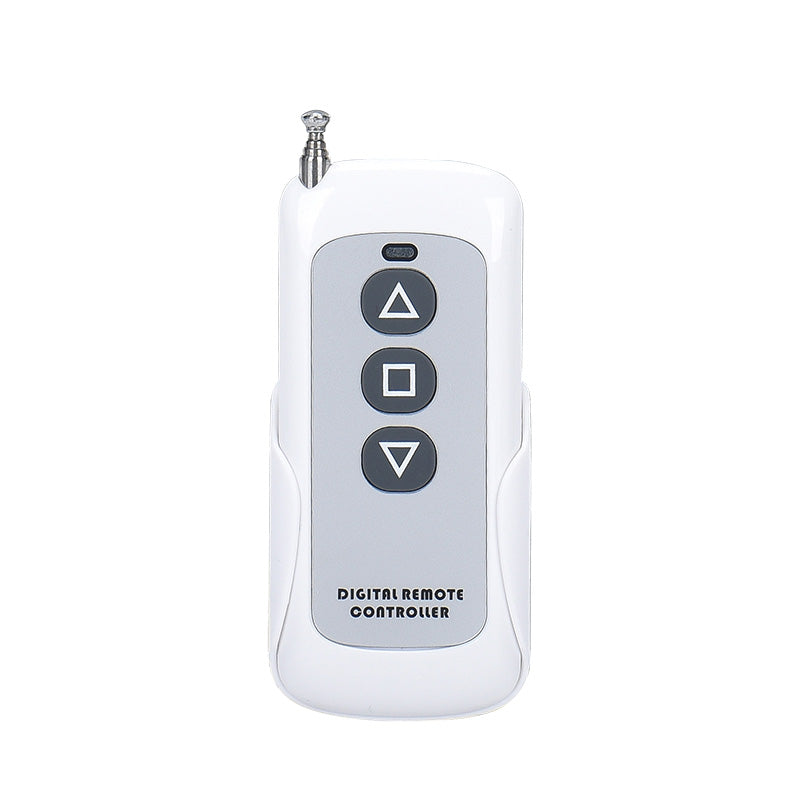

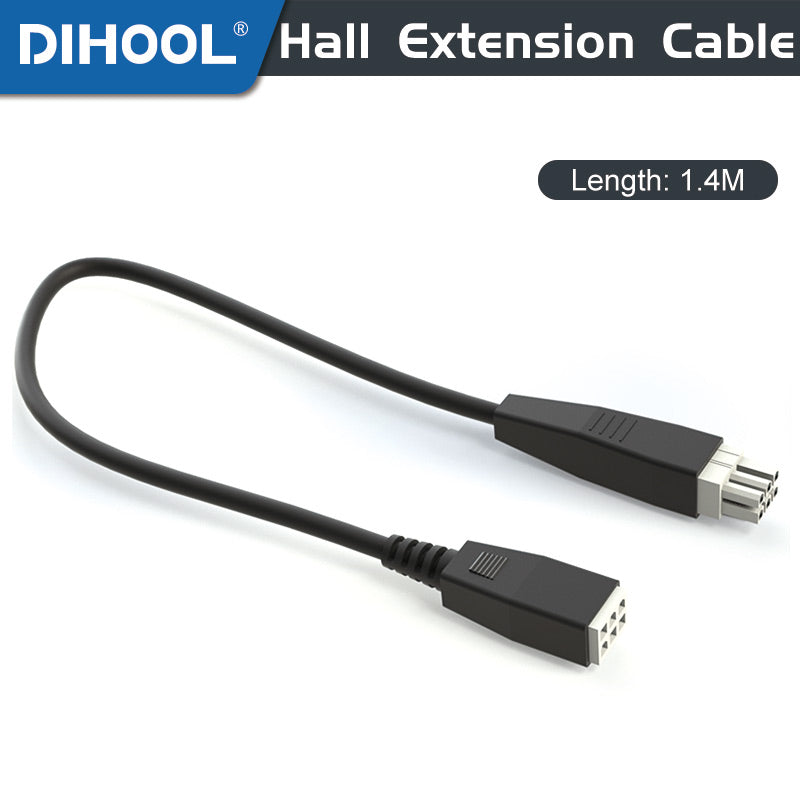

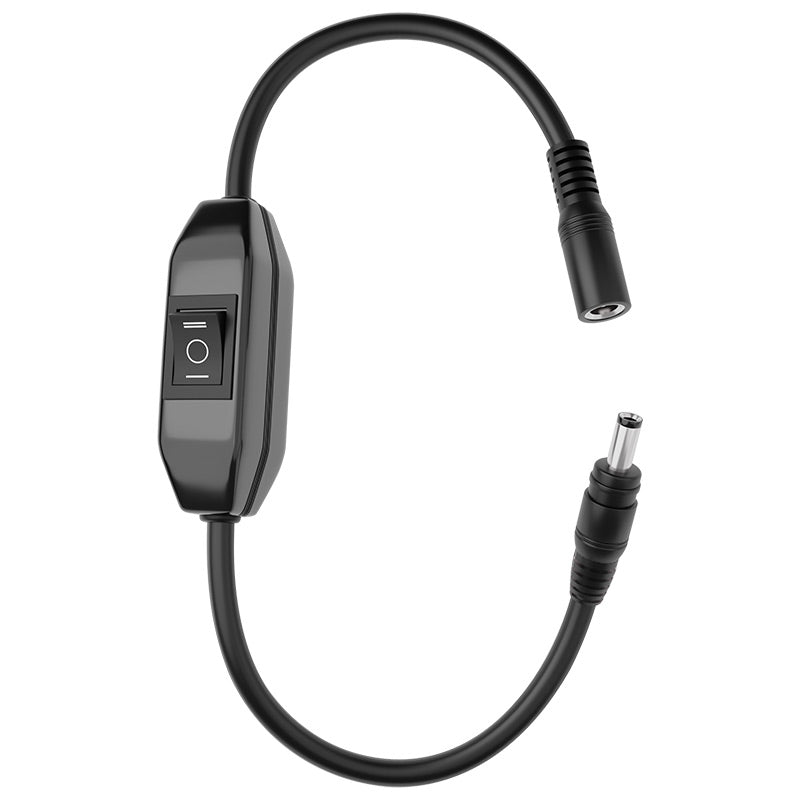

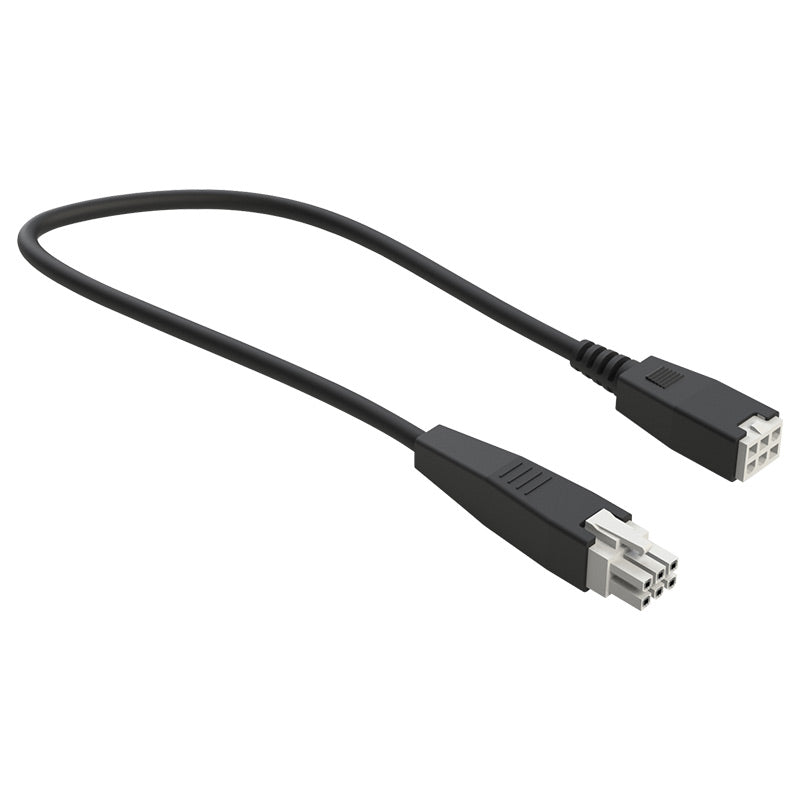

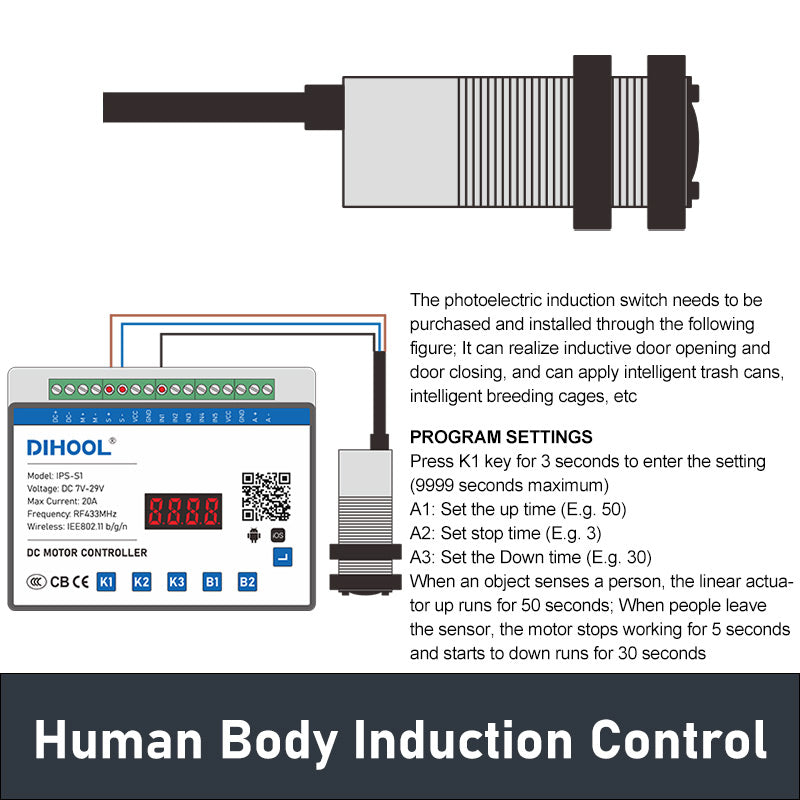

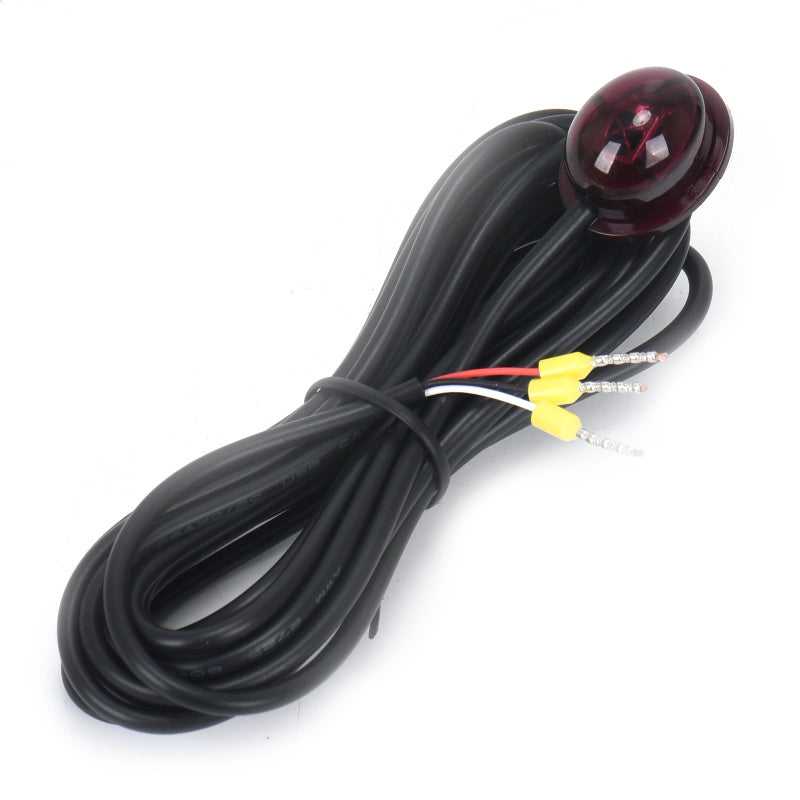

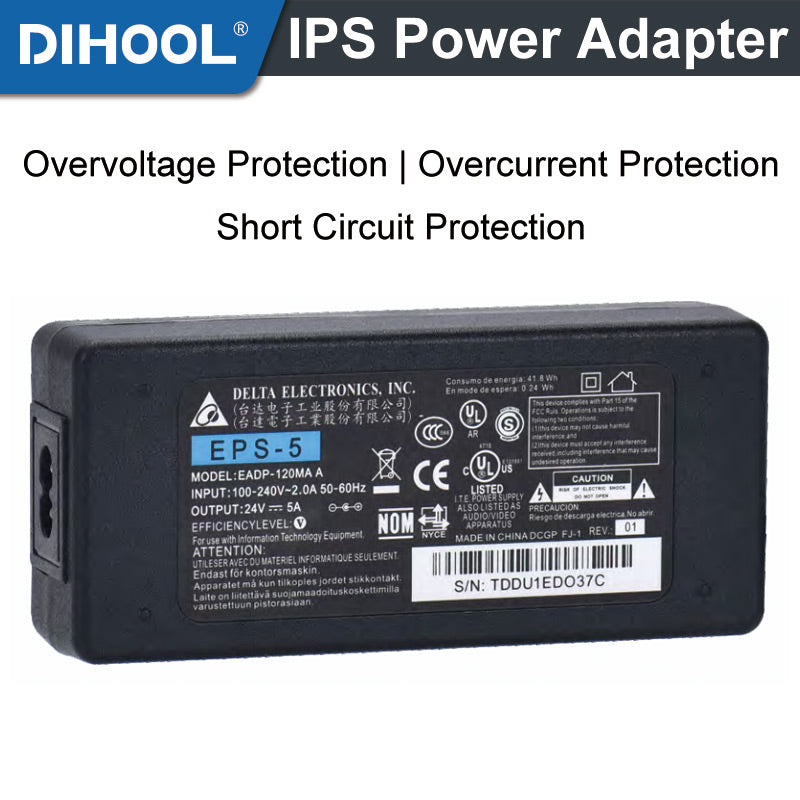

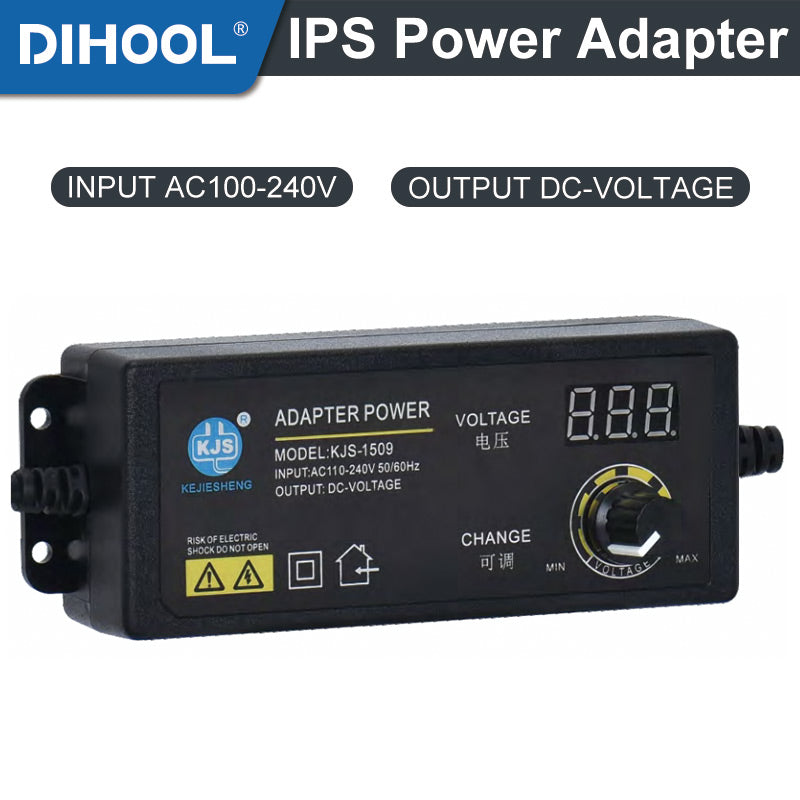

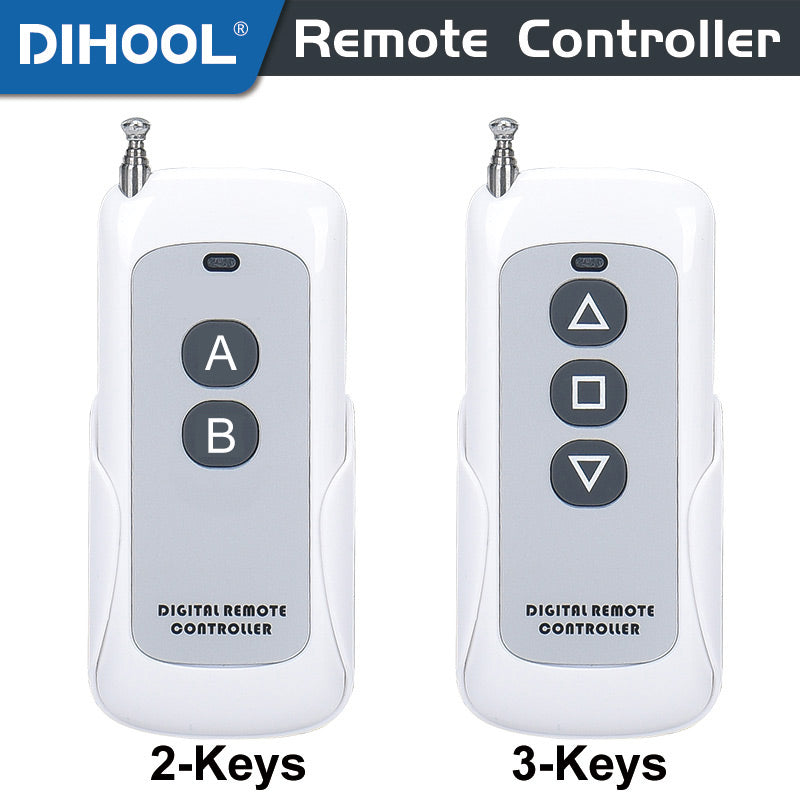

Optional Accessories
TECHNICAL PARAMETERS
| Model | IPS‑HS1 | Input Voltage | DC 20V~30V |
| Maximum Current | 20A | Receiving Frequency | RF433MHz |
| Remote Control Battery | 23A 12V | Working Temperature | -20°C ~ +70°C |
| Working Humidity | 10%~90%RH(No condensation) | Key Mode | Press to Work, Release to Stop |
| Control Motor Type | 6‑pin Hall Wire | Control The Number Of Motors | 1~2/4/8 pcs |
| Handle Control Wire Length | ≤1.5 Meters | Motor Wire Length | ≤3 Meters |
Note: You need to consult us before you can modify the controller. Please do not modify randomly, it will cause the electric actuator damage. You Need to record every value (n01-n 12) before modification
1. Press the'S, 1, 2, 3'buttons in sequence to enter the settings
2. RST malfunction occurs, please press the 'V' button to reset
3. To use sensor control, please press'S, 3, 2, 1'to enter the settings
4. After setting the parameters, please press 'S' for 3 seconds to save
DIMENSIONS
WIRING INSTRUCTION
Motor Wiring
Setting Method For Remote Controller
Connection Method Of Handle Controller
Connection Method Of Foot Switch Controller
