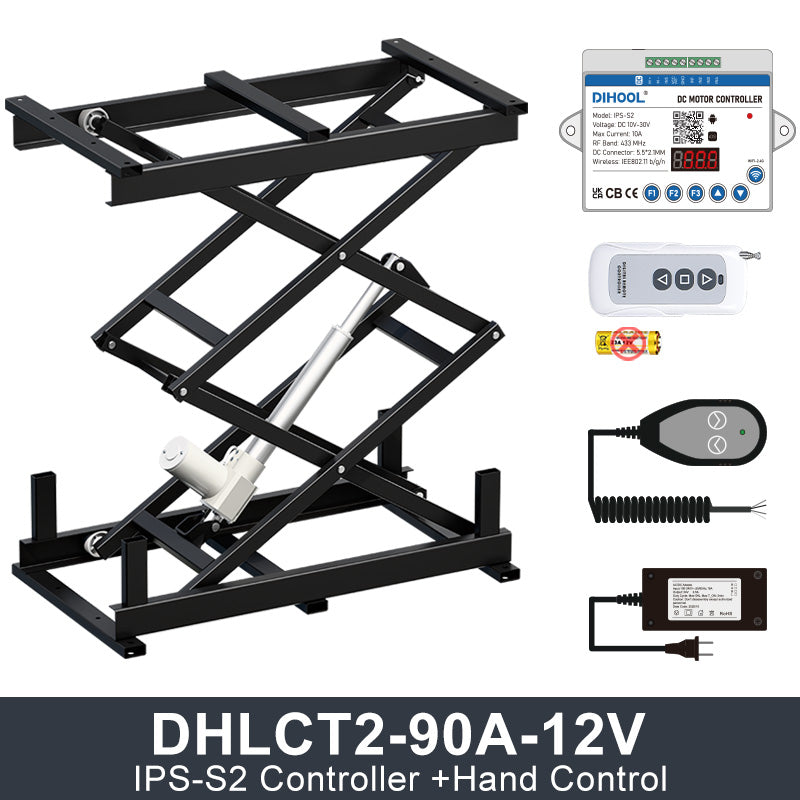

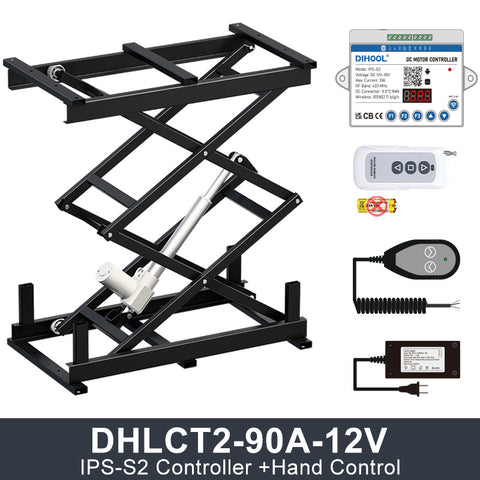

DHLCT2-90A Electric Scissor Lift 12V/24V DC Motor 900N 198LB Load

$250.00

TECHNICAL PARAMETERS Model DHLCT-60A DHLCT-150A DHLCT-200A DHLCT-150 DHLCT2-90A DHLCT2-120A Load Capacity 60KG 150KG 200KG 150KG 90KG 120KG Speed 15MM/S 11MM/S 9MM/S 10MM/S 14MM/S 12MM/S Min Height 100MM 210MM 205MM 185MM 265MM 265MM Max Height 375MM 580MM 685MM 685MM 1280MM 1100MM Stroke 275MM 370MM 480MM 500MM 1015MM 835MM Size (L*W*H) 400*320*100MM...

12V-S2-Hand Control Sold Out

24V-S2-Hand Control Sold Out

12V-S2-Foot Control Sold Out

24V-S2-Foot Control Sold Out

Hall-HS1-1 Sold Out

Hall-HS1-2 Sold Out

12V-No Controller Sold Out

24V-No Controller Sold Out

Quantity:

Subtotal:$250.00

Brand: DIHOOL

Movement:

Availability: 100 In Stock

TECHNICAL PARAMETERS

Model	DHLCT-60A	DHLCT-150A	DHLCT-200A	DHLCT-150	DHLCT2-90A	DHLCT2-120A
Load Capacity	60KG	150KG	200KG	150KG	90KG	120KG
Speed	15MM/S	11MM/S	9MM/S	10MM/S	14MM/S	12MM/S
Min Height	100MM	210MM	205MM	185MM	265MM	265MM
Max Height	375MM	580MM	685MM	685MM	1280MM	1100MM
Stroke	275MM	370MM	480MM	500MM	1015MM	835MM
Size (LWH)	400320100MM	590420210MM	760420205MM	760420185MM	750420265MM	750420265MM
Weight	5KG	14KG	17KG	16KG	22KG	22KG
Position Accuracy Error	No Load ± 5MM, Load ± 2MM
Voltage	DC20 V-32V
Surface Treatment	Electrophoretic Black
Operating Temperature	-10°C~+65°C
IP Grade	IP43
Limit Switches	Built-in
Operating Frequency	10% Work System, Maximum 1 Hour Continue Working
Optional Configuration	Hall Sensor: Position Display, Position Memory, Precise Control Magnetic Induction Sensor: Adjust position Limit Upper and Lower Limit Feedback

Optional Configuration
