Electric Linear Motion Actuator 12V DC Motor 2000N 440LB Load - DHLA35-A1
$48.00
Stroke Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days to produce. Payment Note: Check out with PayPal - Credit cards accepted (no PayPal account required) TECHNICAL PARAMETERS Voltage DC12V Speed (MM/S) 8 15 22 Load Pull Capacity(N) 2000 1500 800 Load...
Stroke Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days to produce.
Payment Note: Check out with PayPal - Credit cards accepted (no PayPal account required)
TECHNICAL PARAMETERS
|
Voltage
|
DC12V
|
|||||
|
Speed (MM/S)
|
8 | 15 | 22 | |||
|
Load Pull Capacity(N)
|
2000 | 1500 | 800 | |||
|
Load Push Capacity(N)
|
2000 | 1500 | 800 | |||
|
Self-locking Capacity(N)
|
2000 | 1500 | 800 | |||
|

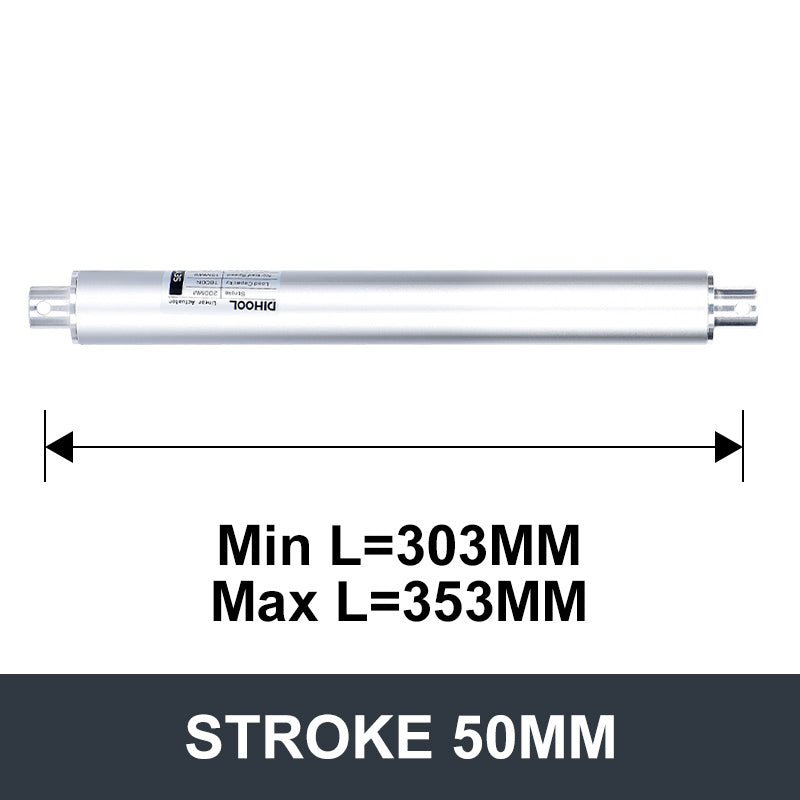

Stroke Length
|
50MM~1000MM
|
|||||
|
Operating Temperature
|
-0°C~+40°C
|
|||||
|
Limit Switches
|
Built-in
|
|||||
|
Operating Frequency
|
10% Max 2Min. Continuous Use
|
|||||
|
Inner Tube
|
Aluminum tube
|
|||||
|
Lead Screw Type
|
Type T
|
|||||
OUTLINE DIMENSION DRAWING
