Electric Linear Motion Actuator 12V DC Motor 2000N 440LB Load - DHLA35-A2
$48.00
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC12V No-Load Speed (MM/S) 8 15 22 Load Pull Capacity (N) 2000 1500 800 Load Push Capacity (N) 2000 1500 800 Self-locking Capacity (N) 2000 1500 800 Stroke Length 50MM~1000MM...
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days.
TECHNICAL PARAMETERS
| Voltage | DC12V | |||||
| No-Load Speed (MM/S) | 8 | 15 | 22 | |||
| Load Pull Capacity (N) | 2000 | 1500 | 800 | |||
| Load Push Capacity (N) | 2000 | 1500 | 800 | |||
| Self-locking Capacity (N) | 2000 | 1500 | 800 | |||
| Stroke Length | 50MM~1000MM | |||||
| Operating Temperature | -0°C~+40°C | |||||
| Limit Switches | Built-in | |||||
| Operating Frequency | 10% Max 2Min. Continuous Use | |||||
| Inner Tube | Aluminum tube | |||||
| Lead Screw Type | Type T | |||||

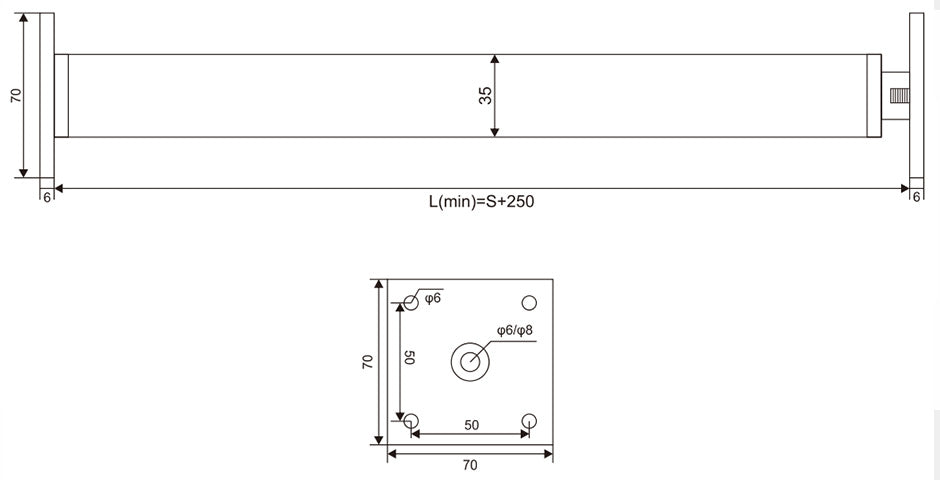

OUTLINE DIMENSION DRAWING
