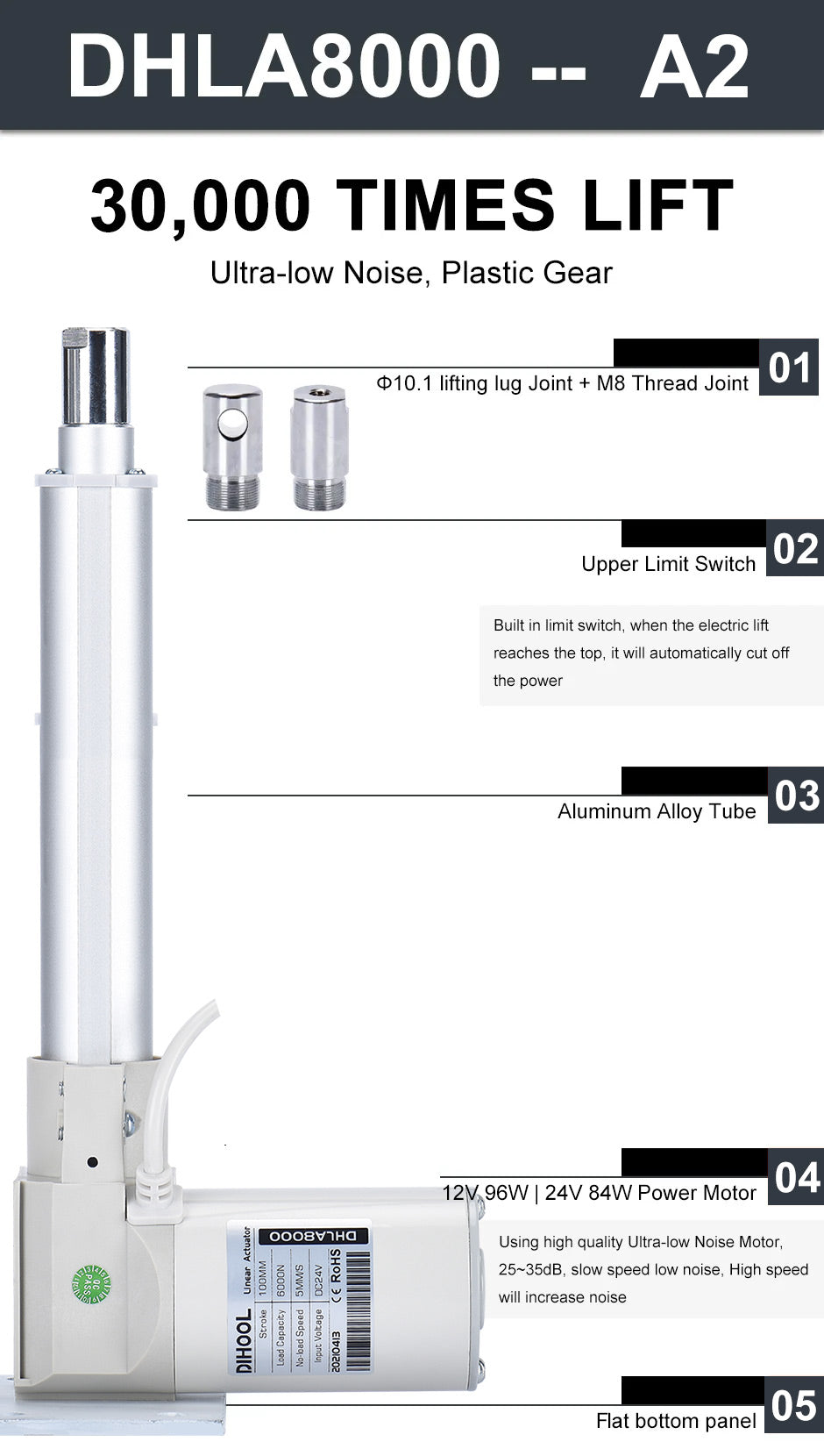

Electric Linear Motion Actuator 24V DC Motor 8000N 1760LB Load - DHLA8000-A2
$33.00
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC24~32V Speed (MM/S) 3.3 4.5 9 15 25 Load Pull Capacity(N) 4000 3000 2000 1500 500 Load Push Capacity(N) 8000 6000 3000 2000 800 Self-locking Capacity(N) 8000 6000 3000 2000...
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days.
TECHNICAL PARAMETERS
| Voltage | DC24~32V | |||||
| Speed (MM/S) | 3.3 | 4.5 | 9 | 15 | 25 | |
| Load Pull Capacity(N) | 4000 | 3000 | 2000 | 1500 | 500 | |
| Load Push Capacity(N) | 8000 | 6000 | 3000 | 2000 | 800 | |
| Self-locking Capacity(N) | 8000 | 6000 | 3000 | 2000 | 800 | |
| Stroke Length | 50mm-1000mm | |||||
| Motor Power | DC12V 96W | DC24V 96W | |||||
| Operating Temperature | 0°C~+40°C | |||||
| Limit Switches | Built-in | |||||
| IP Grade | IP43 | |||||
| Material | Stainless steel tube and stainless steel tail | |||||
| Noise | <30dB | |||||
| Operating Frequency | 10% max 2min. continuous use | |||||
| Inner Tube | Aluminum tube | |||||
| Lead screw Type | Type T | |||||
| Mechanical Life | More than 30,000 times | |||||

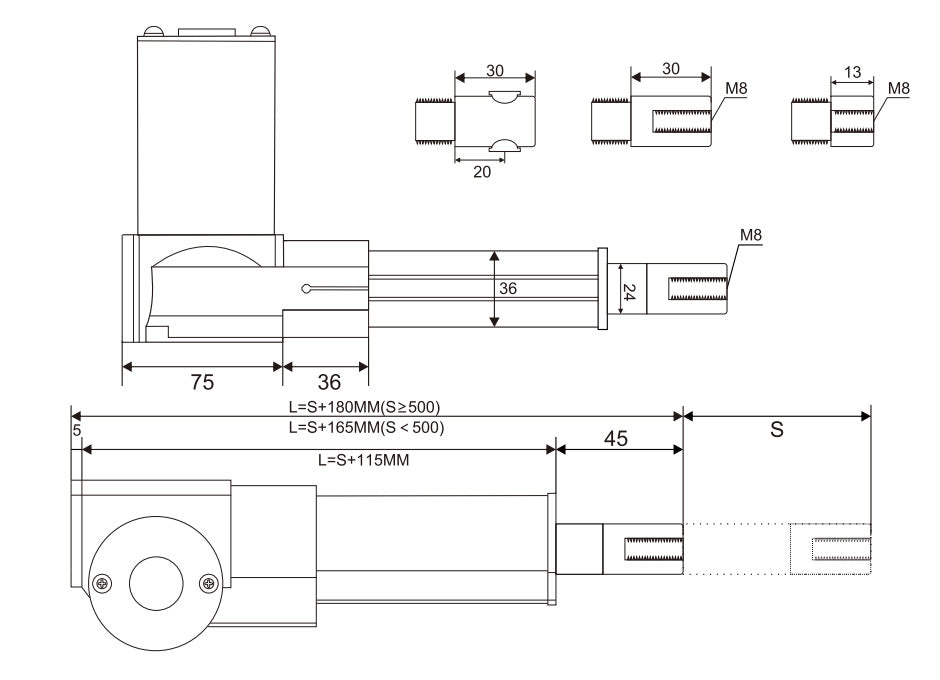

OUTLINE DIMENSION DRAWING

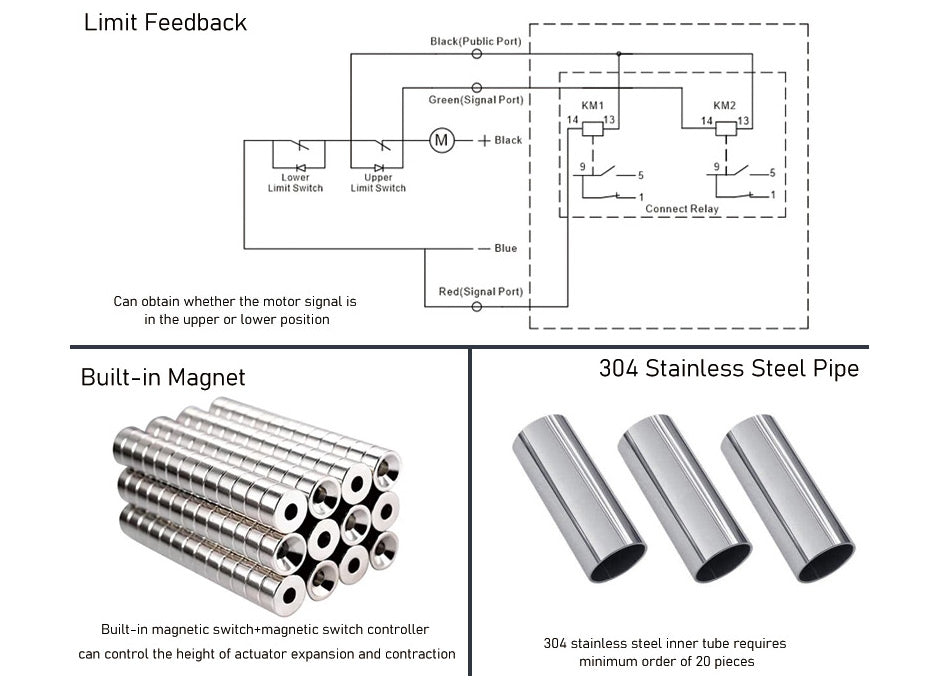

Optional Configuration
