Electric Linear Motion Actuator 12V DC Motor 180N 40LB Load - DHLA130-A2
$16.00
Stroke Note: The stroke can be customized such as 65MM, 120MM, etc., And it will take 3-7 days to produce. Payment Note: Check out with PayPal - Credit cards accepted (no PayPal account required) TECHNICAL PARAMETERS Voltage DC12V No-Load Speed (MM/S) 150 50 28 14 7 3.5 Load Push Capacity...
Stroke Note: The stroke can be customized such as 65MM, 120MM, etc., And it will take 3-7 days to produce.
Payment Note: Check out with PayPal - Credit cards accepted (no PayPal account required)
TECHNICAL PARAMETERS
| Voltage | DC12V | ||||||
| No-Load Speed (MM/S) | 150 | 50 | 28 | 14 | 7 | 3.5 | |
| Load Push Capacity (N) | 8 | 18 | 40 | 80 | 120 | 180 | |
| Self-locking Capacity (N) | 6 | 10 | 20 | 50 | 70 | 150 | |
| Stroke Length | Standard Type: 10MM,15MM,17.5MM,20MM,30MM,50MM,75MM,100MM,150MM,200MM | ||||||
| Waterproof Type: 10MM,15MM,20MM,30MM,50MM,75MM,100MM,150MM,200MM | |||||||
| Hall Type: 30MM,50MM,75MM,100MM,150MM,200MM | |||||||
| Motor Power | 5W | ||||||
| Operating Temperature | -10°C~+50°C | ||||||
| Limit Switches | Built-in | ||||||
| Operating Frequency | 10% Max 2Min. Continuous Use | ||||||
| Color | Black | ||||||
| Inner Tube | Aluminum tube | ||||||
| Material | Aluminum | ||||||
| Protection Class | IP43/IP65 | ||||||
| Noise | Below 55dB | ||||||
| Mechanical Life | More than 10,000 times | ||||||
| Note | Customized DC6V | ||||||

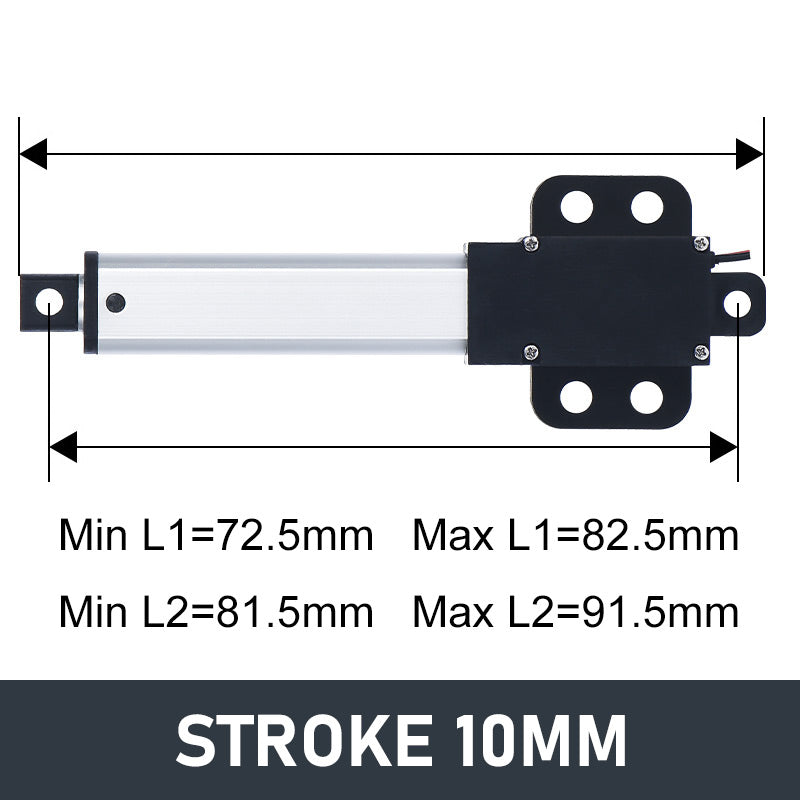

OUTLINE DIMENSION DRAWING
