Electric Linear Motion Actuator 24V DC Motor 1500N 330LB Load - DHLA1300-A1
$18.00
Stroke Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days to produce. Payment Note: Check out with PayPal - Credit cards accepted (no PayPal account required) TECHNICAL PARAMETERS Voltage DC24~32V No-Load Speed (MM/S) 5 12 25 40 52 Load Pull Capacity (N)...
Stroke Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days to produce.
Payment Note: Check out with PayPal - Credit cards accepted (no PayPal account required)
TECHNICAL PARAMETERS
| Voltage | DC24~32V | ||||
| No-Load Speed (MM/S) | 5 | 12 | 25 | 40 | 52 |
| Load Pull Capacity (N) | 1500 | 1000 | 500 | 400 | 200 |
| Load Push Capacity (N) | 1500 | 1000 | 500 | 400 | 300 |
| Self-locking Capacity (N) | 1500 | 1000 | 500 | 400 | 300 |

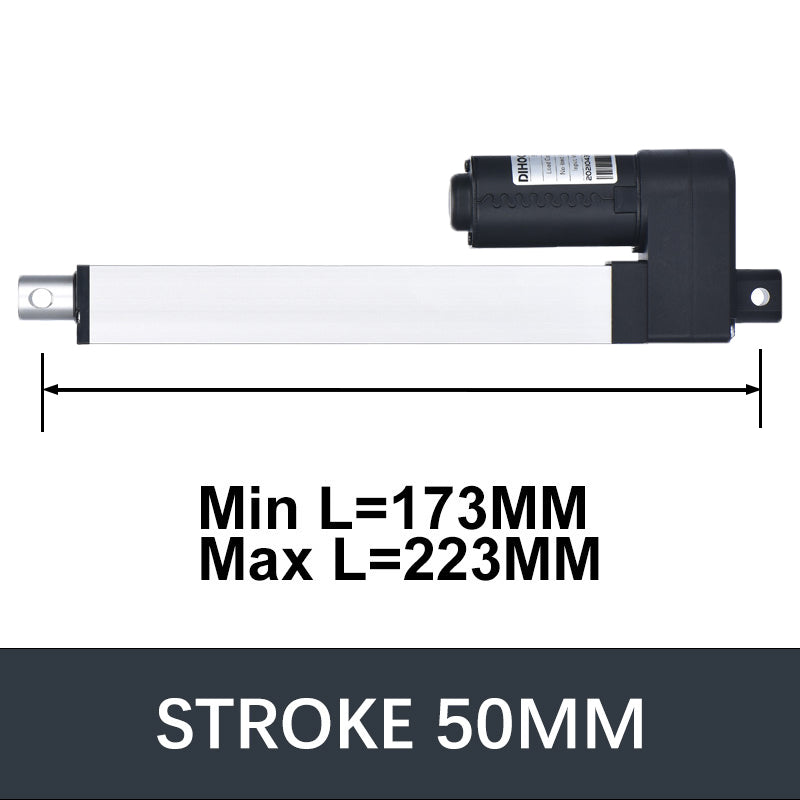

| Stroke Length | 50mm-1000mm | ||||
| Motor Power | 30W | ||||
| Operating Temperature | -10°C~+55°C | ||||
| Limit Switches | Built-in | ||||
| IP Grade | IP43 | ||||
| Material | Aluminum | ||||
| Noise | ＜30dB | ||||
| Operating Frequency | 10%max 2min. continuous use | ||||
| Inner Tube | Aluminum Tube | ||||
| Lead Screw Type | Type T | ||||
| Mechanical Life | More than 50,000 times | ||||
OUTLINE DIMENSION DRAWING
