Electric Linear Motion Actuator 12V DC Motor 10000N 2200LB Load - DHLA10000-A1

Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC12V Speed (MM/S) 5 8 12 17 22 33 67 160 Load Pull Capacity(N) 10000 7000 6000 4000 3000 2000 1500 750 Load Push Capacity(N) 10000 7000 6000 4000 3000...
STROKE
SPEED
-
+
$130.00

DIHOOL

50 In Stock

Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days.

TECHNICAL PARAMETERS

Voltage
DC12V
Speed (MM/S)
5 8 12 17 22 33 67 160
Load Pull Capacity(N)
10000 7000 6000 4000 3000 2000 1500 750
Load Push Capacity(N)
10000 7000 6000 4000 3000 2000 1500 750
Self-locking Capacity(N)
11000 10000 8000 5000 4000 3000 3000 2000

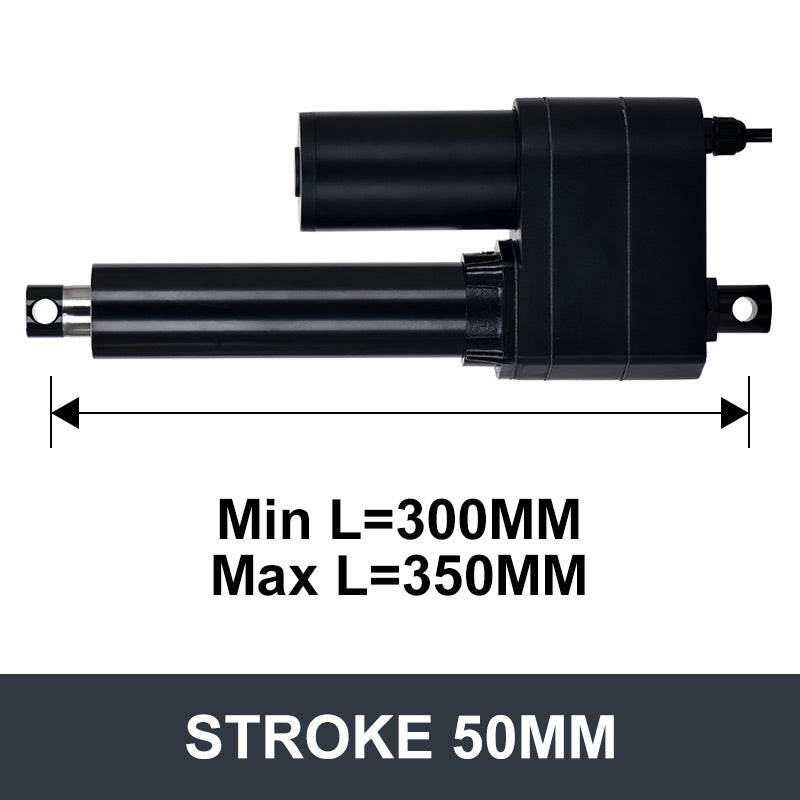

Stroke Length
50mm-2000mm
Motor Power
240W
Operating Temperature
-20°C~+65°C
Limit Switches
Built-in
Material
304 Stainless Steel and Aluminum
Operating Frequency
10% continuous work for 2 minutes
Protection Class
IP65
Color
Black
Mechanical Life
More than 30,000 times

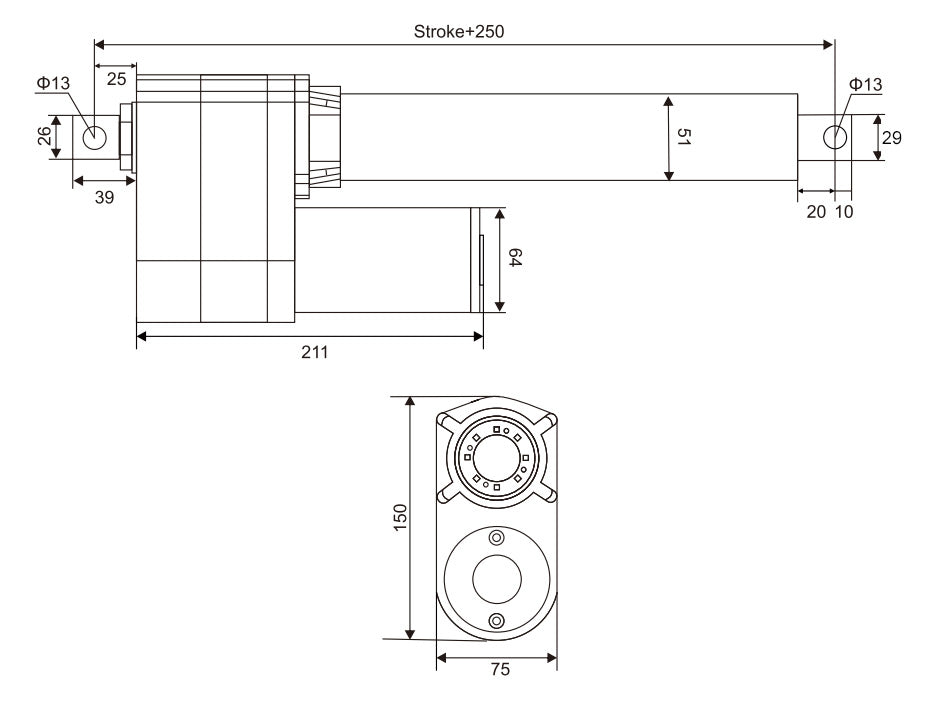

OUTLINE DIMENSION DRAWING
