Electric Linear Motion Actuator 24V DC Motor 150N 33LB Load - DHLA45-20
$40.00
Note: The stroke can be customized such as 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC24~32V Load Push Capacity (N) 150 100 40 No-Load Speed (MM/S) 4 10 15 Load Speed (MM/S) 3 6 10 No-Load Current (A) 0.06 0.05 0.05 Load Current (A) 0.25 0.18...
Note: The stroke can be customized such as 70MM, etc., And it will take 3-7 days.
TECHNICAL PARAMETERS
| Voltage | DC24~32V | ||
| Load Push Capacity (N) | 150 | 100 | 40 |
| No-Load Speed (MM/S) | 4 | 10 | 15 |
| Load Speed (MM/S) | 3 | 6 | 10 |
| No-Load Current (A) | 0.06 | 0.05 | 0.05 |
| Load Current (A) | 0.25 | 0.18 | 0.2 |

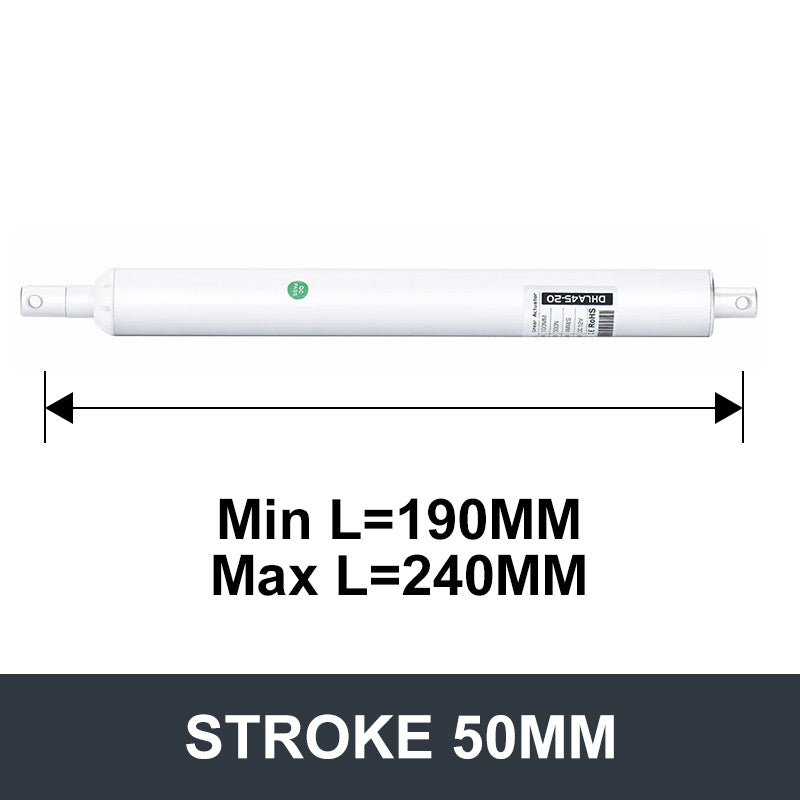

| Stroke Length | 50mm-400mm | ||
| Material | Aluminum | ||
| Operating Temperature | -10°C~+60°C | ||

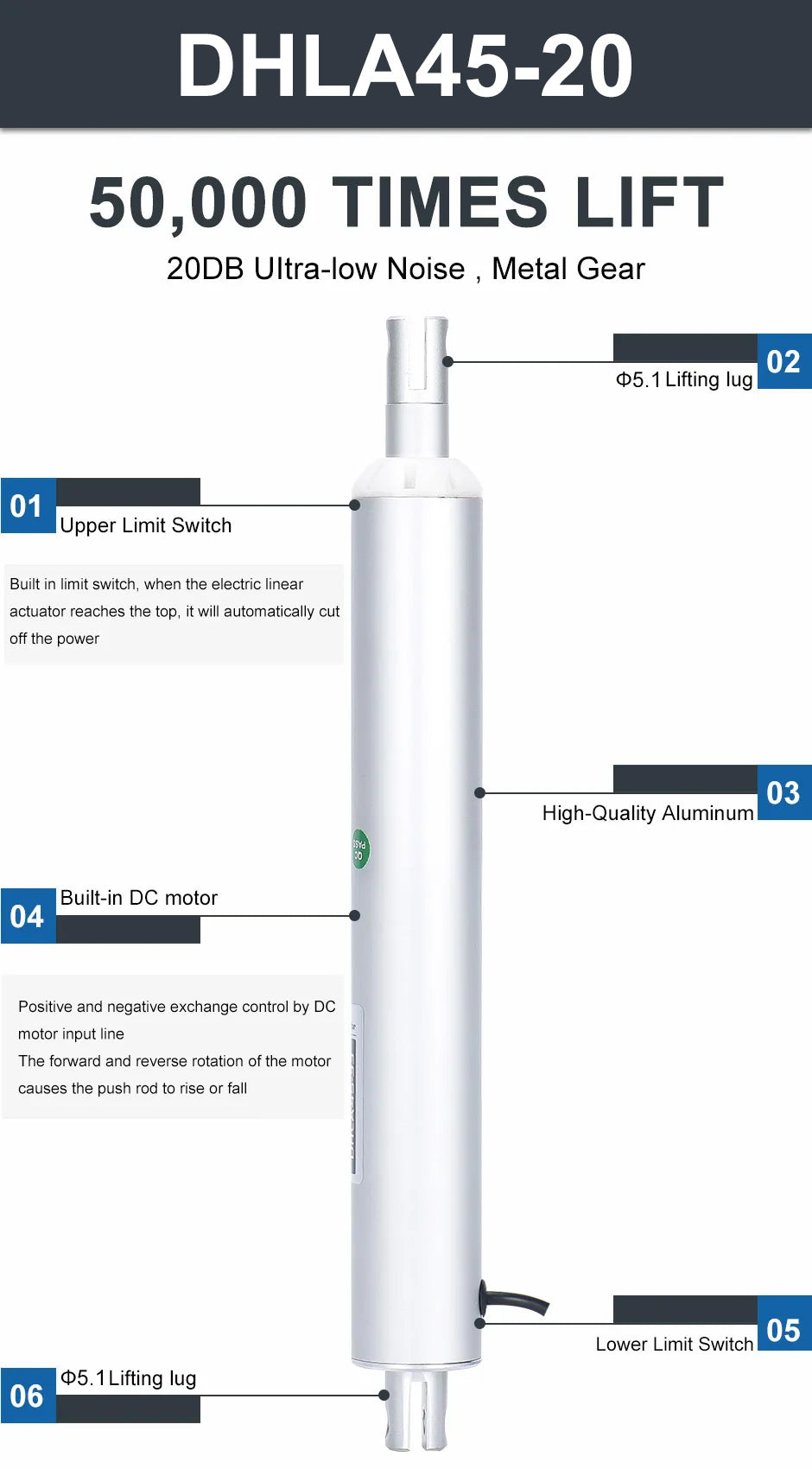

| Limit Switches | Built-in | ||
| IP Grade | IP65 | ||
| Noise | <35dB | ||
| Operating Frequency | 10% max 2min. continuous use | ||
| Inner Tube | Aluminum tube | ||
| Lead screw Type | Type T | ||
| Mechanical Life | More than 50,000 times | ||
OUTLINE DIMENSION DRAWING
