Electric Linear Motion Actuator 12V DC Motor 3000N 660LB Load - DHLA45-45
$50.00
Note: The stroke can be customized such as 650, 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC12V Load Push(N) 3000 1500 1200 800 No-Load Speed(MM/S) 2 4 6 8 Load Speed(MM/S) 1.5 3.5 4.5 6 No-Load Current (A) 0.4 0.66 0.6 0.6 Load Current (A) 4...
Note: The stroke can be customized such as 650, 70MM, etc., And it will take 3-7 days.
TECHNICAL PARAMETERS
|
Voltage
|
DC12V
|
|||
|
Load Push(N)
|
3000 | 1500 | 1200 | 800 |
|
No-Load Speed(MM/S)
|
2 | 4 | 6 | 8 |
|
Load Speed(MM/S)
|
1.5 | 3.5 | 4.5 | 6 |
|
No-Load Current (A)
|
0.4 | 0.66 | 0.6 | 0.6 |
|
Load Current (A)
|
4 | 3.5 | 3 | 3 |
|

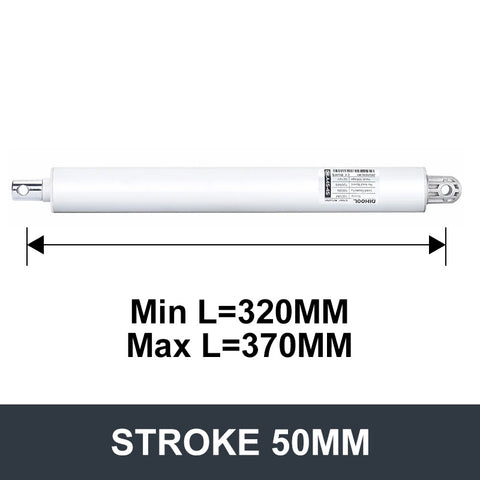

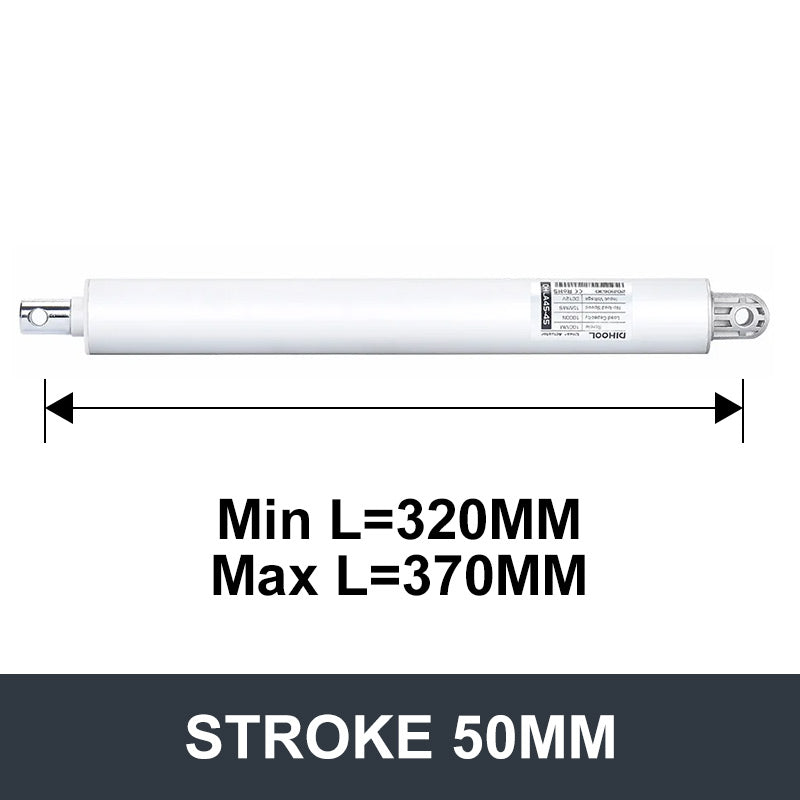

Stroke Length
|
50mm-800mm
|
|||
|
Material
|
Aluminum
|
|||
|
Operating Temperature
|
-10°C~+60°C
|
|||
|
Limit Switches
|
Built-in
|
|||
|
IP Grade
|
IP65
|
|||
|
Noise
|
<35dB
|
|||
|
Operating Frequency
|
10% max 2min. continuous use
|
|||
|
Inner Tube
|
Aluminum tube
|
|||
|
Lead screw Type
|
Type T
|
|||
|
Mechanical Life
|
More than 50,000 times
|
|||
OUTLINE DIMENSION DRAWING
