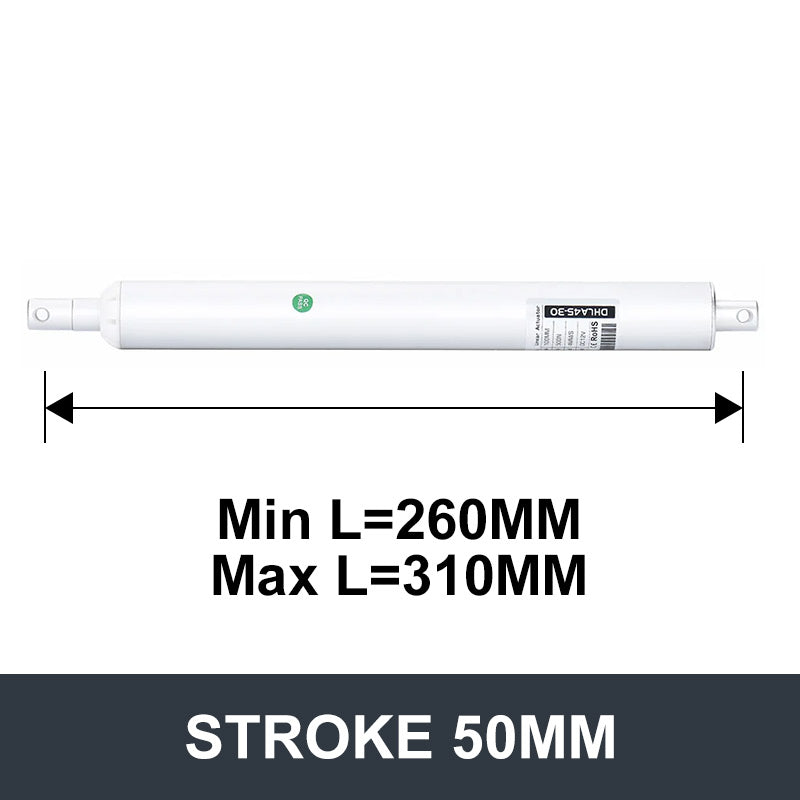

Electric Linear Motion Actuator 12V DC Motor 200N 44LB Load - DHLA45-30
$37.00
Note: The stroke can be customized such as 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC12V Load Push(N) 200 120 70 No-Load Speed(MM/S) 6 12 20 Load Speed(MM/S) 4 8 15 No-Load Current (A) 0.2 0.2 0.2 Load Current (A) 0.5 0.5 0.5 Stroke Length 50mm-600mm...
Note: The stroke can be customized such as 70MM, etc., And it will take 3-7 days.
TECHNICAL PARAMETERS
|
Voltage
|
DC12V
|
||
|
Load Push(N)
|
200 | 120 | 70 |
|
No-Load Speed(MM/S)
|
6 | 12 | 20 |
|
Load Speed(MM/S)
|
4 | 8 | 15 |
|
No-Load Current (A)
|
0.2 | 0.2 | 0.2 |
|
Load Current (A)
|
0.5 | 0.5 | 0.5 |
|
Stroke Length
|
50mm-600mm
|
||
|
Material
|
Aluminum
|
||
|
Operating Temperature
|
-10°C~+60°C
|
||
|
Limit Switches
|
Built-in
|
||
|
IP Grade
|
IP65
|
||
|
Noise
|
<35dB
|
||
|
Operating Frequency
|
10% max 2min. continuous use
|
||
|
Inner Tube
|
Aluminum tube
|
||
|
Lead screw Type
|
Type T
|
||
|
Mechanical Life
|
More than 50,000 times
|
||
OUTLINE DIMENSION DRAWING
