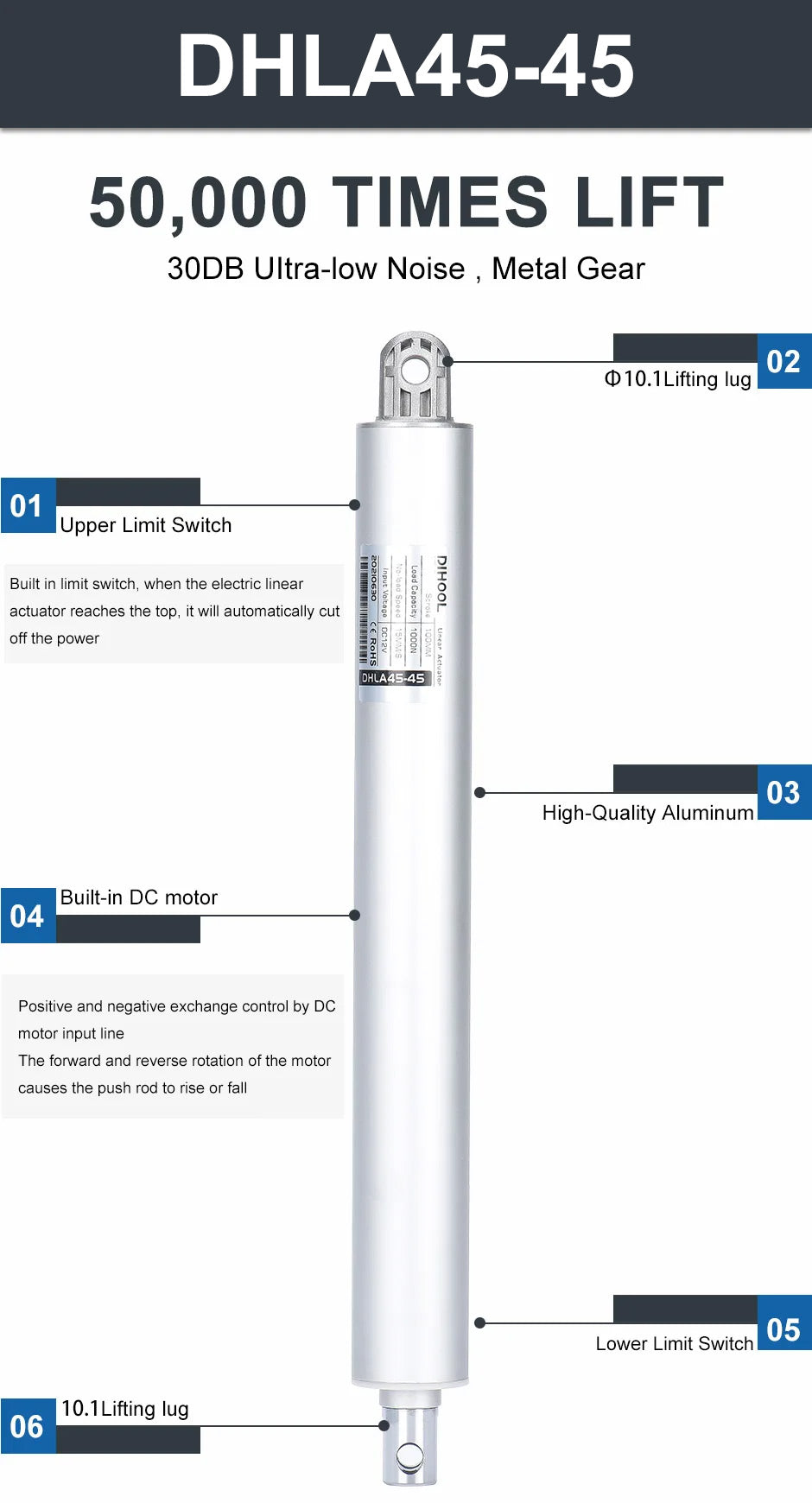

Electric Linear Motion Actuator 24V DC Motor 3500N 770LB Load - DHLA45-45
$50.00
Note: The stroke can be customized such as 650, 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC24~32V Load Push Capacity (N) 3500 2000 1500 1000 No-Load Speed (MM/S) 3 5 7.5 10 Load Speed (MM/S) 1.7 3.5 4.5 6 No-Load Current (A) 0.2 0.4 0.35 0.35...
Note: The stroke can be customized such as 650, 70MM, etc., And it will take 3-7 days.
TECHNICAL PARAMETERS
| Voltage | DC24~32V | |||
| Load Push Capacity (N) | 3500 | 2000 | 1500 | 1000 |
| No-Load Speed (MM/S) | 3 | 5 | 7.5 | 10 |
| Load Speed (MM/S) | 1.7 | 3.5 | 4.5 | 6 |
| No-Load Current (A) | 0.2 | 0.4 | 0.35 | 0.35 |
| Load Current (A) | 2.5 | 2.3 | 2 | 2 |

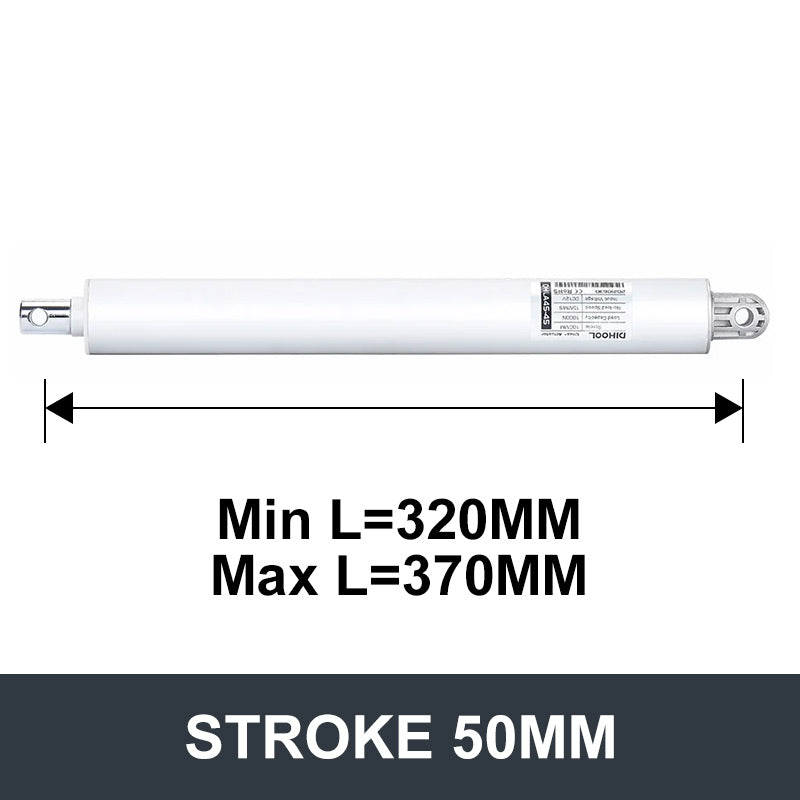

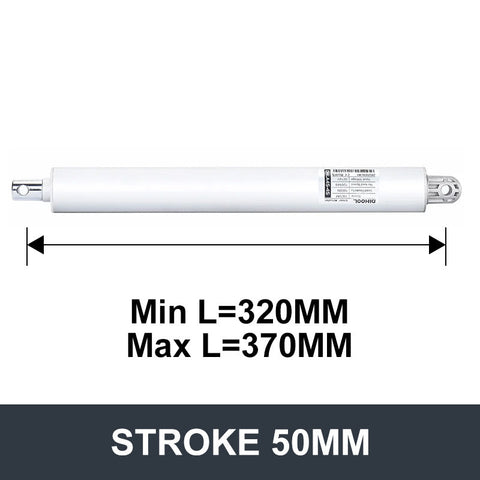

| Stroke Length | 50mm-800mm | |||
| Material | Aluminum | |||
| Operating Temperature | -10°C~+60°C | |||
| Limit Switches | Built-in | |||
| IP Grade | IP65 | |||
| Noise | <35dB | |||
| Operating Frequency | 10% max 2min. continuous use | |||
| Inner Tube | Aluminum tube | |||
| Lead screw Type | Type T | |||
| Mechanical Life | More than 50,000 times | |||
OUTLINE DIMENSION DRAWING
