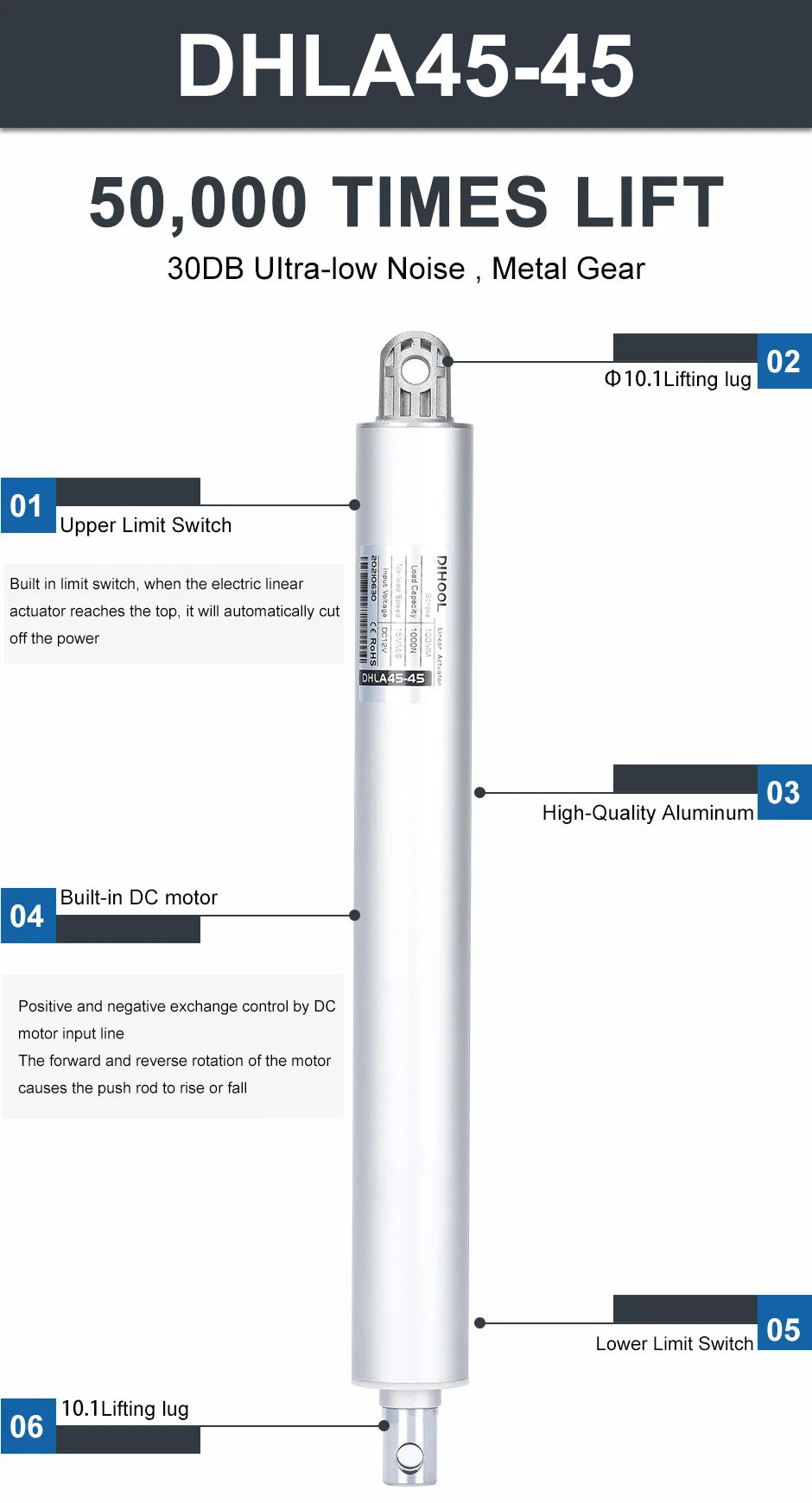

Electric Linear Motion Actuator 24V DC Motor 3500N 770LB Load - DHLA45-45
$50.00
Note: The stroke can be customized such as 650, 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC24V Load Push(N) 3500 2000 1500 1000 No-Load Speed(MM/S) 3 5 7.5 10 Load Speed(MM/S) 1.7 3.5 4.5 6 No-Load Current (A) 0.2 0.4 0.35 0.35 Load Current (A) 2.5...
Note: The stroke can be customized such as 650, 70MM, etc., And it will take 3-7 days.
TECHNICAL PARAMETERS
|
Voltage
|
DC24V
|
|||
|
Load Push(N)
|
3500 | 2000 | 1500 | 1000 |
|
No-Load Speed(MM/S)
|
3 |
5 |
7.5 |
10 |
|
Load Speed(MM/S)
|
1.7 | 3.5 | 4.5 | 6 |
|
No-Load Current (A)
|
0.2 | 0.4 | 0.35 | 0.35 |
|
Load Current (A)
|
2.5 |
2.3 |
2 |
2 |
|
Stroke Length
|
50mm-800mm
|
|||
|
Material
|
Aluminum
|
|||
|
Operating Temperature
|
-10°C~+60°C
|
|||
|
Limit Switches
|
Built-in
|
|||
|
IP Grade
|
IP65
|
|||
|
Noise
|
<35dB
|
|||
|
Operating Frequency
|
10% max 2min. continuous use
|
|||
|
Inner Tube
|
Aluminum tube
|
|||
|
Lead screw Type
|
Type T
|
|||
|
Mechanical Life
|
More than 50,000 times
|
|||

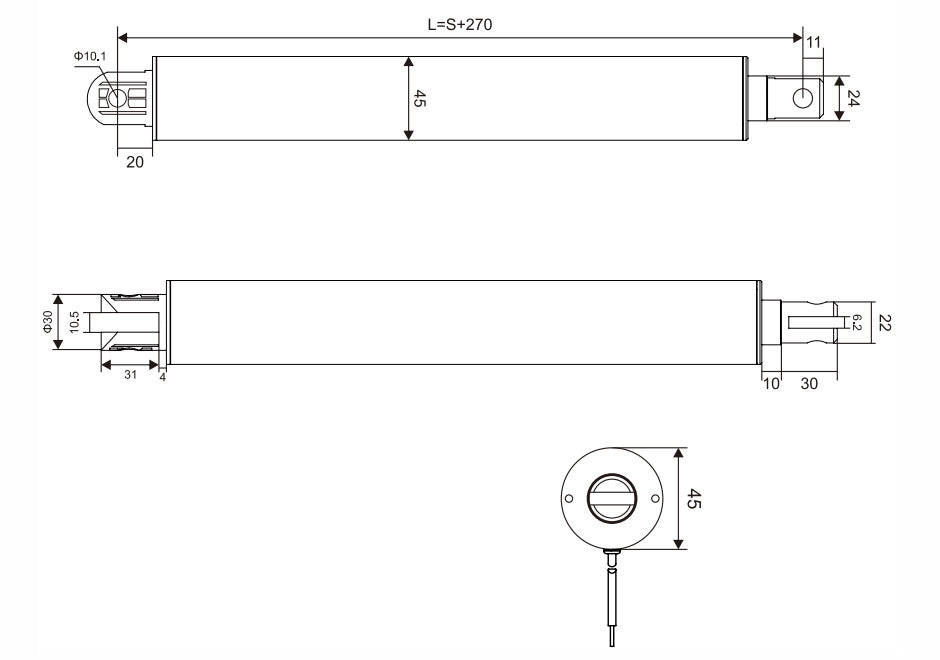

OUTLINE DIMENSION DRAWING
