Electric Linear Motion Actuator 12V DC Motor 200N 44LB Load - DHLA45-30
$37.00
Note: The stroke can be customized such as 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC12~19V Load Push Capacity (N) 200 120 70 No-Load Speed (MM/S) 6 12 20 Load Speed (MM/S) 4 8 15 No-Load Current (A) 0.2 0.2 0.2 Load Current (A) 0.5 0.5...
Note: The stroke can be customized such as 70MM, etc., And it will take 3-7 days.
TECHNICAL PARAMETERS
| Voltage | DC12~19V | ||
| Load Push Capacity (N) | 200 | 120 | 70 |
| No-Load Speed (MM/S) | 6 | 12 | 20 |
| Load Speed (MM/S) | 4 | 8 | 15 |
| No-Load Current (A) | 0.2 | 0.2 | 0.2 |
| Load Current (A) | 0.5 | 0.5 | 0.5 |
| Stroke Length | 10mm-600mm | ||
| Material | Aluminum | ||
| Operating Temperature | -10°C~+60°C | ||
| Limit Switches | Built-in | ||
| IP Grade | IP65 | ||
| Noise | <35dB | ||
| Operating Frequency | 10% max 2min. continuous use | ||
| Inner Tube | Aluminum tube | ||
| Lead screw Type | Type T | ||
| Mechanical Life | More than 50,000 times | ||

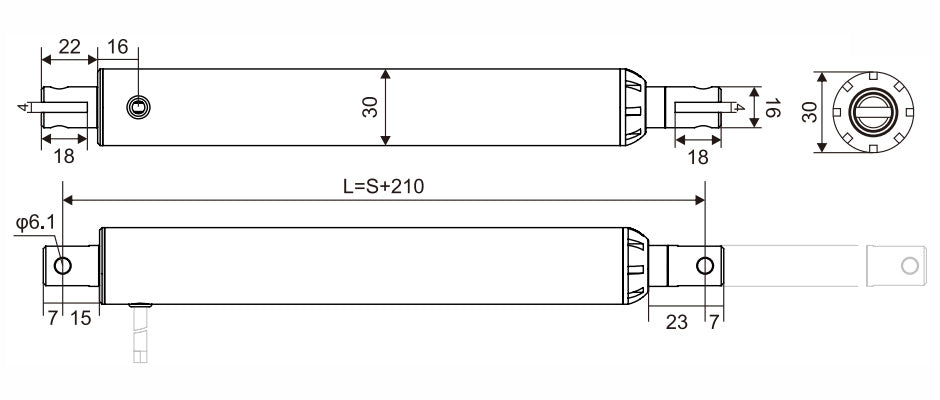

OUTLINE DIMENSION DRAWING
