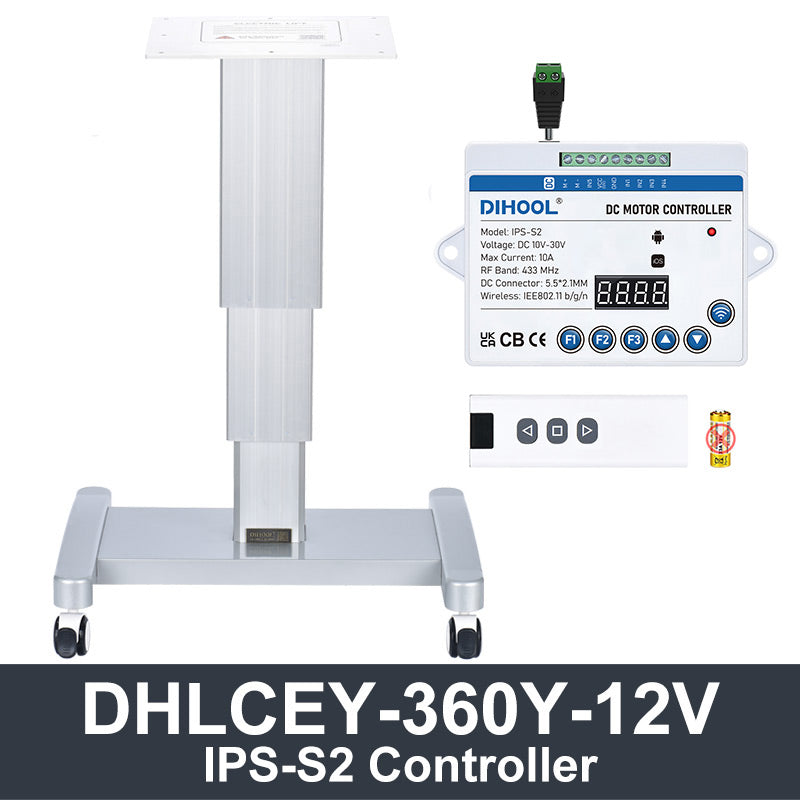

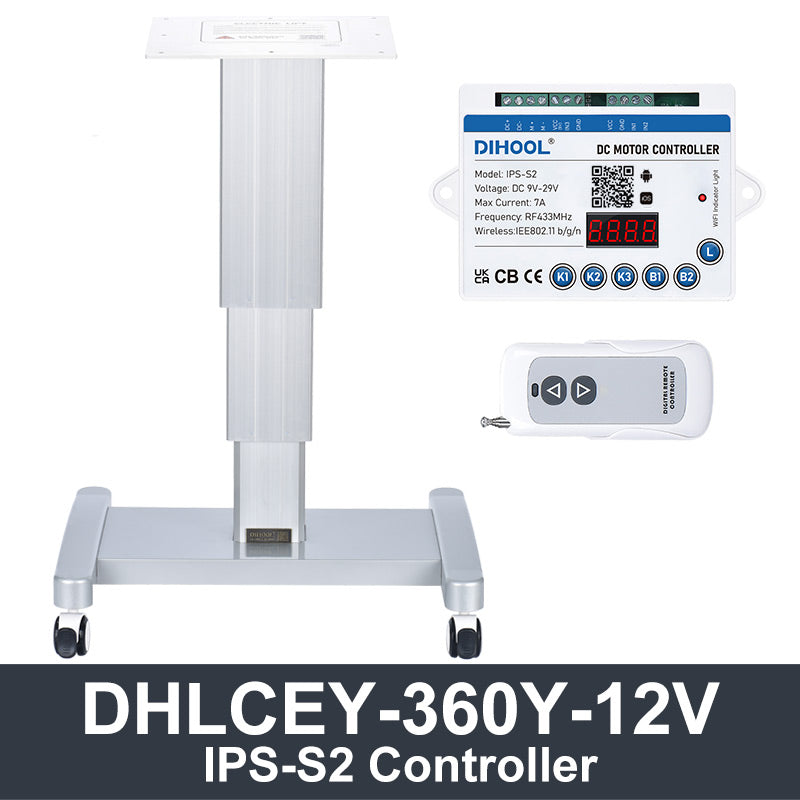

Movable Tatami 3 Stage Electric Mobile Lifting Column DC 12V/24V/Hall Motor 1200N 264LB Load - DHLCEY-360Y

TECHNICAL PARAMETERS Model DHLCE260Y DHLCE310Y DHLCE360Y DHLCE410Y Panel Size 160*160 160*160 160*160 152*152 Initial Height H (MM) 350 400 450 500 Final Height FH (MM) 640 760 890 800 Stroke Length S (MM) 290 360 440 300 Section 3 3 3 2 Voltage DC24~32V / DC12~19V / Hall 24-32V Speed...
MODEL
SPEED
-
+
$230.00

DIHOOL

100 In Stock

TECHNICAL PARAMETERS

Model
DHLCE260Y DHLCE310Y DHLCE360Y DHLCE410Y
Panel Size
160*160 160*160 160*160 152*152
Initial Height H (MM)
350 400 450 500
Final Height FH (MM)
640 760 890 800
Stroke Length S (MM)
290 360 440 300
Section
3 3 3 2


Voltage
DC24~32V / DC12~19V / Hall 24-32V
Speed
15V-5MM/S
30V-5MM/S
30V-10MM/S
Max Load Capacity
80KG 120KG 80KG
Operating Temperature
0°C~+40°C
Limit Switches
Built-in
Operating Frequency
10% Work System, Maximum 1 Hour Continue Working
Color
Silver White
Material
Aluminum Body, Iron Panel
Note
*Other specifications, aluminum shell color and connection panel size can be customized.

OUTLINE DIMENSION DRAWING
