Tatami Lifting Column Aluminum Plate 24V DC Motor 1600N 352LB Load - DHLCE-AL

TECHNICAL PARAMETERS Model DHLCE270A DHLCE320A DHLCE370A DHLCE420A Panel Size 200*200 200*200 200*200 200*200 Model DHLCE270B DHLCE320B DHLCE370B DHLCE420B Panel Size 160*160 160*160 160*160 152*152 Initial Height H (MM) 275 325 370 430 Final Height FH (MM) 550 700 800 730 Stroke Length S (MM) 275 375 430 300 Section 3...
SIZE
SPEED
-
+
$142.00

DIHOOL

50 In Stock

TECHNICAL PARAMETERS

Model
DHLCE270A DHLCE320A DHLCE370A DHLCE420A
Panel Size
200*200 200*200 200*200 200*200
Model
DHLCE270B DHLCE320B DHLCE370B DHLCE420B
Panel Size
160*160 160*160 160*160 152*152
Initial Height H (MM)
275 325 370 430
Final Height FH (MM)
550 700 800 730
Stroke Length S (MM)
275 375 430 300
Section
3 3 3 2

Voltage
DC24V
Speed (MM/S)
5 8 12
Load Push Capacity (N)
1600 1000 600
Load Pull Capacity (N)
1600 1000 600
Operating Temperature
-15°C~+65°C
Limit Switches
Built-in
Operating Frequency
10% Work System, Maximum 1 Hour Continue Working
Color
Silver White
Material
Aluminum Body, Iron Panel
Note
*Other specifications, aluminum shell color and connection panel size can be customized.

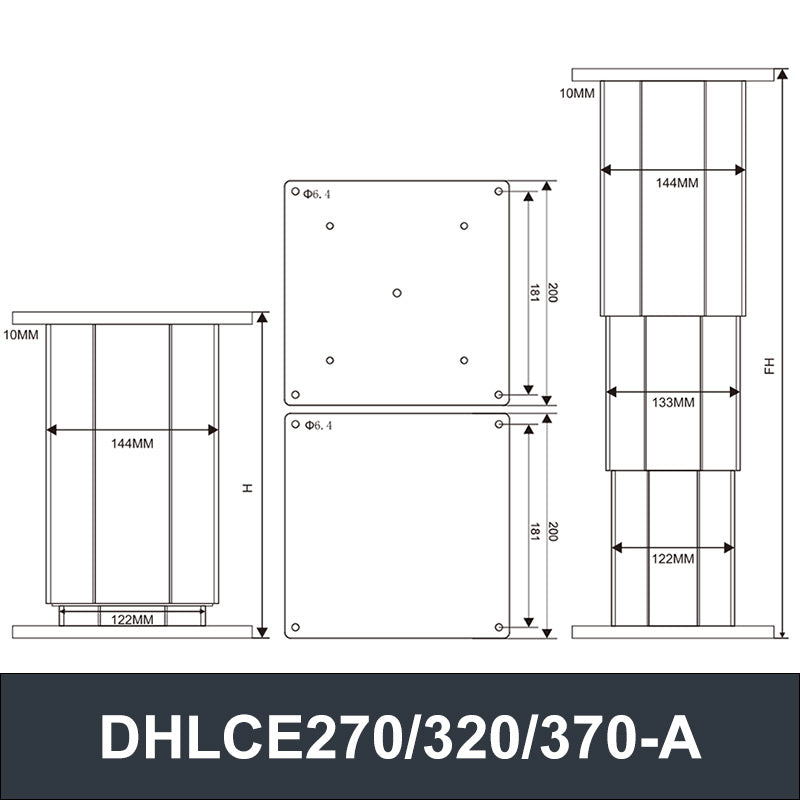

OUTLINE DIMENSION DRAWING
