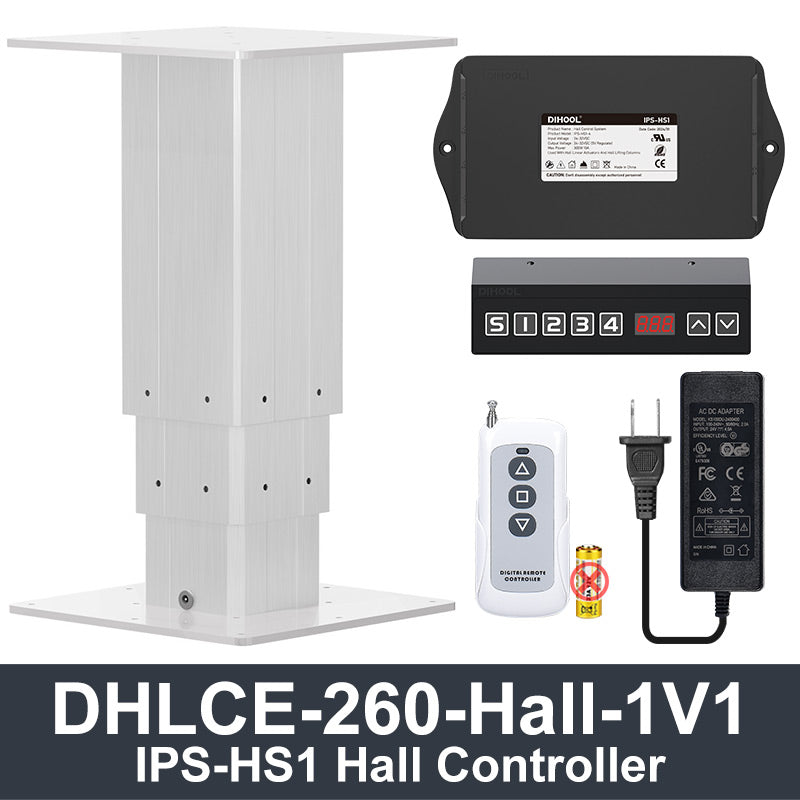

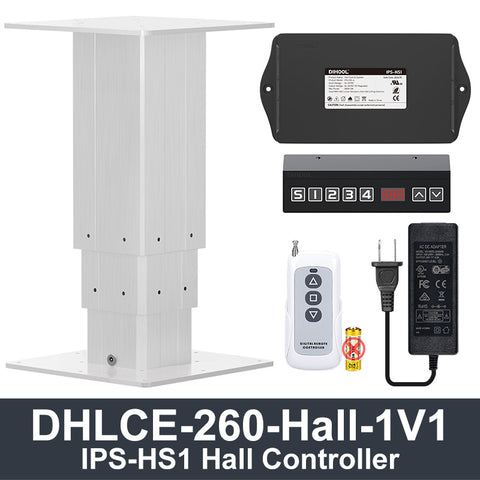

DHLCE-IR 3 Stage Electric Lifting Column - IR Panel Hall Controller 1000N 220LB Load - DHLCE-260

TECHNICAL PARAMETERS Model DHLCE260A DHLCE310A DHLCE360A DHLCE410A Panel Size 200*200 200*200 200*200 200*200 Model DHLCE260B DHLCE310B DHLCE360B DHLCE410B Panel Size 160*160 160*160 160*160 152*152 Initial Height H (MM) 265 315 360 420 Final Height FH (MM) 540 690 790 720 Stroke Length S (MM) 275 375 430 300 Section 3...
Model
Speed
-
+
$220.00

DIHOOL

100 In Stock

TECHNICAL PARAMETERS

Model
DHLCE260A DHLCE310A DHLCE360A DHLCE410A
Panel Size
200*200 200*200 200*200 200*200
Model
DHLCE260B DHLCE310B DHLCE360B DHLCE410B
Panel Size
160*160 160*160 160*160 152*152
Initial Height H (MM)
265 315 360 420
Final Height FH (MM)
540 690 790 720
Stroke Length S (MM)
275 375 430 300
Section
3 3 3 2


Voltage
DC24~32V / DC12~19V / Hall
No-Load Speed
15V-4.5MM/S 27V-4.5MM/S 27V-9MM/S
Max Load Capacity
80KG 100KG 70KG
Operating Temperature
-15°C~+65°C
Limit Switches
Built-in
Operating Frequency
10% Work System, Maximum 1 Hour Continue Working
Color
Silver White
Material
Aluminum Body, Iron Panel
Note
Other specifications, aluminum shell color and connection panel size can be customized.
The Max Load of 260A/260B DC30V-5MM/S is less than 100KG
Will Cause Abnormal Noise If Overload

OUTLINE DIMENSION DRAWING
