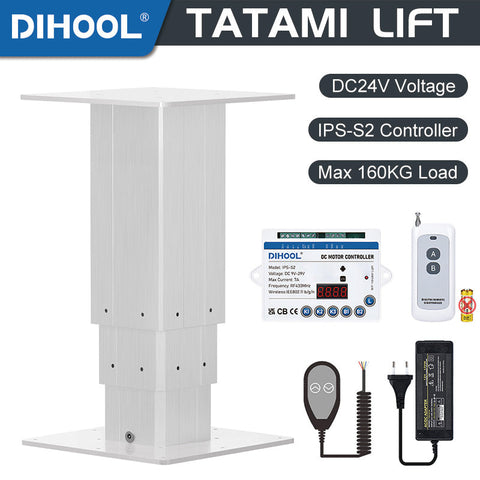

Tatami Lifting Column Iron Plate 24V DC Motor 1600N 352LB Load Hand Control - DHLCE-S2

TECHNICAL PARAMETERS Model DHLCE260A DHLCE310A DHLCE360A DHLCE410A Panel Size 200*200 200*200 200*200 200*200 Model DHLCE260B DHLCE310B DHLCE360B DHLCE410B Panel Size 160*160 160*160 160*160 152*152 Initial Height H (MM) 265 315 360 420 Final Height FH (MM) 540 690 790 720 Stroke Length S (MM) 275 375 430 300 Section 3...
SIZE
SPEED
-
+
$75.00

DIHOOL

1 In Stock

TECHNICAL PARAMETERS

Model
DHLCE260A DHLCE310A DHLCE360A DHLCE410A
Panel Size
200*200 200*200 200*200 200*200
Model
DHLCE260B DHLCE310B DHLCE360B DHLCE410B
Panel Size
160*160 160*160 160*160 152*152
Initial Height H (MM)
265 315 360 420
Final Height FH (MM)
540 690 790 720
Stroke Length S (MM)
275 375 430 300
Section
3 3 3 2

Voltage
DC24V
Speed (MM/S)
4.3
8 12
Load Push Capacity (N)
1600 1000 600
Load Pull Capacity (N)
1600 1000 600
Operating Temperature
-15°C~+65°C
Limit Switches
Built-in
Operating Frequency
10% Work System, Maximum 1 Hour Continue Working
Color
Silver White
Material
Aluminum Body, Iron Panel
Note
*Other specifications, aluminum shell color and connection panel size can be customized.

OUTLINE DIMENSION DRAWING
