Electric Lifting Column U-Type 24V-32V DC Motor 800N 176LB Load - DHLC800-U

TECHNICAL PARAMETERS Model 500U 650U Initial Height (MM) 660 570 Final Height (MM) 1160 1220 Stroke Length (MM) 500 650 Section 2 3 Input Voltage DC24V-DC32V Load Pull Capacity (N) 800N / 1000N 1200N Load Push Capacity (N) 800N / 1000N 1200N Self-locking Capacity (N) 800N / 1000N 1200N Max...
MODEL
Controller
-
+
$120.00

DIHOOL

50 In Stock

TECHNICAL PARAMETERS

Model
500U 650U
Initial Height (MM)
660 570
Final Height (MM)
1160 1220
Stroke Length (MM)
500 650
Section
2 3
Input Voltage
DC24V-DC32V
Load Pull Capacity (N)
800N / 1000N 1200N
Load Push Capacity (N)
800N / 1000N 1200N
Self-locking Capacity (N)
800N / 1000N 1200N
Max Power
55W
No-Load Speed
25MM/S
Color
RAL9005(Black) / RAL7045(Gray) / RAL9016(White)
Operating Temperature
-10°C~+60°C
Optional Features
Hall Sensor
Limit Switches
None
Operating Frequency
10% Work System, Maximum 1 Hour Continue Working
Install Screws
M6*16MM, If the Screw is too long, it will damage the motor.
Rated Working Capacity
80% of Max Load, Unable to maintain Max load operation for a long time.
Note
2 Columns lifting system and 4 Columns lifting system,
Any columns cannot exceed 200KG load and needs to be kept fixed.

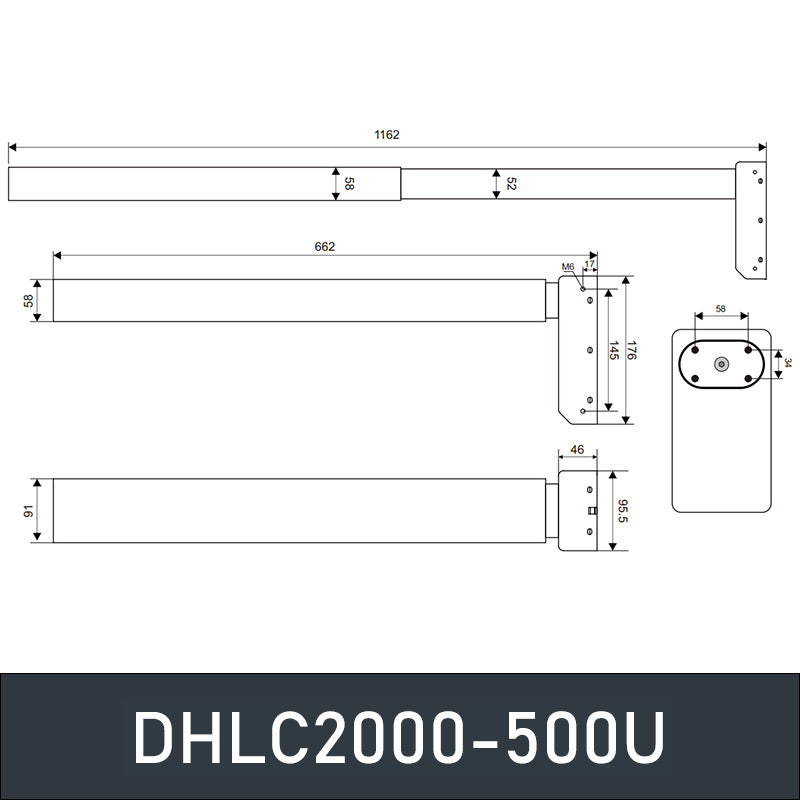

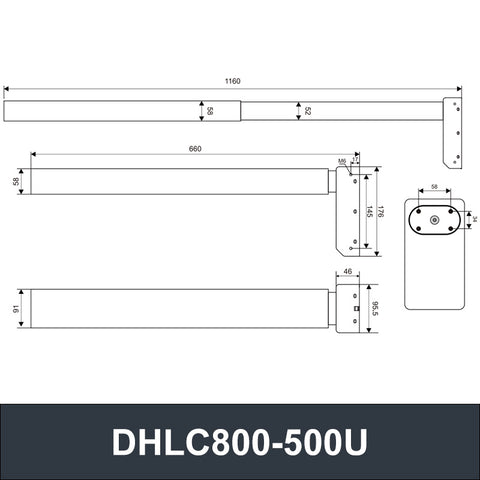

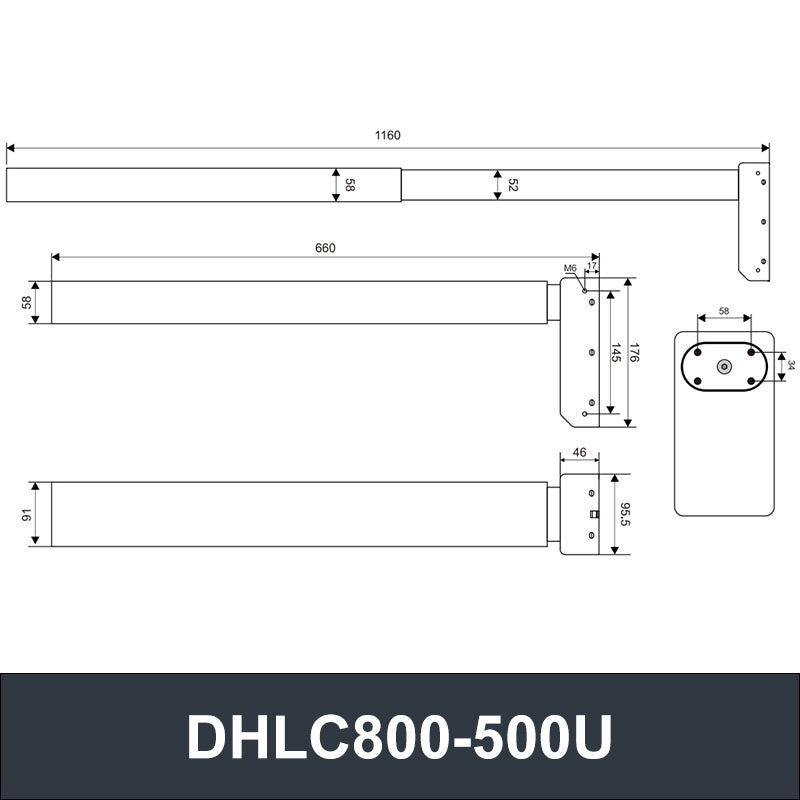

OUTLINE DIMENSION DRAWING
