Electric Lifting Column 24V-32V DC Motor 2000N 440LB Load - DHLC2000-Hall-HS1-1V1
$131.20
PRODUCT DESCRIPTION DHLC2000 electric lifting column, maximum load 150kg, No-load speed 14MM/S, built-in Hall sensor, need to be controlled by Hall controller. The electric lifting column is divided into 2 and 3 columns, and the stroke is divided into 460MM/600MM/800MM/1100MM/1400MM. Suitable for furniture desks, industrial lift tables, photography tables, laboratory...
PRODUCT DESCRIPTION
DHLC2000 electric lifting column, maximum load 150kg, No-load speed 14MM/S, built-in Hall sensor, need to be controlled by Hall controller. The electric lifting column is divided into 2 and 3 columns, and the stroke is divided into 460MM/600MM/800MM/1100MM/1400MM. Suitable for furniture desks, industrial lift tables, photography tables, laboratory lift tables, TV lifts and other places
TECHNICAL PARAMETERS
|
Model
|
460P | 600P | 800L | 1100L | 1400L |
|
Initial Height (MM)
|
660 | 570 | 730 | 870 | 1000 |
|
Final Height (MM)
|
1120 | 1170 | 1530 | 1970 | 2400 |
|
Stroke Length (MM)
|
460 | 600 | 800 | 1100 | 1400 |
|
Section
|
2 | 3 | 3 | 3 | 3 |
|
Input Voltage
|
DC20V-DC32V | ||||
|
Load Capacity (N)
|
150KG/300LB / 70KG/154LB | ||||
|
Noise
|
25dB / 35dB | ||||
|
Max Power
|
120W / 120W | ||||
|
No-load Speed
|
18MM/S | ||||
|
Color
|
RAL9005(Black) / RAL7045(Gray) / RAL901(White）
|
||||
|
Operating Temperature
|
-10°C~+60°C
|
||||
|
Optional Features
|
Hall Sensor
|
||||
|
Limit Switches
|
None
|
||||
|
Operating Frequency
|
10% Work System, Maximum 1 Hour Continue Working
|
||||
|
Install Screws
|
M6*16MM, If the Screw is too long,
it will damage the motor.
|
||||
|
Rated Working Capacity
|
80% of Max Load, Unable to maintain Max load operation for a long time.
|
||||
|
Note
|
2 Columns lifting system and 4 Columns lifting system,Any columns cannot exceed 200KG load and needs to be kept fixed.
Ceiling Installation Max Load Capacity≤120KG
|
||||

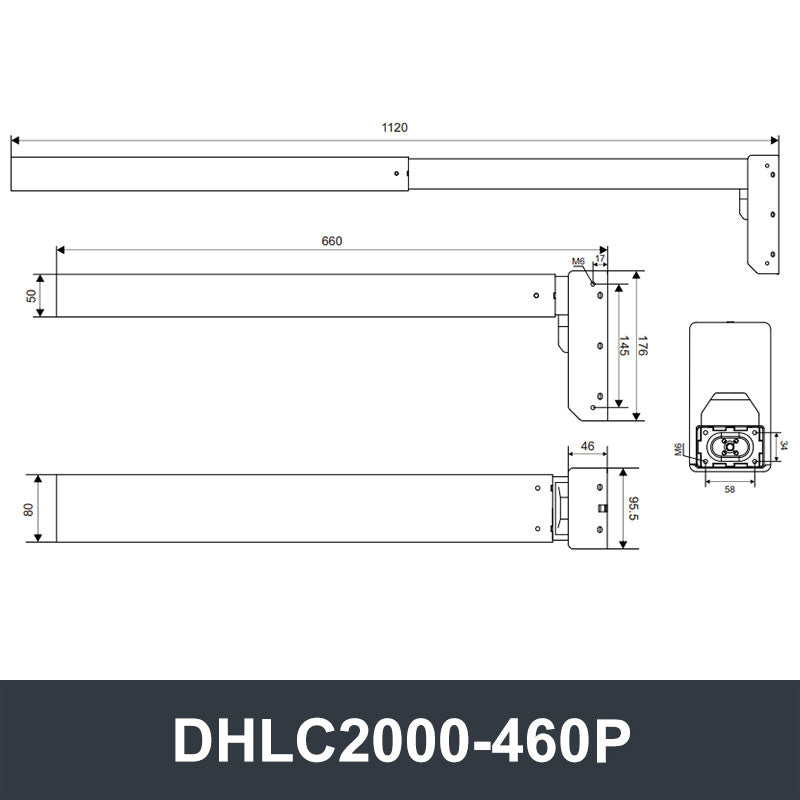

OUTLINE DIMENSION DRAWING
