Electric Lifting Column 24V-32V DC Motor 2000N 440LB Load 1V2 - DHLC2000-Hall-HS1-1V2
$400.00
TECHNICAL PARAMETERS Model 450L 600P 800L 1100L 1400L Initial Height (MM) 660 560 710 850 980 Final Height (MM) 1110 1160 1510 1950 2380 Stroke Length (MM) 450 600 800 1100 1400 Section 2 3 3 3 3 Input Voltage DC24V-DC32V Load Capacity (N) Max 200KG Max 140KG 1S /...
TECHNICAL PARAMETERS
|
Model
|
450L | 600P | 800L | 1100L | 1400L |
|
Initial Height (MM)
|
660 | 560 | 710 | 850 | 980 |
|
Final Height (MM)
|
1110 | 1160 | 1510 | 1950 | 2380 |
|
Stroke Length (MM)
|
450 | 600 | 800 | 1100 | 1400 |
|
Section
|
2 | 3 | 3 | 3 | 3 |
|
Input Voltage
|
DC24V-DC32V | ||||
|
Load Capacity (N)
|
Max 200KG | Max 140KG 1S / 200KG 2S / 300KG 4S | |||
|
Noise
|
30dB
|
||||
|
Max Power
|
90W
|
||||
|
Max Speed
|
18MM/S
|
||||
|
Color
|
RAL9005(Black) / RAL7045(Gray) / RAL9016（White）
|
||||
|
Operating Temperature
|
-10°C~+60°C
|
||||
|
Optional Features
|
Hall Sensor
|
||||
|
Limit Switches
|
None
|
||||
|
Operating Frequency
|
10% Work System, Maximum 1 Hour Continue Working
|
||||
|
Install Screws
|
M6*16MM, If the Screw is too long, it will damage the motor.
|
||||
|
Rated Working Capacity
|
80% of Max Load, Unable to maintain Max load operation for a long time.
|
||||
|
Note
|
2 Columns lifting system and 4 Columns lifting system,
Any columns cannot exceed 200KG load and needs to be kept fixed. |
||||

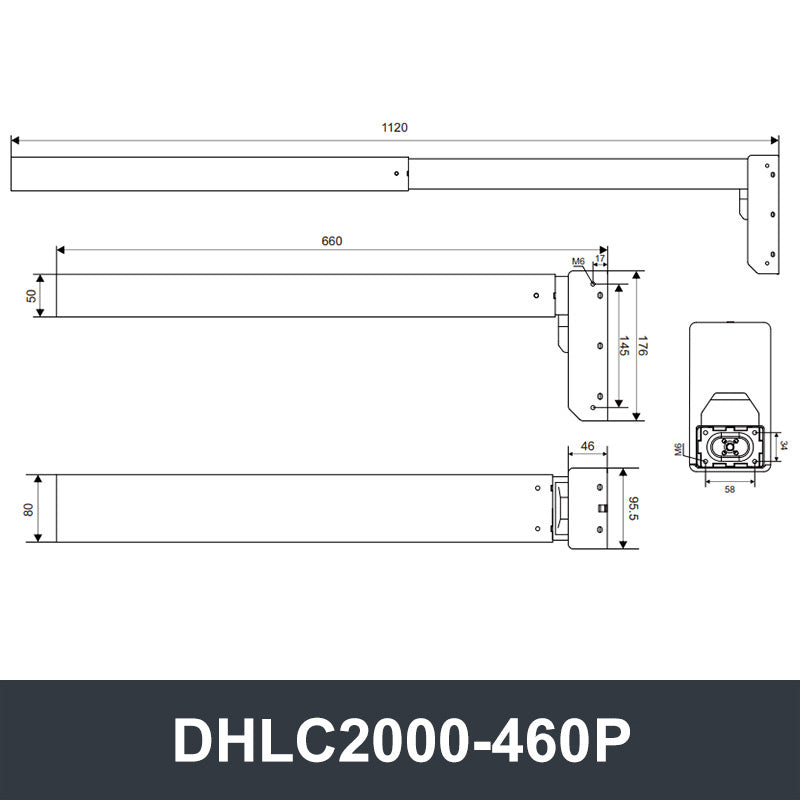

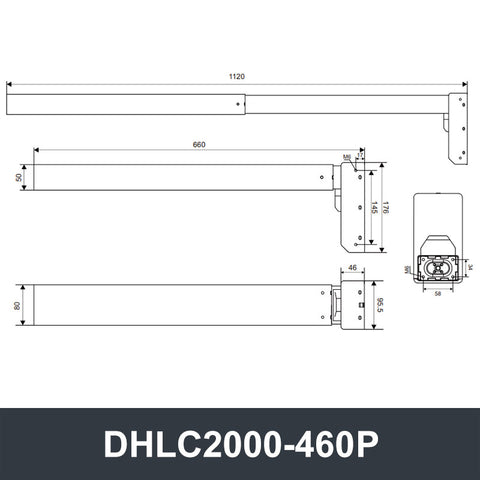

OUTLINE DIMENSION DRAWING
