Electric Lifting Column O-Type 24V-32V DC Motor 1500N 330LB Load - DHLC2000-O
$120.00
TECHNICAL PARAMETERS Model 500O 650O Initial Height (MM) 662 575 Final Height (MM) 1112 1225 Stroke Length (MM) 450 650 Section 2 3 Input Voltage DC24V-DC32V Max Load Capacity 150KG / 70KG Maximum Power 150W / 120W No-load Speed 14MM/S / 40MM/S Noise 25dB / 35dB Color RAL9005(Black) / RAL7045(Gray)...
TECHNICAL PARAMETERS
| Model | 500O | 650O | ||
| Initial Height (MM) | 662 | 575 | ||
| Final Height (MM) | 1112 | 1225 | ||
| Stroke Length (MM) | 450 | 650 | ||
| Section | 2 | 3 | ||
| Input Voltage | DC24V-DC32V | |||
| Max Load Capacity | 150KG / 70KG | |||
| Maximum Power | 150W / 120W | |||
| No-load Speed | 14MM/S / 40MM/S | |||
| Noise | 25dB / 35dB | |||
| Color | RAL9005(Black) / RAL7045(Gray) / RAL9016（White） | |||
| Operating Temperature | -10°C~+60°C | |||
| Optional Features | Hall Sensor | |||
| Limit Switches | None | |||
| Operating Frequency | 10% Work System, Maximum 20 Minutes Continue Working | |||
| Install Screws | M6*16MM, If the Screw is too long, it will damage the motor. | |||
| Rated Working Capacity | 80% of Max Load, Unable to maintain Max load operation for a long time. | |||
| Note | 2 Columns lifting system and 4 Columns lifting system, Any columns cannot exceed 200KG load and needs to be kept fixed. |
|||

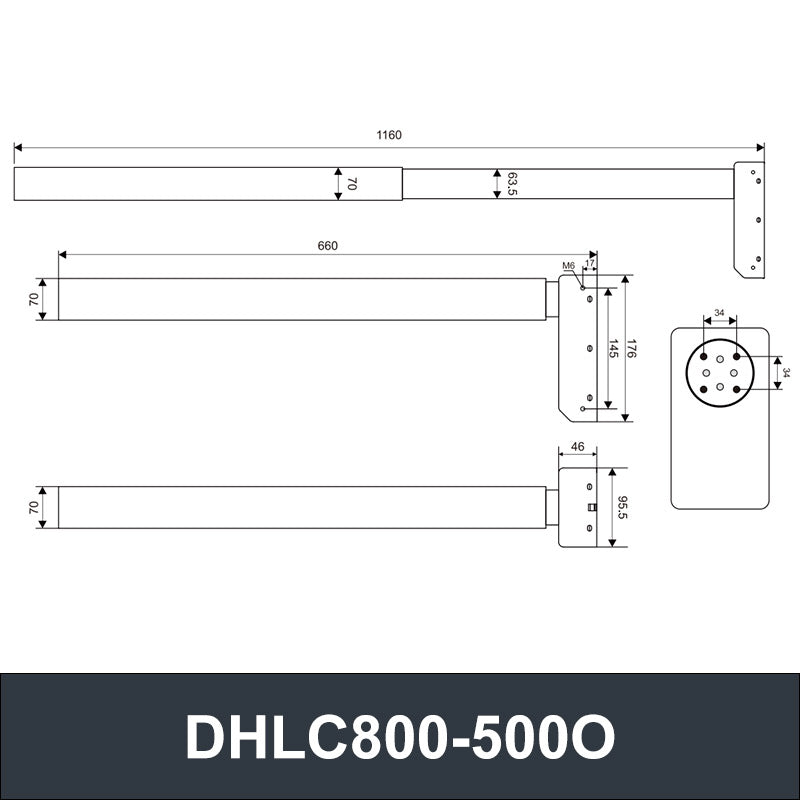

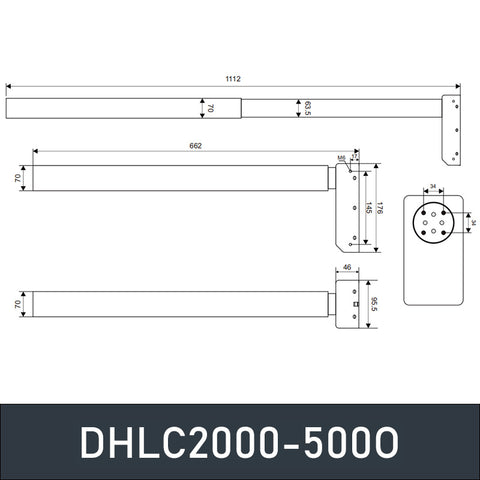

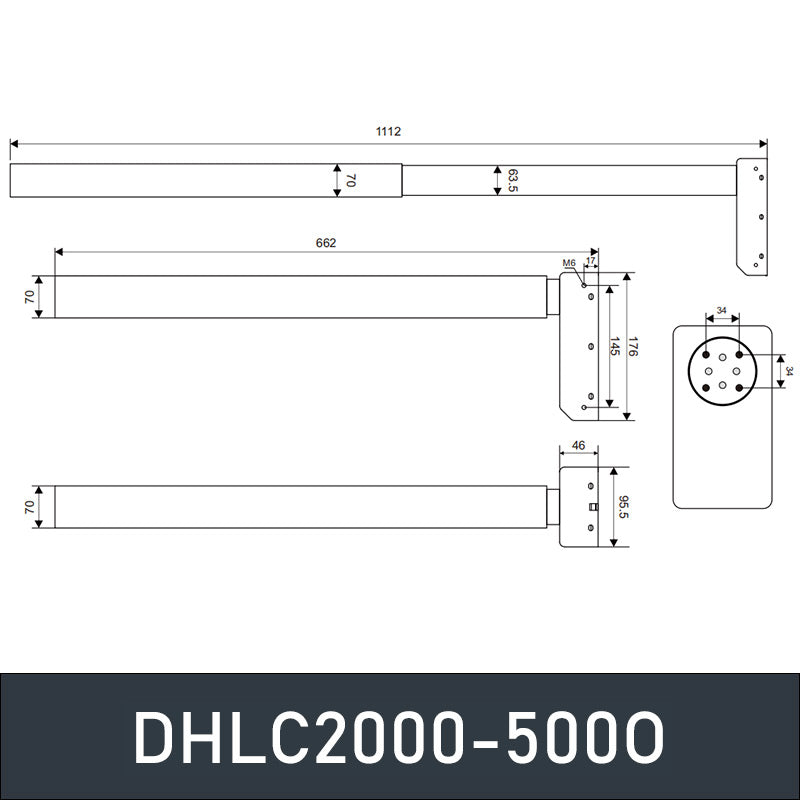

OUTLINE DIMENSION DRAWING
