HAPV-500V

$48.00

INTRODUCTION HAPV PV Combiner Box is used to connect photovoltaic solar panel arrays and inverters. The maximum input voltage is DC500V/DC1000V.The box body is made of PC engineering materials. It has the functions of lightning protection, overload protection, short circuit protection, isolation circuit, photovoltaic confluence and so on. The HAPV...

1S1-500V

2S1-500V

3S1-500V

4S1-500V

6S1-500V-15A Sold Out

2S2-500V

3S3-500V

4S2-500V

Quantity:

Subtotal:$48.00

Brand: DIHOOL

Movement:

Availability: 100 In Stock

INTRODUCTION

HAPV PV Combiner Box is used to connect photovoltaic solar panel arrays and inverters. The maximum input voltage is DC500V/DC1000V.The box body is made of PC engineering materials. It has the functions of lightning protection, overload protection, short circuit protection, isolation circuit, photovoltaic confluence and so on. The HAPV photovoltaic combiner box adopts 8-bit/12-bit/18-bit box configuration, and the photovoltaic combiner box with 1/2/4/6 input and 1 output can be customized according to customer requirements.
HAPV photovoltaic combiner box is designed and configured in accordance with the requirements of "Technical Specifications for Photovoltaic Combiner Equipment" CGC/GF 037:2014.

TECHNICAL PARAMETERS

HAPV-DC500V-2S1

Model		HAPV-2S1
Input	PV Input String	2
	Max Current	8A	12A	20A
	DC1000V Fuse	10A	15A	25A
	Cable	2.5MM²	2.5MM²	4MM²
Output	PV Output String	1
	Max Current	16A	24A	40A
	Cable	4MM²	6MM²	10MM²
	Max Voltage	DC500V/1000V
	DC MCB	20A	32A	50A
	DC SPD	2P 8/20μs 40kA
	Cable	2.5MM²	2.5MM²	4MM²
Other Parameters	Protection Class	IP65
	Temperature Range	-30℃~+60℃
	Product Size	215MM250MM110MM
	Package Size	220MM210MM110MM
	Cooling Method	Natural Cooling

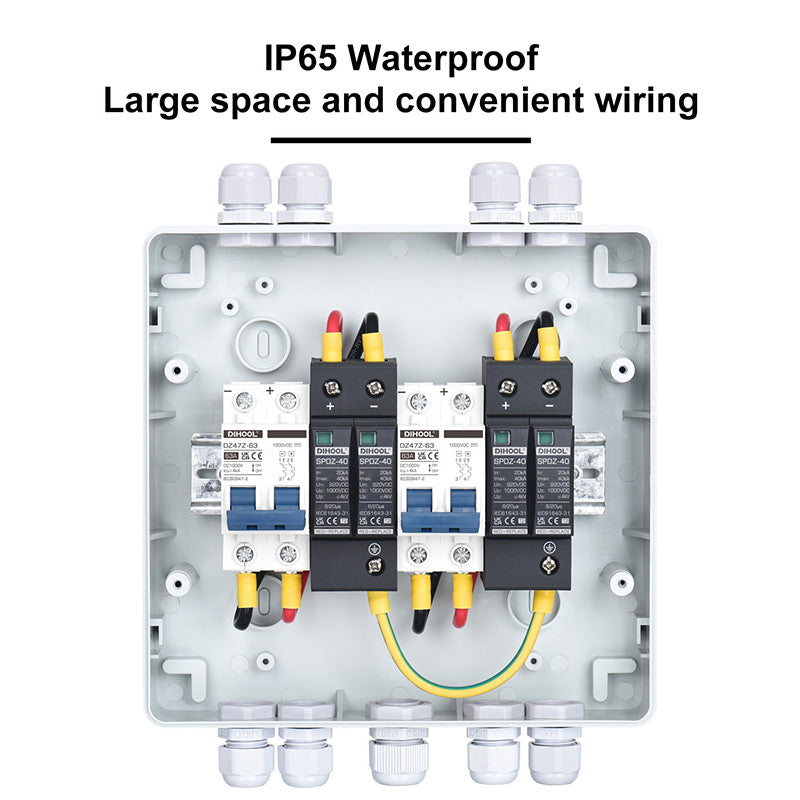

HAPV-DC500V-2S2

Model		HAPV-2S2
Input	PV Input String	2
	Max Current	12A	20A
	DC1000V Fuse	15A	25A
	Cable	4MM²	4MM²
Output	PV Output String	2
	Max Current	15A	25A
	Cable	6MM²	6MM²
	Max Voltage	DC500V/1000V
	DC MCB	16A	25A
	DC SPD	2P 8/20μs 40kA
	Cable	2.5MM²	4MM²
Other Parameters	Protection Class	IP65
	Temperature Range	-30℃~+60℃
	Product Size	310MM145MM310MM
	Package Size	265MM145MM310MM
	Cooling Method	Natural Cooling

HAPV-DC500V-4S1

Model		HAPV-4S1
Input	PV Input String	4
	Max Current	8A	12A	20A
	DC1000V Fuse	10A	15A	25A
	Cable	2.5MM²	2.5MM²	4MM²
Output	PV Output String	1
	Max Current	32A	48A	80A
	Cable	6MM²	10MM²	16MM²
	Max Voltage	DC500V/1000V
	DC MCB	40A	63A	100A
	DC SPD	2P 8/20μs 40kA
Other Parameters	Protection Class	IP65
	Temperature Range	-30℃~+60℃
	Product Size	300MM300MM140MM / 330MM410MM150MM
	Package Size	260MM310MM150MM / 300MM420MM160MM
	Cooling Method	Natural Cooling

HAPV-DC500V-6S1

Model		HAPV-6S1
Input	PV Input String	6
	Max Current	8A	12A
	DC1000V Fuse	10A	15A
	Cable	2.5MM²	2.5MM²
Output	PV Output String	1
	Max Current	48A	72A
	Cable	10MM²	16MM²
	Max Voltage	DC500V/1000V
	DC MCB	63A	100A
	DC SPD	2P 8/20μs 40kA
	Cable	2.5MM²	4MM²
Other Parameters	Protection Class	IP65
	Temperature Range	-30℃~+60℃
	Product Size	330MM410MM150MM
	Package Size	300MM420MM160MM
	Cooling Method	Natural Cooling
