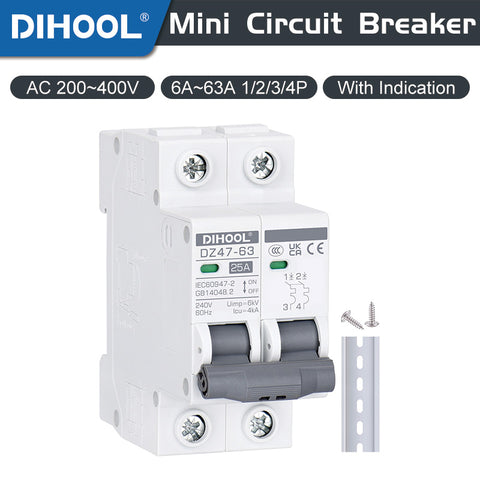

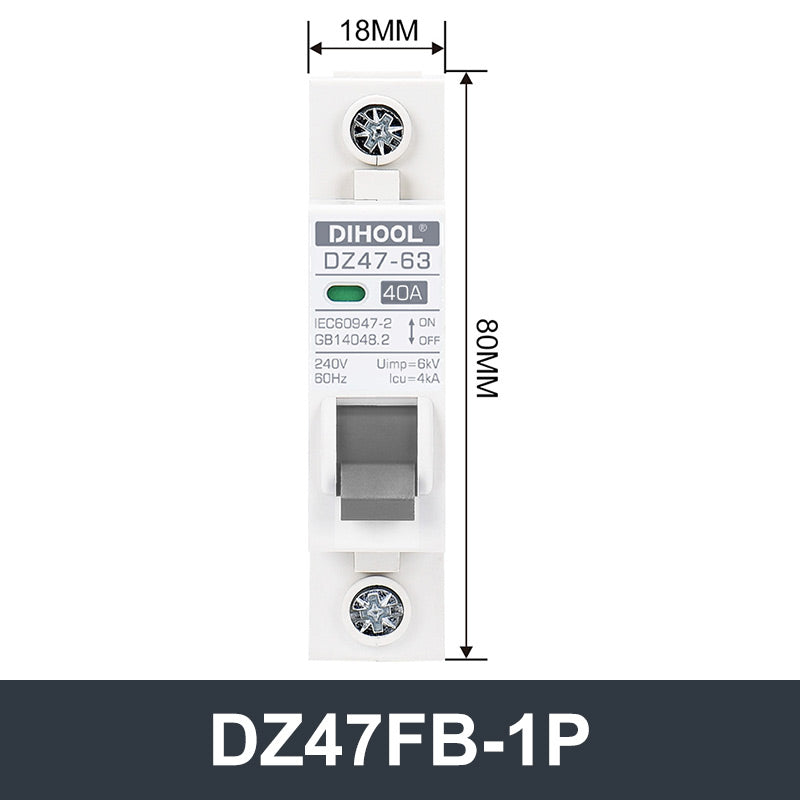

DZ47FB-1/2/3/4P Miniature Circuit Breaker Grey Handie With Indication
$1.40
TECHNICAL PARAMETERS Electrical Features Model DZ47FB Poles 1P 2P 3P 4P Rated Voltage Ue AC200-400V Insulation Volage Ui 500V Rated Impulse Withstand Voltage (1.2/50) Uimp 50/60Hz Rated Breaking Capacity 4000A Rated Impulse Withstand Voltage Uimp 6kV Dielectric Test Voltage At And Ind. Freq. For 1min 2kV Rated Breaking Capacity (lcs)...
TECHNICAL PARAMETERS
| Electrical Features | |
| Model | DZ47FB |
| Poles | 1P 2P 3P 4P |
| Rated Voltage Ue | AC200-400V |
| Insulation Volage Ui | 500V |
| Rated Impulse Withstand Voltage (1.2/50) Uimp | 50/60Hz |
| Rated Breaking Capacity | 4000A |
| Rated Impulse Withstand Voltage Uimp | 6kV |
| Dielectric Test Voltage At And Ind. Freq. For 1min | 2kV |
| Rated Breaking Capacity (lcs) | 4kA |
| Protection Class | IP20 |
| Thermo-Magnetic Release Characteristic | B (3In ~ 6In); C (5In ~ 10In); D (10In ~ 20In). |
| Electrical Life | 4000 |
| Mechanical Life | 20000 |
| Installation | 35MM DIN Rail or M3 Screw Side Mount |
| Reference Temperature For Setting Of Thermal Element | 30°C |
| Ambient Temperature | -5°C~+40°C |
| Terminal Connection Type | Phillips Screws |
| Adapter Cable | 6-63A: 1.5-25MM²; 80-125A: 4-35MM² |
| Tightening Torque | 2.5-3.0N.m |
| International Standard | IEC60947 |
