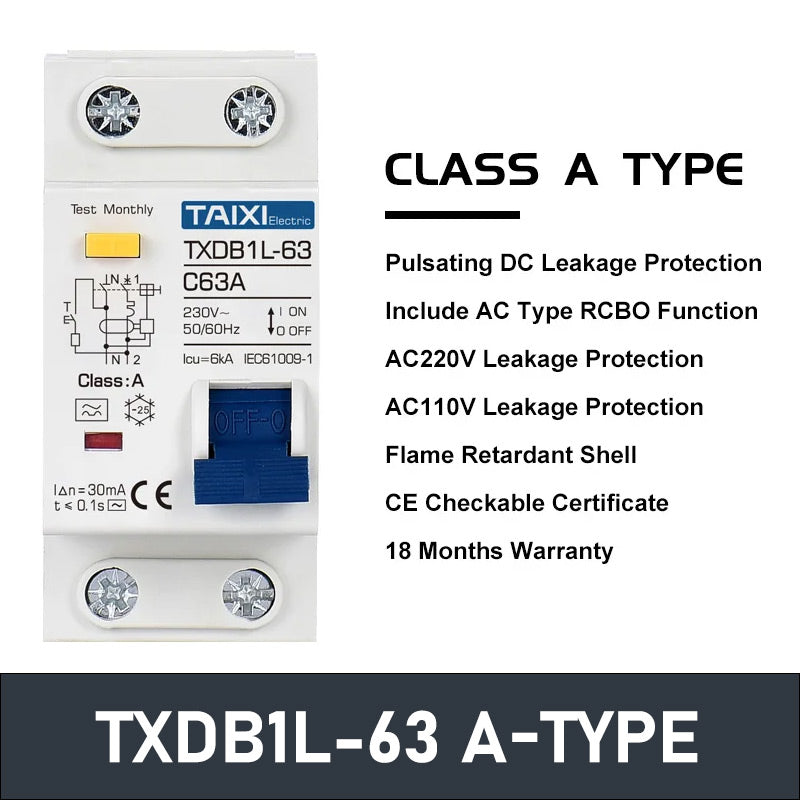

TXDB1L 6-63A Residual Current Circuit Breaker Leakage Protection
Technical Parameters
■ Rated current: 10,16,20,25,32,40,50,63A
■ Rated operating voltage: 230 / 110 AC
■ Rated insulation voltage: 500V
■ Rated residual operated current: 30mA
■ Breaking capacity: 4.5kA
■ Trip indicator: TXDB1L electric leakage circuit breaker has residual current operated trip indicator window, when leakage fault trip, the window changes from colorless to red
■ Mechanical life: 8000 times
■ Electrical life: 2000 times
■ Wiring: 6 ~ 80A, can be connected to wires of 25mm ⊃2; and below
■ Standard: IEC61009-1 / GB16917.1
■ Certification: CCC, CB,CE
■ Tripping characteristics: C-type curve, protection of conventional load and distribution cables, instantaneous trip range (5 ~ 10) Inno
NOTE :
Type A RCCB/RCBO not only cover the functions of traditional AC leakage protector, but also provide adequate protection against faults with pulsating DC components in residual current. Common electrical equipment that can easily cause pulsating DC residual current components in life include notebook computers, tablet computers, mobile phones, microwave ovens, induction cookers, refrigerators, washing machines, air conditioners, charging piles, etc.
