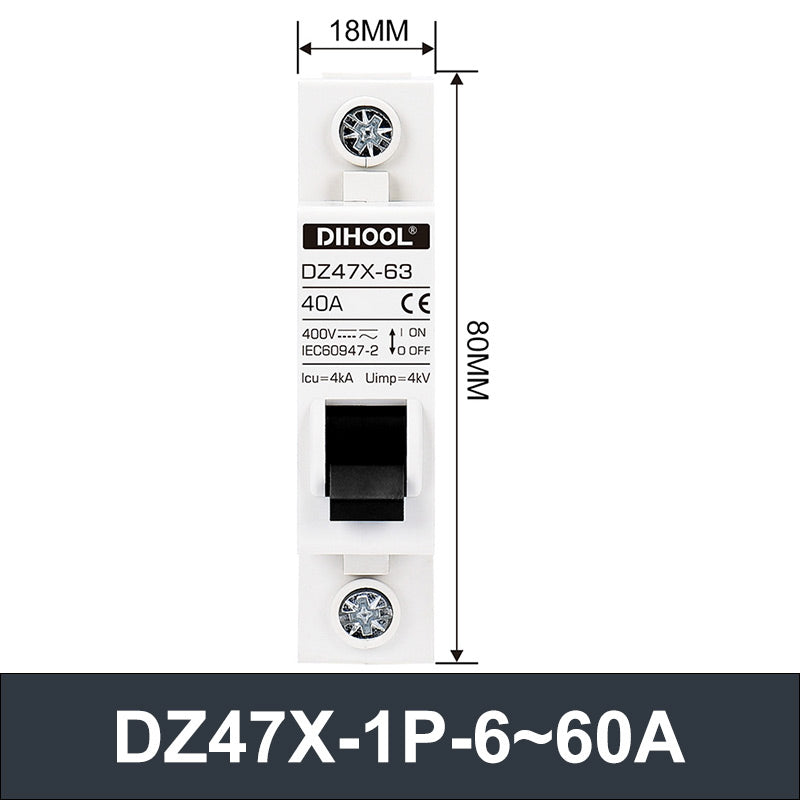

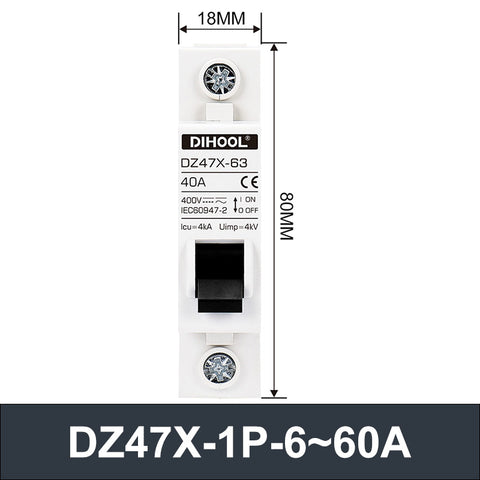

DZ47X-1/2/3/4P Miniature Circuit Breaker

DZ47X-1/2/3/4P Miniature Circuit Breaker

$0.00
Payment Note: Check out with PayPal - Credit cards accepted (no PayPal account required) DZ47X AC and DC universal circuit breakers can be used in circuits with DC 12-400V or AC 90V-400V, and Miniature Circuit Breaker with rated currents ranging from 15A to 120A. B-curve (3-5ln) tripping design is adopted. The...
Current
Pole
-
+
$0.00

DIHOOL

100 In Stock

Add to wishlist

Payment Note: Check out with PayPal - Credit cards accepted (no PayPal account required)

DZ47X AC and DC universal circuit breakers can be used in circuits with DC 12-400V or AC 90V-400V, and Miniature Circuit Breaker with rated currents ranging from 15A to 120A. B-curve (3-5ln) tripping design is adopted. The Miniature Circuit Breaker can be used in Home lighting, circuit on-off or application of DC circuit photovoltaic panels, UPS, batteries, inverters and other products for circuit overload protection or circuit isolation use.
It is not recommended to be used in high-power AC motor starting or high-power DC motor starting equipment, and it is easy to trip.
This Miniature Circuit Breaker meets the requirements of standards such as IEC60947-2

Voltage DC AC
Poles 1P 2P 1P 2P
Breaking Capacity 4kA 4kA 4kA 4kA
Withstand Voltage DC 12~440V DC 12~440V DC 12~440V DC 12~440V
Wiring Diagram
Remarks: ①The circuit breaker has no polarity, and the positive and negative poles can be switched. ②Cable wiring can be entered at the bottom and exit at the top, and can be entered at the top and exit at the bottom

MAIN TECHNICAL PARAMETERS

Rated Current 6A,10A,15A,20A,25A,32A,40A,50A,63A,80A,100A,120A
Poles 1P/2P
Rated Voltage Ue DC 12V-400V or AC 90V-440V
Insulation Voltage Ui 500V
Rated Breaking CapacityVV 4kA
Rated Impulse Withstand Voltage(1.2/50) Uimp 4kV
Dielectric Test Voltage At And Ind. Freq.For 1min 2kV
Protection Class IP20
Thermo-Magnetic Release Characteristic B-Curve (3-5ln)
Electrical Life 4000
Mechanical Life 20000
Installation 35MM DIN Rail or M3 Screw Side Mount
Reference Temperature For Setting Of Thermal Element 30°C
Ambient Temperature -5°C~+40°C
Terminal Connection Type Phillips Screws
Adapter CableV 6-63A 1-10mm216-7AWG| 80-125A 8-35mm216-2AWG:
Tightening Torque 3.0N.M
Combination With Accessories Auxilary Contact
Auxillary Contact Yes
Alarm Contact Yes
Shunt Release Yes
Under Voltage Release Yes
