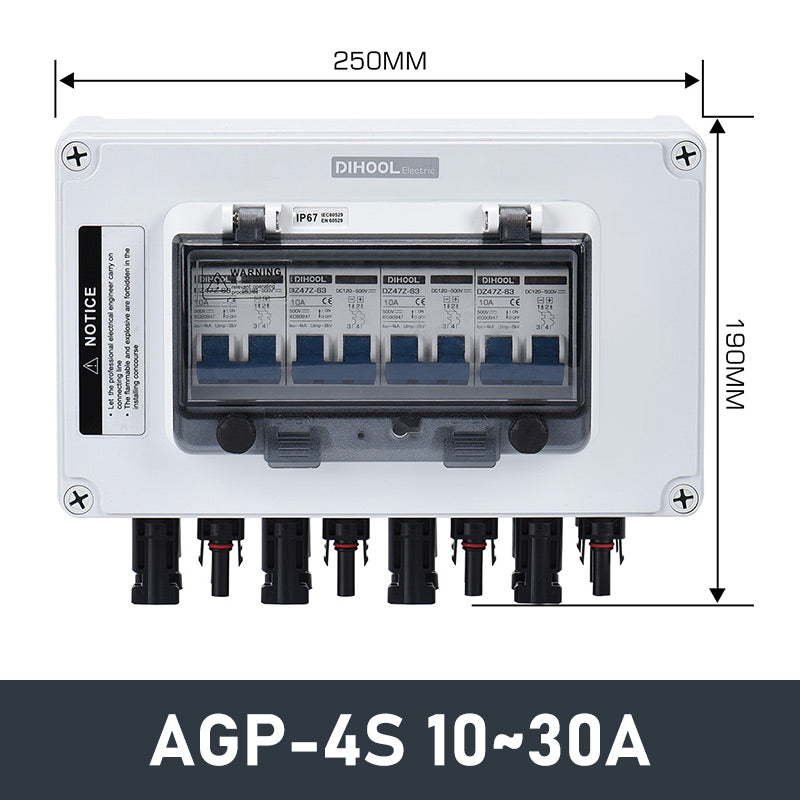

AGP-4S Circuit Breaker With Box
$78.00
TECHNICAL PARAMETERS AGP-String 1 Junction Box AGP-String 2 Junction Box Model AGP-1S Model AGP-2S DC Channel 1 DC Channel 2 Channel Max Current 16A 32A 63A Channel Max Current 16A 32A 63A Cable 2.5mm² 4mm² 10mm² Cable 2.5mm² 4mm² 10mm² Voltage DC500V / 1000V Voltage DC500V / 1000V Protection Class...
TECHNICAL PARAMETERS
| AGP-String 1 Junction Box | AGP-String 2 Junction Box | ||||||
| Model | AGP-1S | Model | AGP-2S | ||||
| DC Channel | 1 | DC Channel | 2 | ||||
| Channel Max Current | 16A | 32A | 63A | Channel Max Current | 16A | 32A | 63A |
| Cable | 2.5mm² | 4mm² | 10mm² | Cable | 2.5mm² | 4mm² | 10mm² |
| Voltage | DC500V / 1000V | Voltage | DC500V / 1000V | ||||
| Protection Class | IP67 | Protection Class | IP67 | ||||
| Temperature Range | -30℃~+60℃ | Temperature Range | -30℃~+60℃ | ||||
| Opening Hole Size | 107MM*157MM | Opening Hole Size | 157MM*157MM | ||||
| Box Size | 215MM*125MM*105MM | Box Size | 215MM*175MM*130MM | ||||
| Package Size | 230MM*130MM*110MM | Package Size | 220MM*180MM*140MM | ||||
| AGP-String 3 Junction Box | AGP-String 4 Junction Box | ||||||
| Model | AGP-3S | Model | AGP-4S | ||||
| DC Channel | 3 | DC Channel | 4 | ||||
| Channel Max Current | 16A | 32A | 63A | Channel Max Current | 16A | 32A | 63A |
| Cable | 2.5mm² | 4mm² | 10mm² | Cable | 2.5mm² | 4mm² | 10mm² |
| Voltage | DC500V / 1000V | Voltage | DC500V / 1000V | ||||
| Protection Class | IP67 | Protection Class | IP67 | ||||
| Temperature Range | -30℃~+60℃ | Temperature Range | -30℃~+60℃ | ||||
| Opening Hole Size | 182MM*182MM | Opening Hole Size | 232MM*232MM | ||||
| Box Size | 240MM*200MM*130MM | Box Size | 190MM*250MM*130MM | ||||
| Package Size | 250MM*210MM*140MM | Package Size | 200MM*260MM*140MM | ||||
