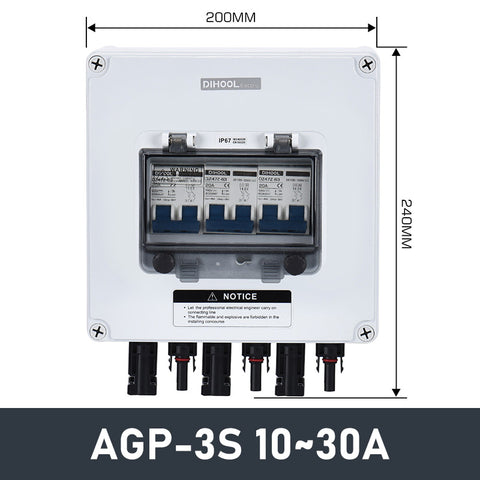

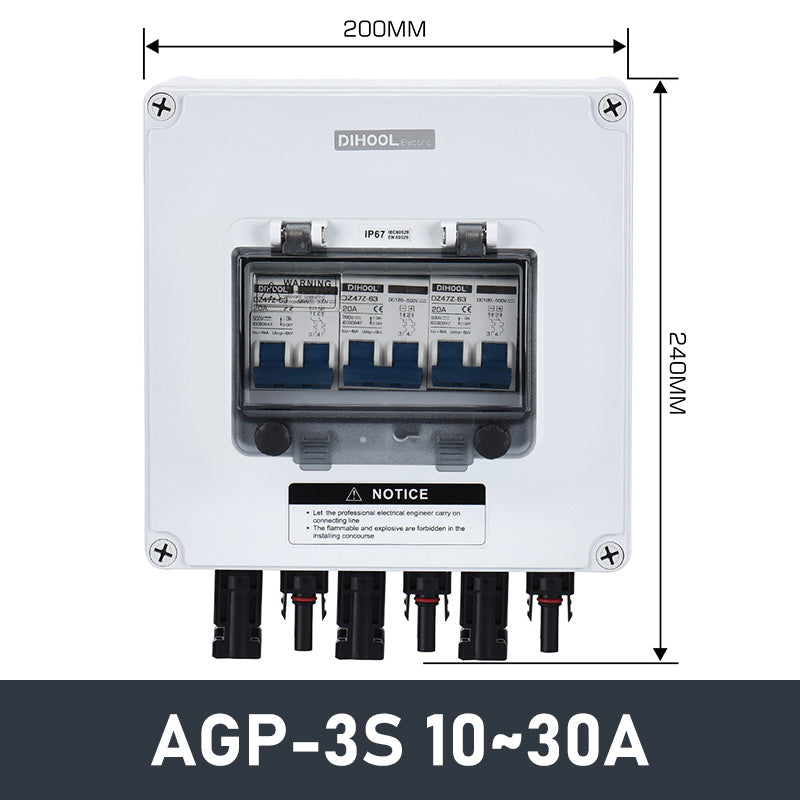

AGP-3S Circuit Breaker With Box

TECHNICAL PARAMETERS AGP-String 1 Junction Box AGP-String 2 Junction Box Model AGP-1S Model AGP-2S DC Channel 1 DC Channel 2 Channel Max Current 16A 32A 63A Channel Max Current 16A 32A 63A Cable 2.5mm² 4mm² 10mm² Cable 2.5mm² 4mm² 10mm² Voltage DC500V / 1000V Voltage DC500V / 1000V Protection Class...
Current
-
+
$56.00

DIHOOL

100 In Stock

TECHNICAL PARAMETERS

AGP-String 1 Junction Box AGP-String 2 Junction Box
Model AGP-1S Model AGP-2S
DC Channel 1 DC Channel 2
Channel Max Current 16A 32A 63A Channel Max Current 16A 32A 63A
Cable 2.5mm² 4mm² 10mm² Cable 2.5mm² 4mm² 10mm²
Voltage DC500V / 1000V Voltage DC500V / 1000V
Protection Class IP67 Protection Class IP67
Temperature Range -30℃~+60℃ Temperature Range -30℃~+60℃
Opening Hole Size 107MM*157MM Opening Hole Size 157MM*157MM
Box Size 215MM*125MM*105MM Box Size 215MM*175MM*130MM
Package Size 230MM*130MM*110MM Package Size 220MM*180MM*140MM

AGP-String 3 Junction Box AGP-String 4 Junction Box
Model AGP-3S Model AGP-4S
DC Channel 3 DC Channel 4
Channel Max Current 16A 32A 63A Channel Max Current 16A 32A 63A
Cable 2.5mm² 4mm² 10mm² Cable 2.5mm² 4mm² 10mm²
Voltage DC500V / 1000V Voltage DC500V / 1000V
Protection Class IP67 Protection Class IP67
Temperature Range -30℃~+60℃ Temperature Range -30℃~+60℃
Opening Hole Size 182MM*182MM Opening Hole Size 232MM*232MM
Box Size 240MM*200MM*130MM Box Size 190MM*250MM*130MM
Package Size 250MM*210MM*140MM Package Size 200MM*260MM*140MM
