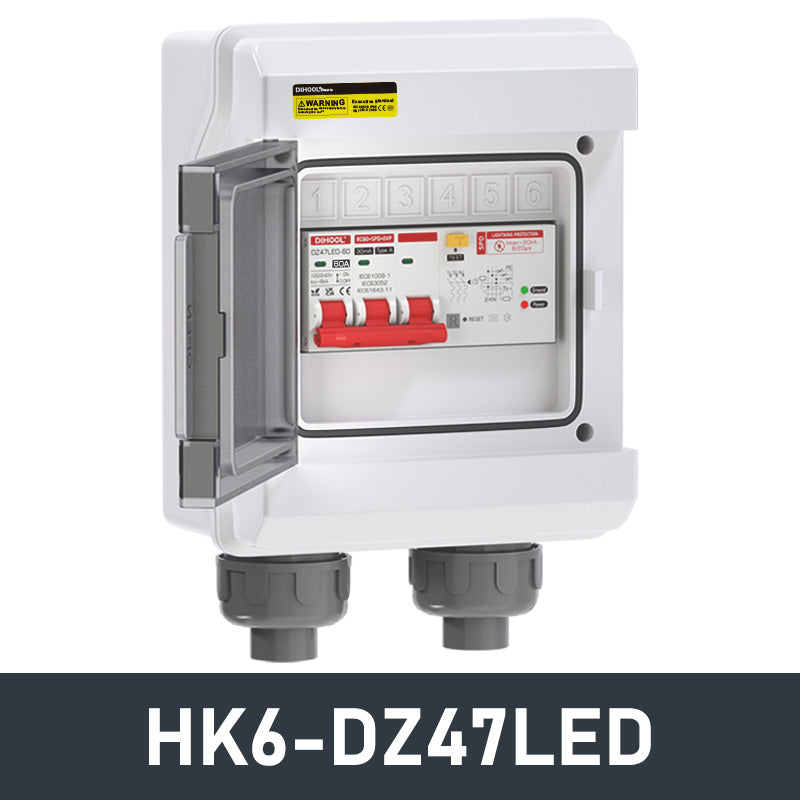

DZ47LED-2LNE Residual Current Circuit Breaker 10A~60A
Payment Note: Check out with PayPal - Credit cards accepted (no PayPal account required)
PRODUCT INTRODUCTION
The DZ47LED-2LNE is a high-performance Type A Residual Current Circuit Breaker with Overcurrent Protection, integrating comprehensive electrical safety functions into a single, compact device. Designed specifically for 120/240V split-phase (dual live wire) power systems, it features a 2P+N+PE wiring structure. This design ensures the simultaneous disconnection of both live conductors (L1, L2) and the neutral conductor (N) during a fault, while a dedicated protective earth terminal (PE) provides a reliable grounding path for enhanced safety.
This multi-functional device offers complete protection against earth leakage, overload, and short-circuit faults. It is engineered for regions utilizing low-voltage split-phase systems, such as North America, Japan, and Taiwan China. A key feature is its support for both Type A and Type AC residual current detection, providing flexibility for applications with different types of electrical loads. With a rated current range of 10A to 60A, the breaker delivers reliable, standardized protection for terminal circuits in residential, commercial, and light industrial applications.
Electrical Parameters
| Rated Current | 10A, 15A, 20A, 25A, 30A, 40A, 50A, 60A | |
| Poles | 3P(L1+L2+N) + PE (Dual Live Wire) | |
| Rated Voltage (Ue) | 120/240V AC (Split-phase) | |
| Rated Insulation Voltage (Ui) | 500V | |
| Rated Breaking Capacity | 6kA | |
| Rated Impulse Withstand Voltage (Uimp) | 4kV (1.2/50μs) | |
| Dielectric Test Voltage | 2kV (Ind. Freq. for 1 min) | |
| Residual Current Type | Type A | |
| Rated Residual Operating Current (IΔn) | 30mA(default), customizable to 15 mA, 50mA, 100mA, or 300 mA | |
| Tripping Characteristic | C-Curve (5-10In) | |
| Electrical Life | 4,000 cycles | |
| Mechanical Life | 10,000 cycles | |
| Mounting | 35mm DIN Rail | |
| Operating Ambient Temperature | -5℃ to +40℃ | |
| Terminal Type | Screw Terminal (Phillips/Slotted Combo) | |
| Terminal Capacity | 1.5 - 25 mm² (16 - 4 AWG) | |
| Tightening Torque | 2.5 N·m (22 lb-in) | |
| Pollution Degree | 2 (Standard) | |
| Maximum Altitude | ≤ 2000m | |
| Certification | IEC61009-2-2 | |
| Frequency | 50/60Hz | |
| Surge Protection Parameters | ||
| Max Discharge Current (8/20μs) | 20 kA | |
| Nominal Discharge Current (8/20μs) | 10 kA | |
| Response Time | < 25 ns | |
| The ground terminal links the stranded copper conductors | 6mm² | |
| RCD Types | ||
| Type AC General Purpose Use |
 |
RCD can detect and respond to AC sinusoidal wave only. |
| Type A Equipment incorporating electronic components |
 |
RCD can detect and respond as for type AC, Plus pulsating DC conponents. |

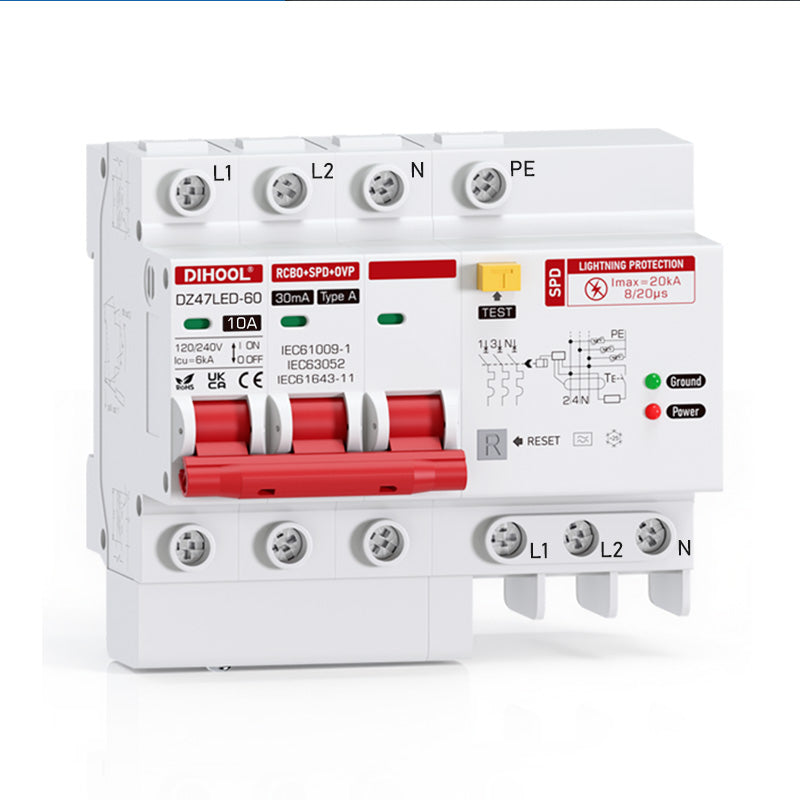

Description Of Appearance
The Main Difference Between Type A And Type AC
| Form | Residual Current and Current Waveform that can trip | Trip Current Range | |
| Type AC | AC Residual Current |  |
0.5I△-I△n |
| Type A | AC Residual Current | |
0.5I△-I△n |
| Pulsating DC Residual Current |  |
0.35~1.4I△n (or 2I△n)(Current lag Angle 0°) 0.25~1.4I△n (or 2I△n)(Current lag Angle 90°) 0.11~1.4I△n (or 2I△n)(Current lag Angle 135°) |
|
| Current Stacking 6mA Pulsating Direct Current |  |
1.4I△n (or 2I△n) + 6mA | |
Installation Instructions

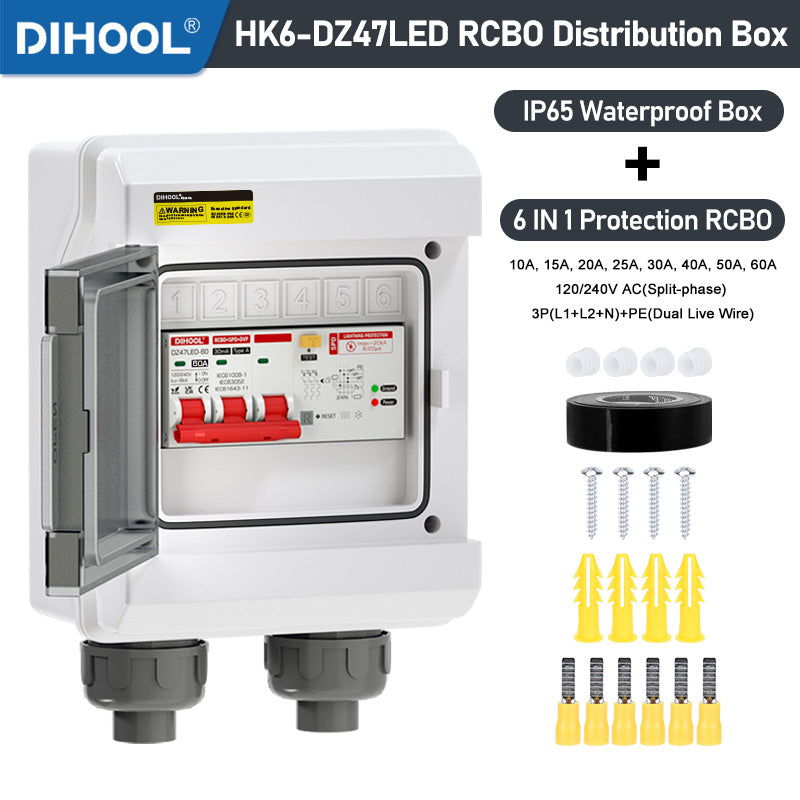

Dimensions And Accessories
Wring Instructions
