IPS-S2 Controller

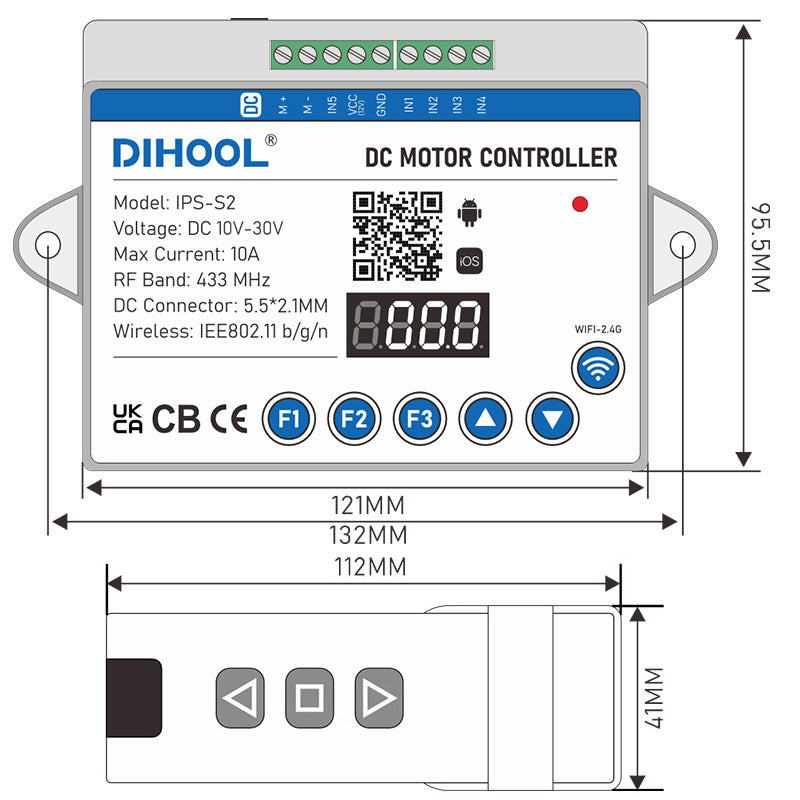

PRODUCT DESCRIPTION

IPS-S2 motor controller that integrates infrared/radio frequency/WIFI/ button control, mainly used to control electric linear actuators. The controller is compatible with voltage of DC10V~30V, maximum current of 10 A. The positive and negative poles need to be wired according to the wiring diagram. If the positive and negative connections are not correct, it will not burn the controller. For example, 60W Iinear actuator, please choose 60-90W power adapter/switch power supply. If use smaller power, the motor will not working. The controller can be used to control various specifications of electric linear actuators. WIFI module can be controlled through the "eWelink" APP, and only supports 2.4G WIFI. There are 6 buttons F1, F2, F3, ▲, ▼, on the controller for adjusting various functions. Please refer to the following for detailed instructions. The ▲ / ▼ button controls the forward and backward movement of the motor; The button learns WIFI.

TECHNICAL PARAMETERS

Model	IPS-S2	DC Connector	5.5*2.1MM
Input Voltage	DC 10V-30V	Receiving Frequency	RF433MHz/2.4GHz
Output Voltage	20-93% Input Voltage Adjustable	WIFI Protocol	IEE802.11 b/g/n
Max Current	10A	Remote Control Battery	23A 12V
Current Monitoring Accuracy	±0.3A	Working Temperature	-20℃~+70℃
Power Consumption	<3W	Working Humidity	10%~90%RH (NO CONDENSATION)
Input Signal Type	NPN

The Main Functions

1. Controller button control: Press the ▲ button to up and the ▼ button to down. If not correct, please switch to connecting the motor cable.
2. RF433 remote control: It can be adapted to the RF433 remote control (with three buttons for forward, pause, and backward), and one controller can be equipped with 8 remote controls. (Provide 1 remote control by default)
3. Infrared remote control: Each infrared remote control can be controlled
4. Manual controller: optional with 2.5 meter manual controller for control (press move)/optional with foot controller for control (press move)
5. WIFI control: You can use the L button to connect 2.4G WIFI for lifting control. (First time adapting to WIFI, please approach the router)
6. Button control: Can be controlled using industrial button switches
7. Current limiting control: Set the maximum current of the controller through the F1 button. When the motor exceeds the current, the motor will stop

FUNCTION F1: MOTOR PROTECTION SETTINGS Press and hold the F1 key for 3 seconds to enter the F1 sub-function settings, click F1 to switch in the sub-functions, and hold the F1 key for 3 seconds to exit the setting (press "▲" to increase / "▼" to adjust the value)
Code/Subfunction Name		Subfunction Parameter Description	Value	Default Value	Unit
A	Overcurrent Protection	Upward overcurrent protection	A010~A100	A04.0	(Amp)
b	Overcurrent Protection	Downward overcurrent protection	b010~b100	b01.0	(Amp)
C	Operation Mode	C-1 Jogging, C-0: Self-holding, U-1 time-delay	C-1~C999	C000	(Seconds)
d	Stall Detection Protection	Downward Stall Detection Protection	D0.0~D9.9	D0.6	(Amp)
E	Stall Detection Protection	Upward Stall Detection Protection	E0.0~E9.9	E0.0	(Amp)
F	Stall Reverse Time	Obstruction rebound duration	F000~F999	F001	(Seconds)
G	Stall Protection Time-delay Intervention	Set the time for delayed intervention of stall protection	G0.0~G3.0	G0.30	(Seconds)
H	Percentage of QV Voltage Regulation Range	Downward voltage regulation range (20%-93%)	H000~H093	H093	(%)
J	Percentage of QV Voltage Regulation Range	Upward voltage regulation range (20%-93%)	J000~J093	J093	(%)
L	Display Brightness Adjustment	Screen brightness ranges from 1 (dim) to 8 (bright)	L001~L008	L005
P	Operation Mode Of Wired Controller	Foot switch / wired controller (0: Jogging, 1: Self-holding)	P 0 / P 1	P 0
t	Screen Off Time	The default time is 5 minutes	t000~t999	t005	(Minutes)
Lo	Soft Stop	0: Turn Off, 1: Turn On	Lo 0 / Lo 1	Lo 0
FUNCTION F2: SIGNAL OPERATION SETTING Press and hold the F2 key for 3 seconds to enter the F2 sub-function settings, click F2 to switch in the sub-functions, and hold the F2 key for 3 seconds to exit the setting (press "▲" to increase / "▼" to adjust the value)
Code/Subfunction Name		Subfunction Parameter Description	Value (Unit)
A	Up Working Time	Motor Up Working Time	A000~A999		(Seconds)
b	Pause Time	Motor Pause Time	b000~b999		(Seconds)
C	Down Working Time	Motor Down Working Time	C000~C999		(Seconds)
d	Operation Mode 0: Motor Working 1: Motor Not Working	0: Signal Present, stop. Signal disappear, execute actions A,b,c 1: Signal Present, stop after executing action A. Signal disappear, execute actions b and c	d000~d001		/
FUNCTION F3: AUTOMATIC OPERATION SETTING Press and hold the F3 key for 3 seconds to enter the F3 sub-function settings, click F3 to switch in the sub-functions, and hold the F3 key for 3 seconds to exit the setting (press "▲" to increase / "▼" to adjust the value)
Code/Subfunction Name		Subfunction Parameter Description	Value (Unit)
A	Up Working Time	Motor Up Working Time	A000~A999		(Seconds)
b	Pause Time	Motor Pause Time	b000~b999		(Seconds)
C	Down Working Time	Motor Down Working Time	C000~C999		(Seconds)
d	Pause Time	Motor Pause Time	d000~d999		(Seconds)
E	Number Of Cycles	The Number Of Cycles Of The Motor	E000~E999		(frequency)
F	Cycle Operation Mode: 0-Close, 1-Start	0: Close Cycle Operation, 1: Start Cycle Operation Press the "▲" / "▼" To start, press again to close	F000/F001		/
