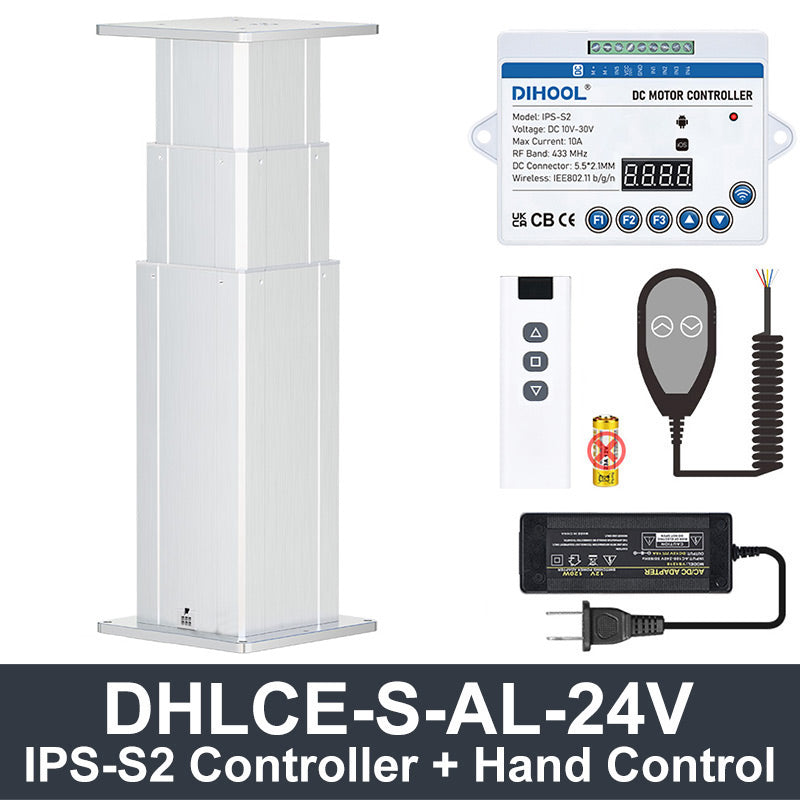

DHLCE-S1155A-AL 3 Stage Electric Lifting Column AL Panel 24V DC 2000N

DHLCE-S1155A-AL 3 Stage Electric Lifting Column - AL Panel 24V DC Motor 2000N 450LB Load

$383.20

PRODUCT DESCRIPTION The DHLCE-S series three section electric lifting column is a high-performance product upgraded and optimized based on the DHLCE series. The shell is made of high-quality alumina alloy material, and the surface is treated with anodizing, which has excellent corrosion resistance, wear resistance, and weather resistance. The protection...

DHLCE-S1155A-AL-1S Sold Out

DHLCE-S1155A-AL-2S Sold Out

DHLCE-S1155A-AL-4S Sold Out

200KG-10MMS Sold Out

80KG-30MMS Sold Out

Quantity:

Subtotal:$383.20

Brand: DIHOOL

Movement:

Availability: 100 In Stock

PRODUCT DESCRIPTION

The DHLCE-S series three section electric lifting column is a high-performance product upgraded and optimized based on the DHLCE series. The shell is made of high-quality alumina alloy material, and the surface is treated with anodizing, which has excellent corrosion resistance, wear resistance, and weather resistance. The protection level reaches IP54, taking into account basic dust and waterproof requirements. The upper and lower installation covers are made of 10mm thick aluminum plates and adopt an innovative three section sleeve lifting structure to achieve simultaneous lifting and lowering of double-layer aluminum tubes. The stroke covers 300mm to 1200mm (supporting non-standard customization), and the operation is smooth and low-noise, with a noise level as low as 30dB. The core drive system is equipped with a DC24~30V wide voltage Hall encoder motor with a maximum power of 120W. In terms of intelligent control, the Hall encoder motor is linked with a high-precision sensor to achieve synchronous operation of multiple lifting columns to precise positioning within an error of ±3mm, and support the setting of any point in the stroke.

TECHNICAL PARAMETERS

Model	DHLCE-S300A-AL	DHLCE-S395A-AL	DHLCE-S545A-AL	DHLCE-S765A-AL	DHLCE-S1155A-AL
Panel Size	200*200mm(Thickness:10mm)
Motor Power	Max 120W
Section	3
DHLCE-1S-S2 CONTROLLER
Initial Height H (MM)	300	380	490	600	810
Final Height FH (MM)	580	775	1035	1365	1965
Stroke Length S (MM)	280	395	545	765	1155
DHLCE-2S/4S-HALL CONTROLLER
Initial Height H (MM)	305	385	495	605	815
Final Height FH (MM)	575	770	1030	1360	1960
Stroke Length S (MM)	270	385	535	755	1145
Use Hall controller to custimize 0-position and highest postion
Voltage	DC20~32V
No-Load Speed	10MM/S			30MM/S
Max Load Capacity	200KG / 450LB			80KG / 180LB
Self-Locking Force	2500N (250KG) / 550LB			900N (90KG) / 200LB
Operating Temperature	-10°C~+60°C
Limit Switches	Built-in
Operating Frequency	10% Work System, Maximum 20 Minutes Continue Working
Color	Silver + Grey (Customizable Black, Red, White)
Material	Body Aluminum ，Panel Aluminum
Note	1. The lifting column cannot operate continuously with a load(80% Max Load) for more than 10 minutes, as it may damage the motor. 2. The lateral impact resistance is relatively weak, so auxiliary protective devices must be used in conjunction.
