Electric Linear Motion Actuator 24V DC Motor 3000N 660LB Load - DHLA3000-A2
$22.00
If you need to customize 1100MM-1600MM, please contact us TECHNICAL PARAMETERS Voltage DC24V Speed (MM/S) 5 10 15 20 30 40 50 66 88 110 Load Pull Capacity(N) 3000 1400 1000 800 500 400 300 200 150 100 Load Push Capacity(N) 3000 1400 1000 800 500 400 300 200 150...
If you need to customize 1100MM-1600MM, please contact us
TECHNICAL PARAMETERS
Voltage
|
DC24V
|
||||||||||
Speed (MM/S)
|
5 | 10 | 15 | 20 | 30 | 40 | 50 | 66 | 88 | 110 | |
Load Pull Capacity(N)
|
3000 | 1400 | 1000 | 800 | 500 | 400 | 300 | 200 | 150 | 100 | |
Load Push Capacity(N)
|
3000 | 1400 | 1000 | 800 | 500 | 400 | 300 | 200 | 150 | 100 | |
Self-locking Capacity(N)
|
3000 | 1400 | 1000 | 800 | 500 | 400 | 300 | 200 | 150 | 100 | |

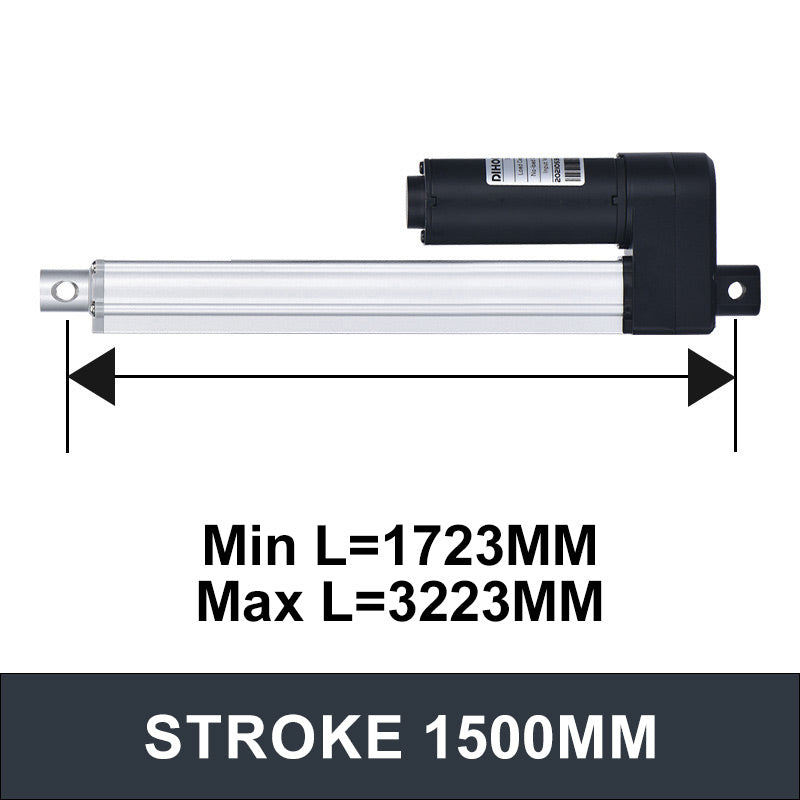

Stroke Length
|
30mm-1600m
|
||||||||||
Operating Temperature
|
-25°C~+85°C
|
||||||||||
Limit Switches
|
Built-in
|
||||||||||
Operating Frequency
|
10% max 2min continuous use
|
||||||||||
Inner Tube
|
Aluminum tube
|
||||||||||
Lead screw Type
|
Type T
|
||||||||||
Installation Method
|
M6/M8/M10 Screw
|

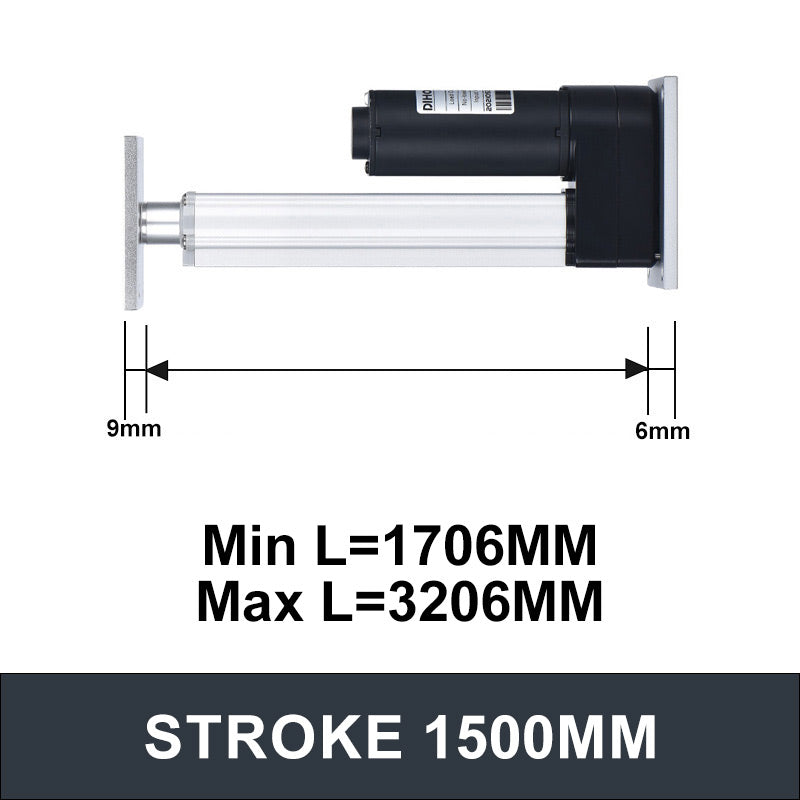

Flat Plate
|
Ф6.2 / Ф8.2 / Ф10.2 Lifting Lug
|
