Electric Linear Motion Actuator 12V DC Motor 2400N 528LB Load - DHLA3000-A2

Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC12V Speed (MM/S) 5 10 20 30 40 66 Load Pull Capacity(N) 2400 1200 600 400 300 150 Load Push Capacity(N) 2400 1200 600 400 300 150 Self-locking Capacity(N) 2400...

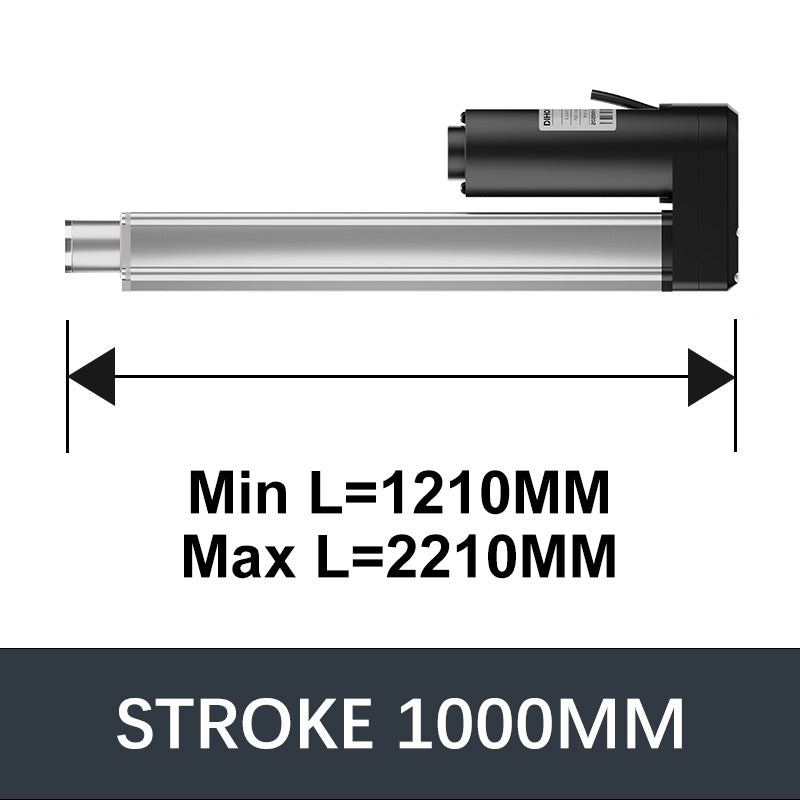

STROKE
SPEED
-
+
$22.00

DIHOOL

50 In Stock

Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days.

TECHNICAL PARAMETERS

Voltage
DC12V
Speed (MM/S)
5 10 20 30 40 66
Load Pull Capacity(N)
2400 1200 600 400 300 150
Load Push Capacity(N) 2400 1200 600 400 300 150
Self-locking Capacity(N) 2400 1200 600 400 300 150
Stroke Length
30mm-1600m
Operating Temperature
-25°C~+85°C
Limit Switches
Built-in
Operating Frequency
10% max 2min continuous use
Inner Tube
Aluminum tube
Lead screw Type
Type T
Installation Method
M6/M8/M10 Screw
Flat Plate
Ф6.2 / Ф8.2 / Ф10.2 Lifting Lug

OUTLINE DIMENSION DRAWING

Optional Configuration
