SWAD Battery Cable 50A 120A 175A 350A

TECHNICAL PARAMETERS Wire gauge: 10AWG(6mm²) / 8AWG(10mm²) / 6AWG(16mm²) / 4AWG(25mm²) / 2AWG(35mm²) / 0AWG(50mm²) Conductor material: Stranded tinned copper Inner-core diameter: 0.08mm Insulation material: high quality silicone Temperature range: -60°C~+200°C Rated voltage: 600V; Length: 20/30/50/100/200 cm; Using high-purity tinned copper core, stronger oxidation resistance and stable conductivity About Connector:...
TYPE
LENGTH
-
+
$2.80

DIHOOL

100 In Stock

TECHNICAL PARAMETERS

Wire gauge: 10AWG(6mm²) / 8AWG(10mm²) / 6AWG(16mm²) / 4AWG(25mm²) / 2AWG(35mm²) / 0AWG(50mm²)
Conductor material: Stranded tinned copper
Inner-core diameter: 0.08mm
Insulation material: high quality silicone
Temperature range: -60°C~+200°C
Rated voltage: 600V;
Length: 20/30/50/100/200 cm;
Using high-purity tinned copper core, stronger oxidation resistance and stable conductivity

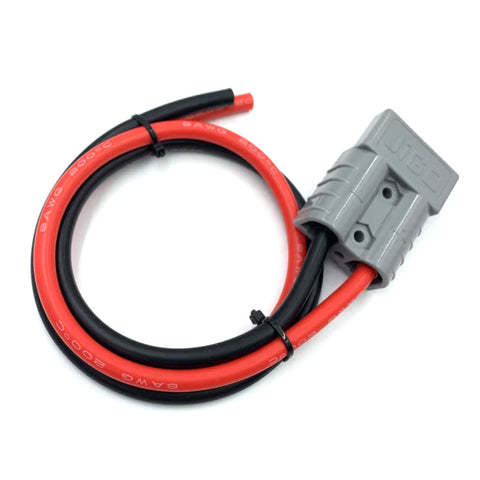

About Connector:
Model: Two-pole Power Connector (50A/120A/175A/350A)
Color: Gray
Contact Material: Silver-plated Copper

INTRODUCTION

50AD+8AWG Wire
▷50A Power two-pole plug(Gray)
▷8AWG Silicone wire(Cross section 8.3mm²)

50AD+6AWG Wire
▷50A Power two-pole plug(Gray)
▷6AWG Silicone wire(Cross section 16mm²)

120AD+4AWG Wire
▷120A Power two-pole plug(Gray)
▷4AWG Silicone wire(Cross section 25mm²)

175AD+2AWG Wire
▷175A Power two-pole plug(Gray)
▷3AWG Silicone wire(Cross section 35mm²)

350AD+0AWG Wire
▷350A Power two-pole plug(Gray)
▷2AWG Silicone wire(Cross section 50mm²)

If you need AD+M6/M8/M10 Terminals or customize the connector and length, please contact online customer service.
