Movable Electric Lift Table 220V / 110V Motor 600N 132LB Load - DHLC640
$180.00
TECHNICAL PARAMETERS Voltage 220V 50Hz or 110V 60Hz Lifting Range 630MM-820MM Load Pull Capacity 600N/60KG Stroke Length 190MM Operating Temperature 0°C~+40°C IP Grade IP54 Limit Switches Built-in Operating Frequency 10% Work System, Maximum 1 Hour Continue Working Color Silver White Power 120W Table Size 480MM*400MM Net Weight 19KG Inner Box...
TECHNICAL PARAMETERS
|
Voltage
|
220V 50Hz or 110V 60Hz
|
|||||
|
Lifting Range
|
630MM-820MM
|
|||||
|
Load Pull Capacity
|
600N/60KG
|
|||||
|
Stroke Length
|
190MM
|
|||||
|
Operating Temperature
|
0°C~+40°C
|
|||||
|
IP Grade
|
IP54
|
|||||
|
Limit Switches
|
Built-in
|
|||||
|
Operating Frequency
|
10% Work System, Maximum 1 Hour Continue Working
|
|||||
|
Color
|
Silver White
|
|||||
|
Power
|
120W
|
|||||
|
Table Size
|
480MM*400MM
|
|||||
|
Net Weight
|
19KG
|
|||||
|
Inner Box Size (MM)
|
608(L)*530(W)*265(H)
|
|||||

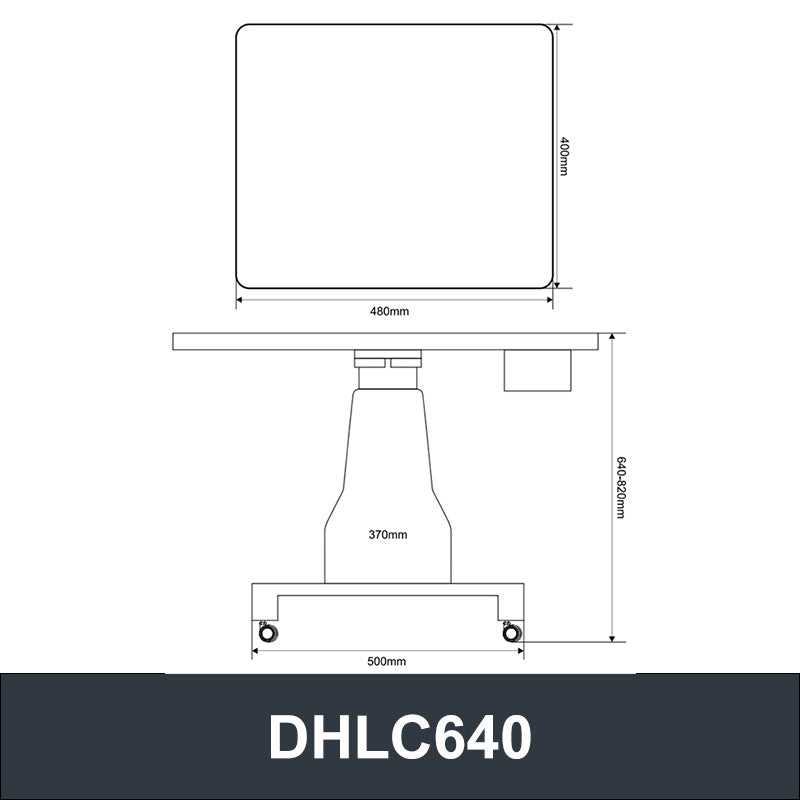

OUTLINE DIMENSION DRAWING
