DHLT3-L3 L-shaped Lifting Table(with adjustable angle)
$360.00
DHLT3-L3 lifting table silent lifting does not disturb others, lifting does not jam. Strong bearing capacity, stable and firm, slow stop slow start, use more secure. Simple and beautiful appearance, suitable for the majority of people to use. TECHNICAL PARAMETERS Model DHLT3-L3 Voltage AC100~240V Height Adjustable Range 610~1260MM Boader Adjustable...
DHLT3-L3 lifting table silent lifting does not disturb others, lifting does not jam. Strong bearing capacity, stable and firm, slow stop slow start, use more secure. Simple and beautiful appearance, suitable for the majority of people to use.
TECHNICAL PARAMETERS
| Model | DHLT3-L3 |
| Voltage | AC100~240V |
| Height Adjustable Range | 610~1260MM |
| Boader Adjustable Range | L1080mm*W265mm*H185mm+L790mm*W400mm *H160mm |
| Width | 575MM |
| Number Of Motors | 3 |
| Section | 3 |
| Load Capacity | 2400N | 240kg |
| Speed | 32MM/S |
| Color | RAL9005(Black) / RAL7045(Gray) / RAL9016(White) |
| Operating Temperature | 0°C~+40°C |
| IP Grade | IP54 |
| Operating Frequency | 10% max 2min.continuous use |
| Limit Switches | None |
| Panels | None |
| Controller | Hall Controller | With APP Hall Controller |
| Customized | Table Leg | Hand Control | Color |

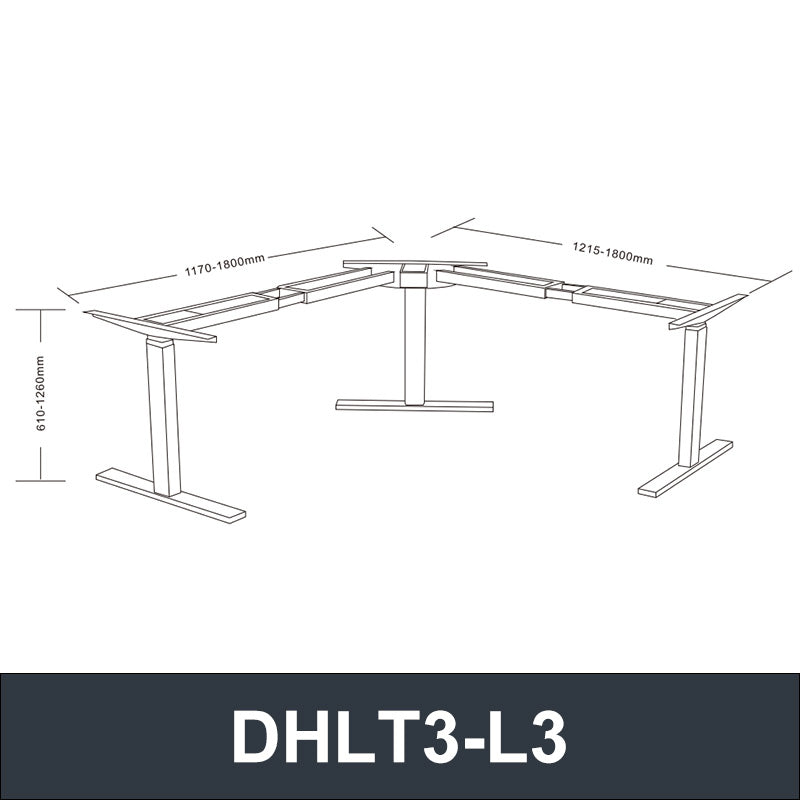

OUTLINE DIMENSION DRAWING
