Electric Linear Motion Actuator 6V DC Motor 180N 40LB Load - DHLA130-A2-6V

TECHNICAL PARAMETERS Voltage DC6V No-Load Speed (MM/S) 150 50 28 14 7 3.5 Load Pull Capacity(N) 8 18 40 80 120 180 Load Push Capacity(N) 8 18 40 80 120 180 Self-locking Capacity(N) 60 10 20 50 70 150 Stroke Length Standard Type: 10MM,15MM,17.5MM,20MM,21MM,30MM,50MM,70MM,100MM,150MM,200MM Waterproof Type: 10MM,15MM,20MM,30MM,50MM,75MM,100MM,150MM,200MM Hall Type: 30MM,50MM,75MM,100MM,150MM,200MM...
STROKE
SPEED
-
+
$16.00

DIHOOL

100 In Stock

TECHNICAL PARAMETERS

Voltage
DC6V
No-Load Speed (MM/S)
150 50 28 14 7 3.5
Load Pull Capacity(N)
8 18 40 80 120 180
Load Push Capacity(N)
8 18 40 80 120 180
Self-locking Capacity(N)
60 10 20 50 70 150
Stroke Length
Standard Type: 10MM,15MM,17.5MM,20MM,21MM,30MM,50MM,70MM,100MM,150MM,200MM
Waterproof Type: 10MM,15MM,20MM,30MM,50MM,75MM,100MM,150MM,200MM
Hall Type: 30MM,50MM,75MM,100MM,150MM,200MM
Motor Power
5W
Operating Temperature
-10°C~+50°C
Limit Switches
Built-in
Operating Frequency
10% Max 2Min. Continuous Use
Color
Black
Inner Tube
Aluminum tube
Material
Aluminum
Protection Class
IP43/IP65
Noise
Below 55dB
Mechanical Life
More than 10,000 times
Note
Customized DC6V

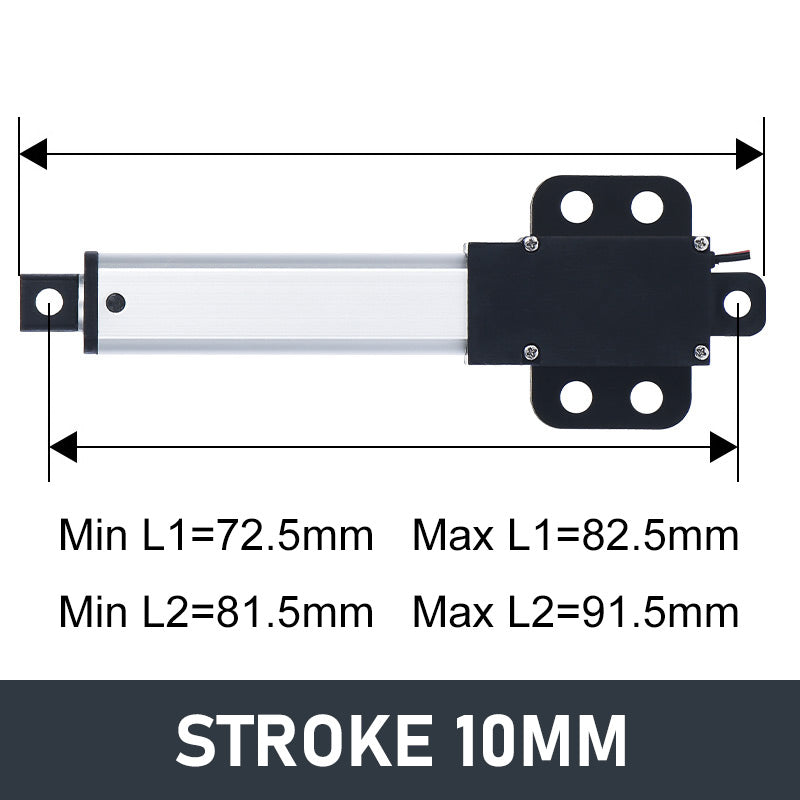

OUTLINE DIMENSION DRAWING
