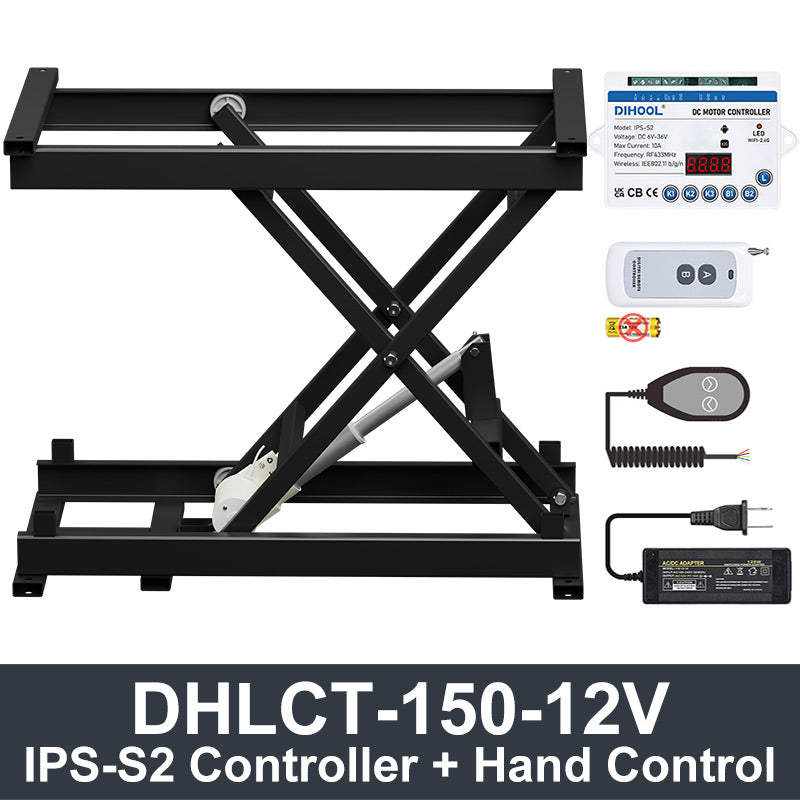

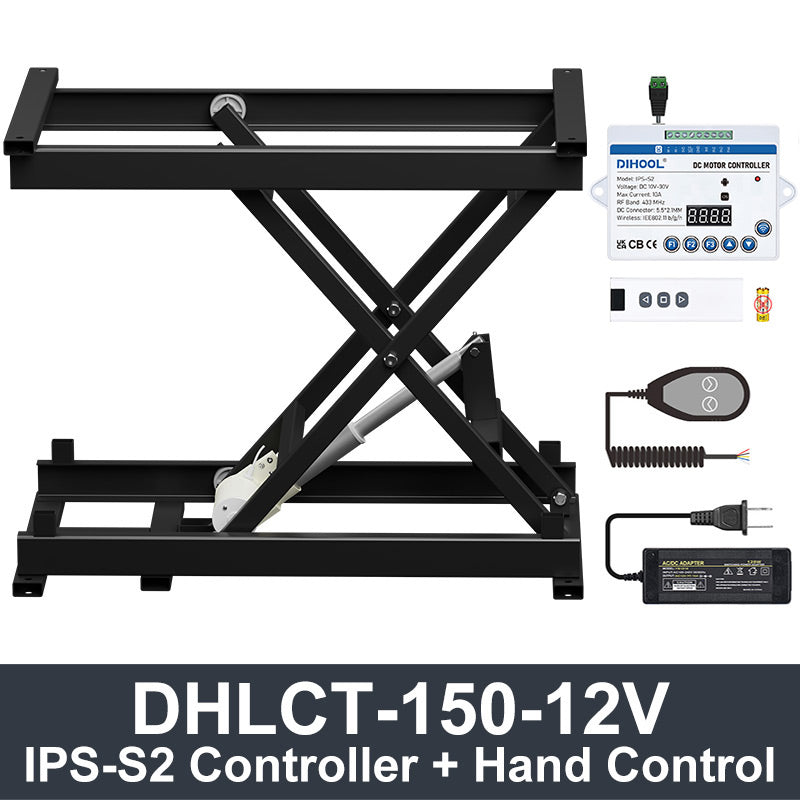

DHLCT-150 Electric Scissor Lift 12V/24V DC Motor 1500N 330LB Load

TECHNICAL PARAMETERS Model DHLCT-25 DHLCT-40 DHLCT-120 DHLCT-150 DHLCT-C2-80 DHLCT-C2-60 Load Capacity 60KG/600N 40KG/400N 120KG/1200N 150KG/1500N 80KG/800N 60KG/600N Speed 13.5MM/S 23MM/S 10MM/S 10MM/S 20MM/S 16MM/S Min Height 100MM 115MM 210MM 195MM 265MM 265MM Max Height 370MM 345MM 580MM 680MM 1100MM 1270MM Stroke 270MM 230MM 370MM 485MM 835MM 1005MM Size (L*W*H) 400*320*100MM...
MODEL
-
+
$220.00

DIHOOL

100 In Stock

TECHNICAL PARAMETERS

Model
DHLCT-25 DHLCT-40 DHLCT-120 DHLCT-150 DHLCT-C2-80 DHLCT-C2-60
Load Capacity
60KG/600N 40KG/400N 120KG/1200N 150KG/1500N 80KG/800N 60KG/600N
Speed
13.5MM/S 23MM/S 10MM/S 10MM/S 20MM/S 16MM/S
Min Height
100MM 115MM 210MM 195MM 265MM 265MM
Max Height
370MM 345MM 580MM 680MM 1100MM 1270MM
Stroke
270MM 230MM 370MM 485MM 835MM 1005MM
Size (L*W*H)
400*320*100MM 580*370*115MM 590*420*210MM 760*420*195MM 760*420*265MM 760*420*265MM
Weight
6KG 8KG 13.5KG 16KG 20KG 20KG
Voltage
DC12~19V / DC24~32V / Hall 29V-32V
Surface Treatment
Electrophoretic Black
Operating Temperature
-10°C~+65°C
IP Grade
IP43
Limit Switches
Built-in
Operating Frequency
10% Work System, Maximum 1 Hour Continue Working
Optional Configuration
Hall Sensor: Position Display, Position Memory, Precise Control
Magnetic Induction Sensor: Adjust Rising and Falling Limit
Upper and Lower Limit Feedback

OUTLINE DIMENSION DRAWING

Optional Configuration
