Movable Electric Lifting Column 24V DC Motor 3000N 660LB Load - DHLC3000Y-Hall-HS1
$290.00
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC24~32V 60W Speed (MM/S) 5 9 13 20 Load Pull Capacity (N) 2700 1200 800 500 Self-Locking Capacity (N) 2700 1200 800 500 Operating Temperature -25°C~+65°C IP Grade IP54 /...
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days.
TECHNICAL PARAMETERS
| Voltage | DC24~32V 60W | |||
| Speed (MM/S) | 5 | 9 | 13 | 20 |
| Load Pull Capacity (N) | 2700 | 1200 | 800 | 500 |
| Self-Locking Capacity (N) | 2700 | 1200 | 800 | 500 |
| Operating Temperature | -25°C~+65°C | |||
| IP Grade | IP54 / IP66 | |||
| Limit Switches | Built-in | |||
| Operating Frequency | 10% Work System, Maximum 1 Hour Continue Working | |||
| Color | Silver White | |||
| Panels | Powder Coating | |||
| Stroke Length | 50mm~1400mm | |||
| Optional Features | Rebound or Pause When Encountering Obstacles Hall Sensor (Only 24V) Upper and Lower Limit Feedback |
|||

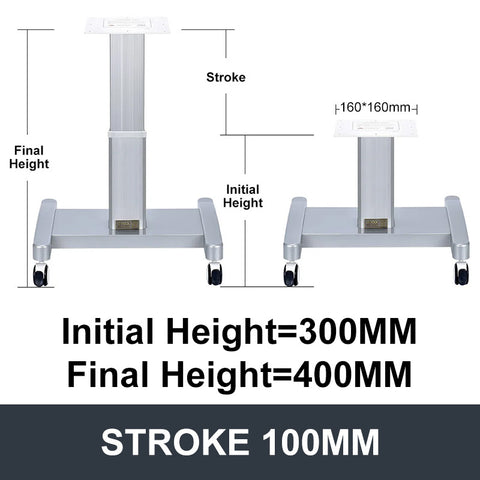

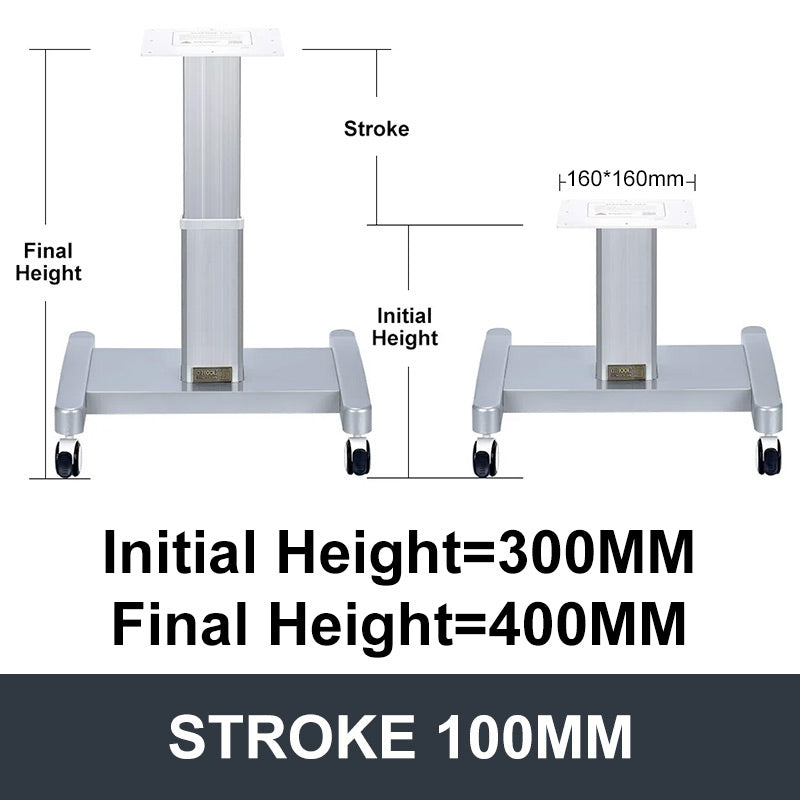

OUTLINE DIMENSION DRAWING
