Electric Linear Motion Actuator 24V DC Motor 180N 51LB Load - DHLA130-A2
$16.00
TECHNICAL PARAMETERS Voltage DC24V No-Load Speed (MM/S) 3.5 7 10 14 28 50 150 Load Push Capacity (N) 180 120 100 80 40 18 8 Self-locking Capacity (N) 150 70 60 50 20 10 6 Stroke Length 10mm,15mm,20mm,30mm,50mm,75mm,100mm,150mm Motor Power 5W Operating Temperature -10°C~+50°C Limit Switches Built-in Operating Frequency 10%...
TECHNICAL PARAMETERS
| Voltage | DC24V | ||||||
| No-Load Speed (MM/S) | 3.5 | 7 | 10 | 14 | 28 | 50 | 150 |
| Load Push Capacity (N) | 180 | 120 | 100 | 80 | 40 | 18 | 8 |
| Self-locking Capacity (N) | 150 | 70 | 60 | 50 | 20 | 10 | 6 |
| Stroke Length | 10mm,15mm,20mm,30mm,50mm,75mm,100mm,150mm | ||||||
| Motor Power | 5W | ||||||
| Operating Temperature | -10°C~+50°C | ||||||
| Limit Switches | Built-in | ||||||
| Operating Frequency | 10% Max 2Min. Continuous Use | ||||||
| Color | Black | ||||||
| Inner Tube | Aluminum tube | ||||||
| Material | Aluminum | ||||||
| Protection Class | IP43 | ||||||
| Noise | Below 55dB | ||||||
| Mechanical Life | More than 10,000 times | ||||||
| Note | Customized DC6V | ||||||

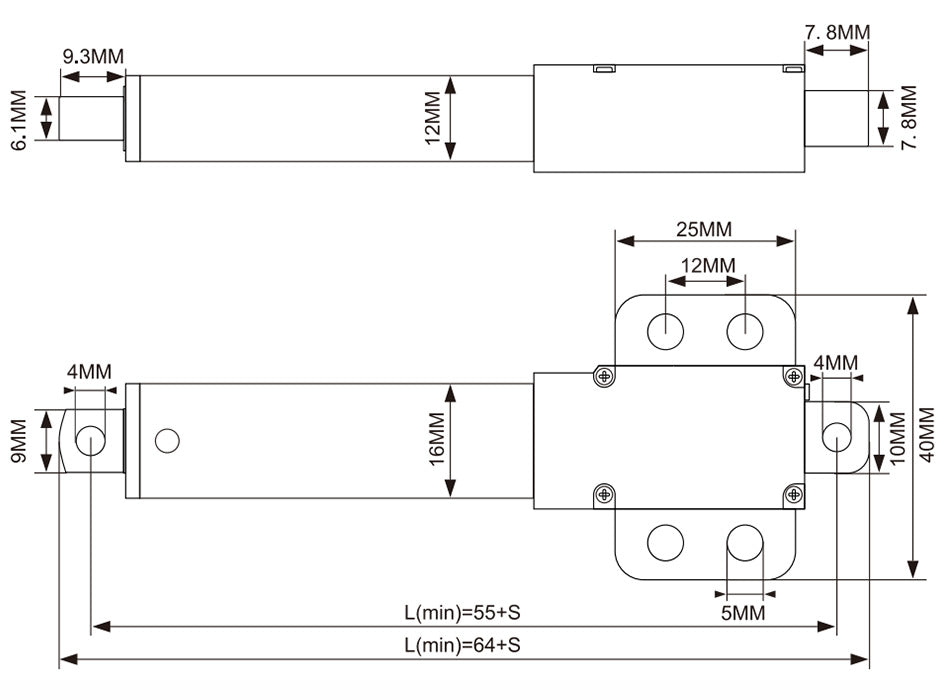

OUTLINE DIMENSION DRAWING
