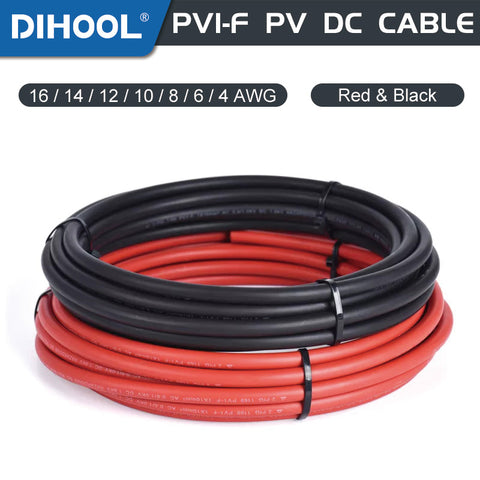

PV1F Solar DC Cable 1.5/2.5/4/6/10/16/25mm²
✔ Ordering Notes:
● When choosing the "Red and Black", We will deliver you two cables of your select length (1pcs Red +1pcs Black).
● Repeated purchase of the same kind of cable, the length is added up, no cutting.
INTRODUCTION
Specifications: 1.5/2.5/4/6/10/16/25mm²
Rated voltage: AC 0.6/1KV,DC1.5KV

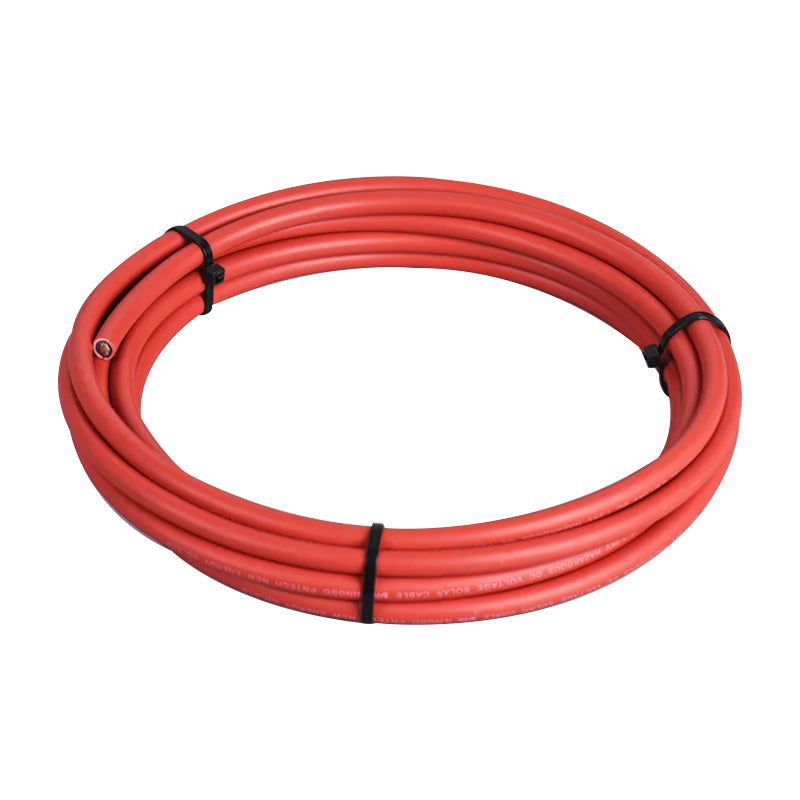

Color: Red / Black
Feature: Double insulation cover, TUV approved
Conductor material: stranded tin-plated ~ 99.95% oxygen-free copper
Outer Sheath: Halogen-free low-smoke polyolefin(XLPO)
Inner Insulation: Halogen-free low-smoke polyolefin(XLPO)
Service life: 25 years (-40 ℃ - 90 ℃)
Application: Indoor and outdoor solar installations
Fire rating: UL94-V0
Seller declaration: This item is double-sheathed cable, which is not as soft as single-sheathed cable and silicone cable, please pay attention to the distinction
TECHNICAL PARAMETERS
| Model | Safe Current (A) | Core Diameter (mm) | Conductor cross section (mm²) |
| 16 AWG | 19 | 30*0.25 | 1.5 |
| 14 AWG | 28 | 35*0.3 | 2.5 |
| 12 AWG | 36 | 56*0.3 | 4 |
| 10 AWG | 48 | 84*0.3 | 6 |
| 8 AWG | 65 | 142*0.3 | 10 |
| 6 AWG | 95 | 227*0.3 | 16 |
| 4 AWG | 120 | 190*0.4 | 25 |
Conductor: Tin-plated high-purity oxygen-free copper, electrical performance and structure meet the requirements of ASTMB33 or ASTMB172
Insulation: Thermosetting environmental protection insulation material, generally black
Sheath: Thermosetting radiation-crosslinked polyvinyl chloride environmental protection UV-resistant sheath material
