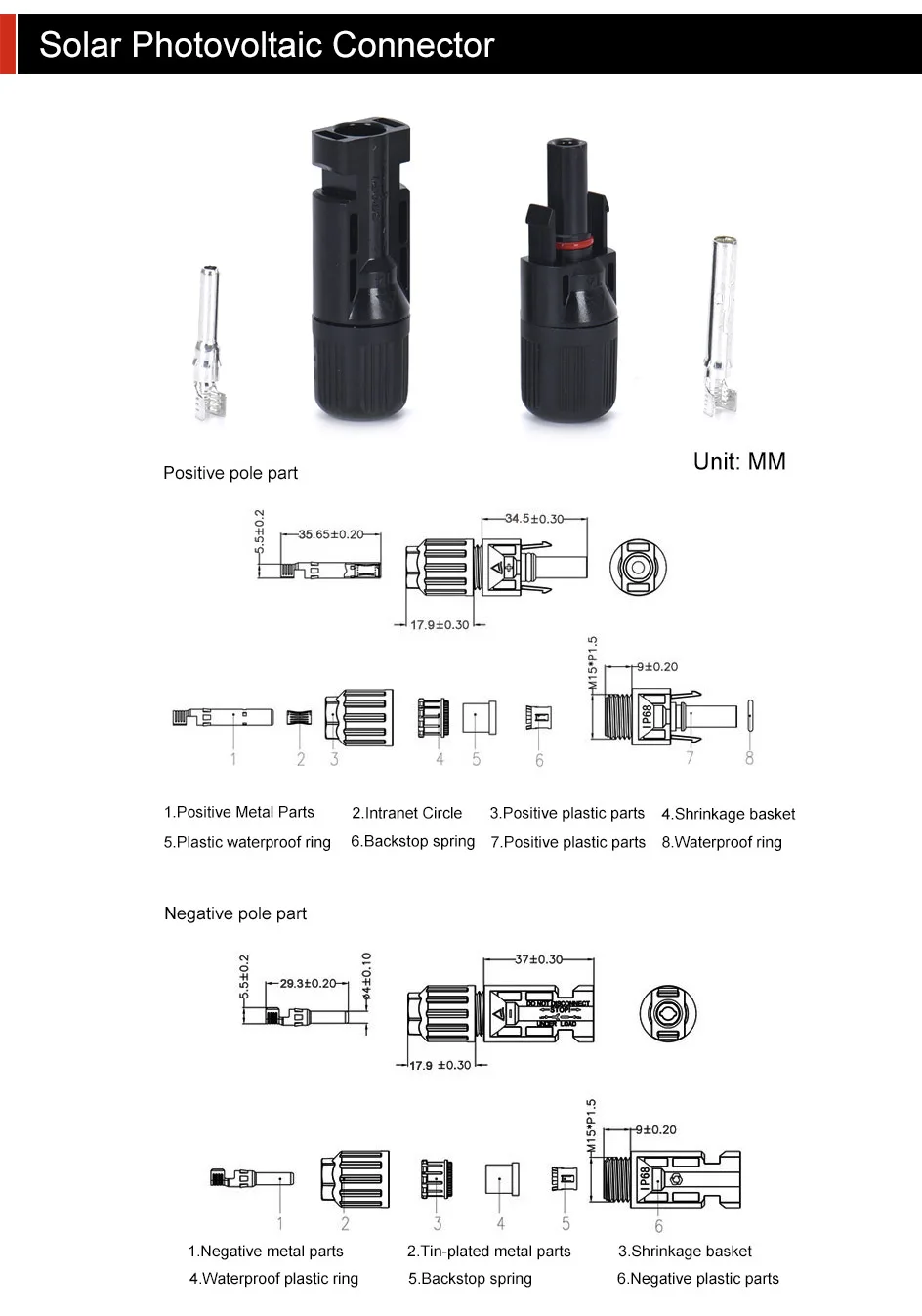

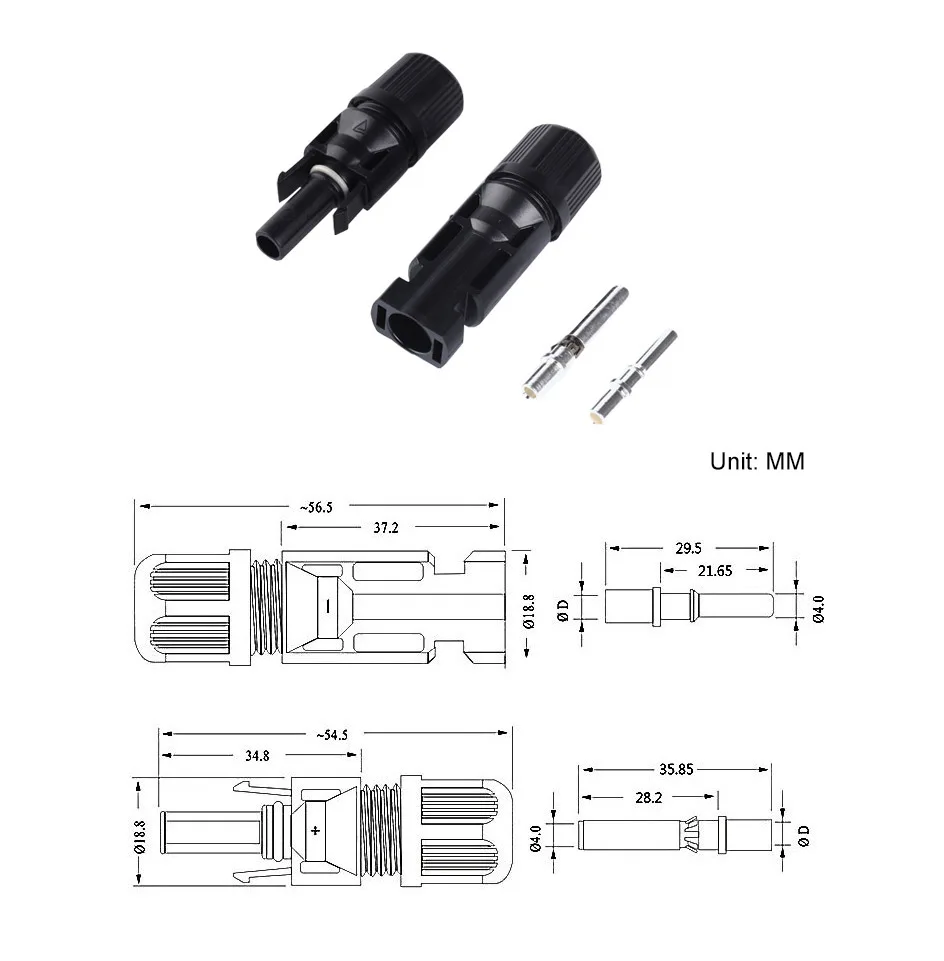

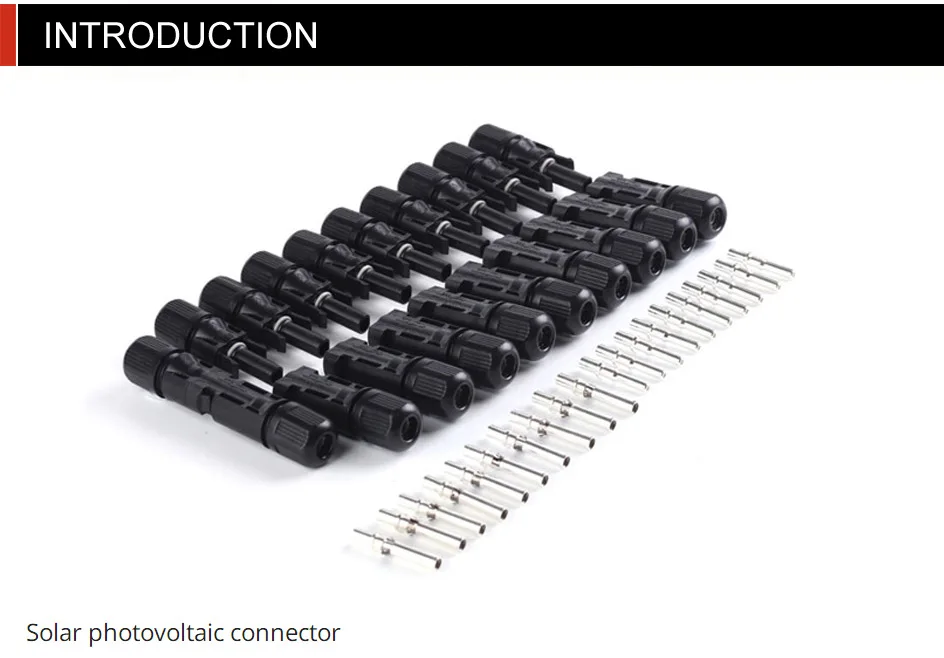

MC4 PV Solar Connector
INTRODUCTION
Working current : 5/10/15/25/30/45/60/80A
Working voltage : 1000V/1500V
Wiring specifications : 2.5 / 4 / 6 / 6-10 / 10-16mm²
Insulation resistance : 1MMΩ
Core material : Tin-plated Copper
Shell material : PPO insulation material
Protection level : IP67
Temperature range : -40 ~ 105 ° C
INTRODUCTION
Wiring specifications:1.5-6mm²,2.5-6mm²,2.5/4/6mm²
Insulation resistance:≥0.5MMΩ(T type) / 1MMΩ(Y type)
Core material: Copper tin plated
Shell material: PPO insulation material
Protection level:IP67
Temperature range:-40 ~ 105 ° C

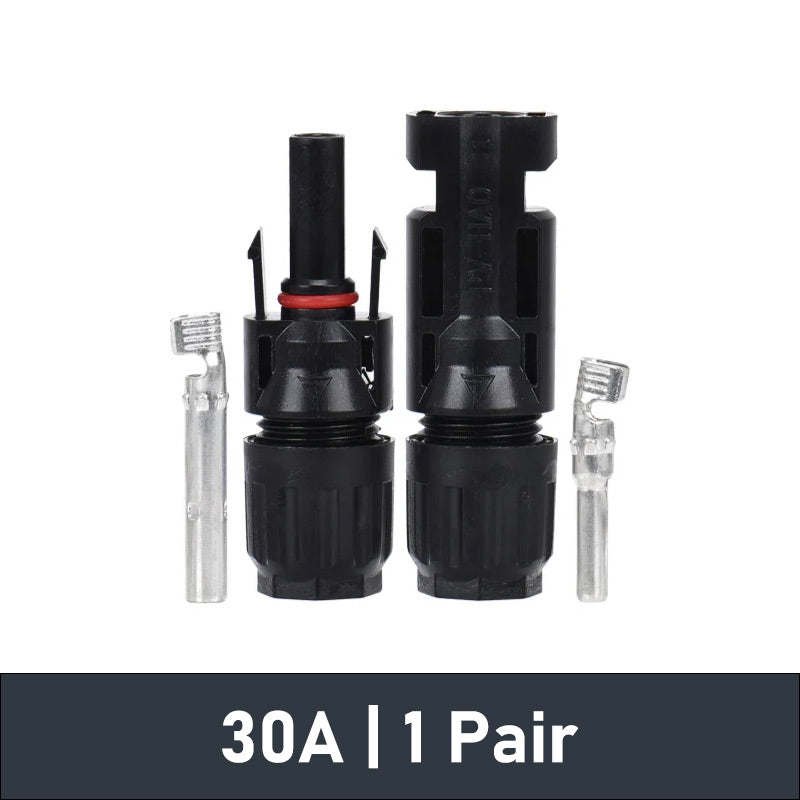

Working current:30A
Working voltage:1000V max

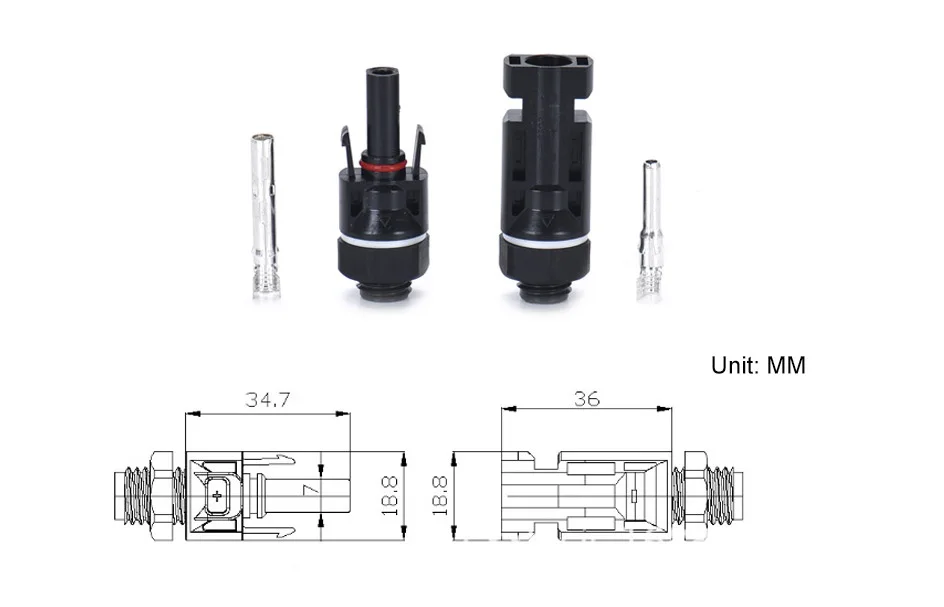

Working current: 30A
Core material : Tin-plated Copper · open type
Wiring specifications : 2.5 / 4 / 6mm²
Working current: 45A
Core material : Tin-plated Copper· Solid Core
Wiring specifications : 2.5 / 4 / 6mm²

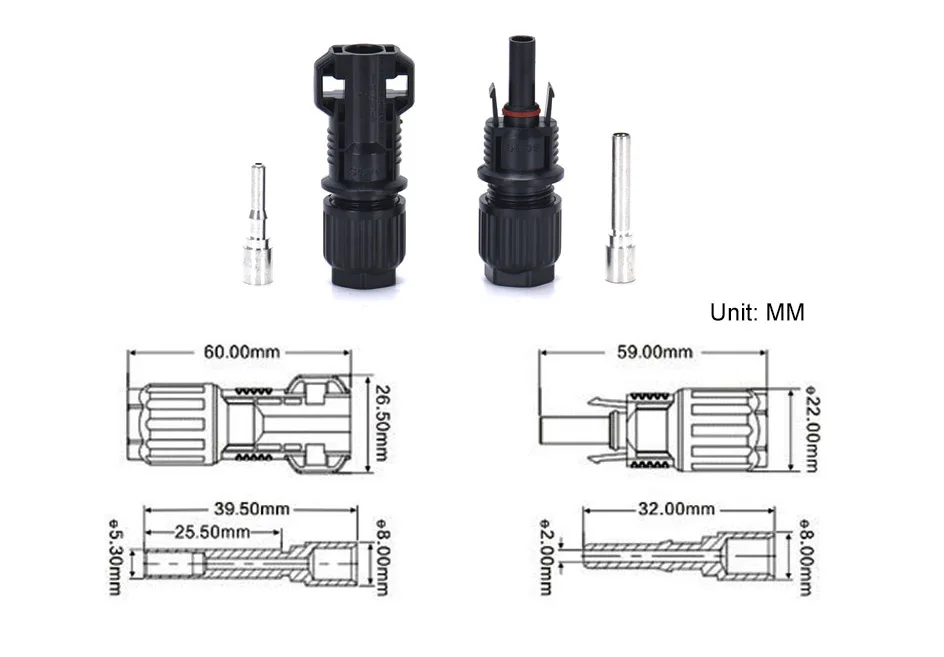

Working current: 60A
Core material : Tin-plated Copper· Solid Core
Wiring specifications : 6-10mm²
Working current: 80A
Core material : Tin-plated Copper · Solid Core
Wiring specifications : 10-16mm²

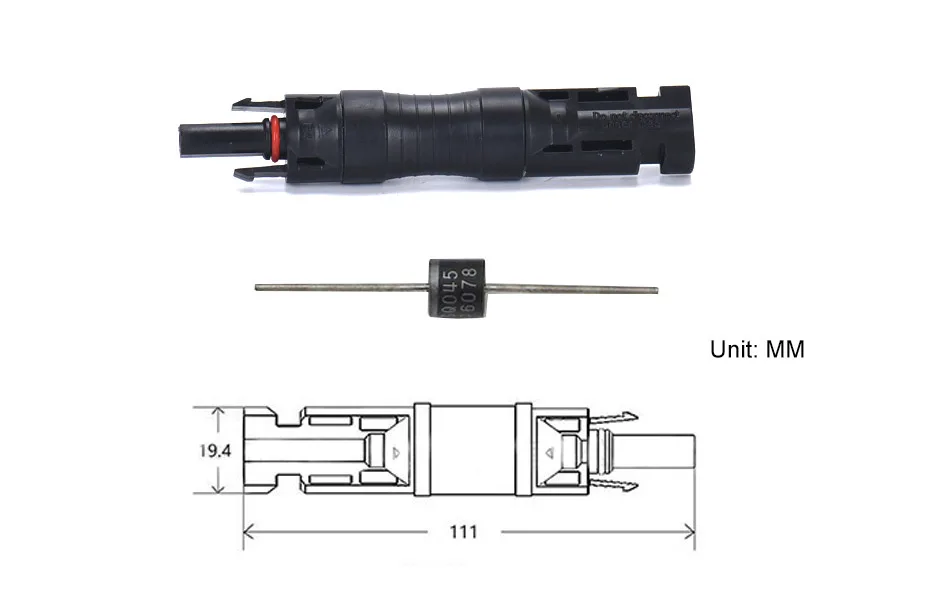

MC Photovoltaic Connector With Diode
Working current: 10A/15A
Wiring specifications : 2.5 / 4 / 6mm²
MC Photovoltaic Connector With Fuse
Working current: 5A/10A/15A/20A/25A/30A
Wiring specifications : 2.5 / 4 / 6mm²
MC Panel Mount Connector
Working current: 30A
Wiring specifications : 2.5 / 4 / 6mm²

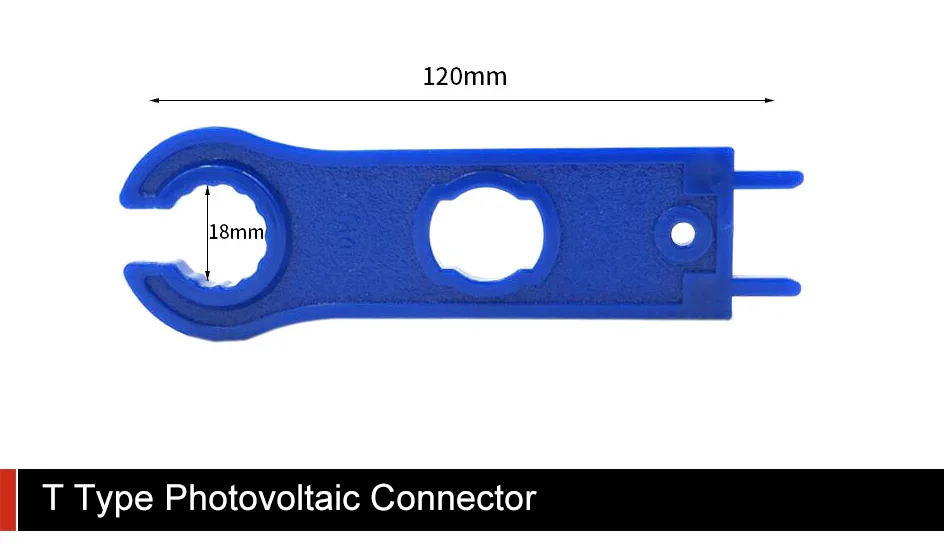

A Pair Of Wrenches
1 to 2
Working current: 30A
Core material : tinned copper, open type
Wiring specifications : 1.5-6mm²
1 to 3
Working current: 30A
Core material : tinned copper, open type
Wiring specifications : 2.5-6mm²

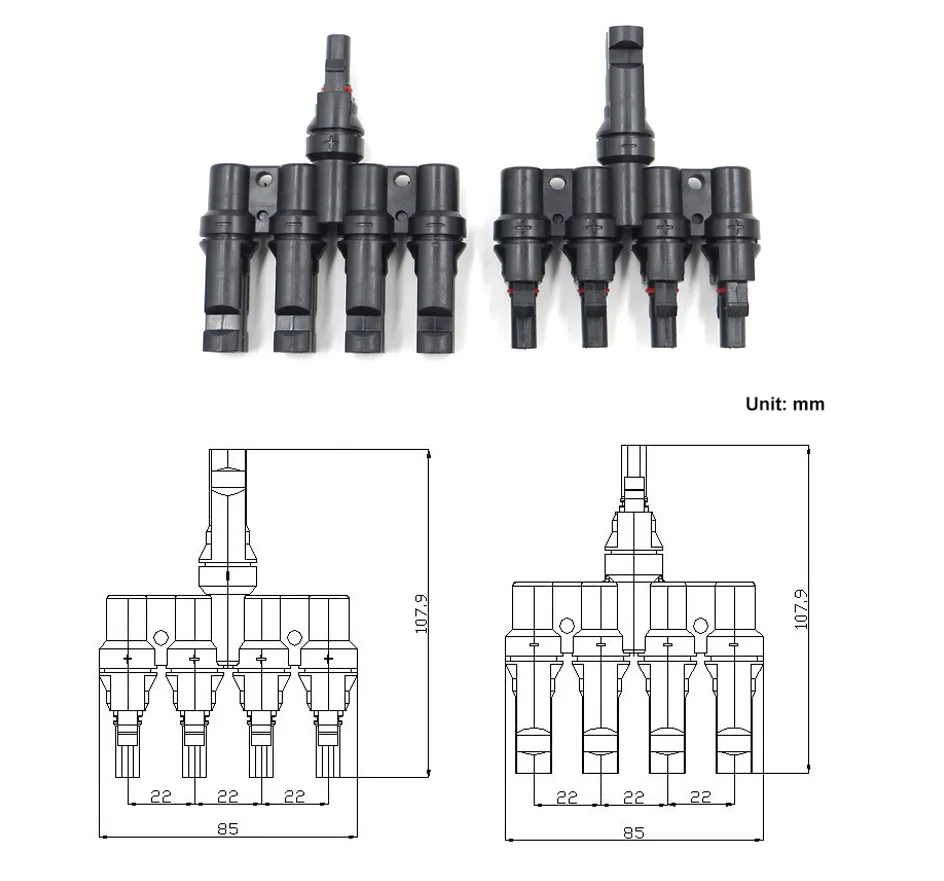

1 to 4
Working current: 30A
Core material : tinned copper, open type
Wiring specifications : 2.5/4/6mm²

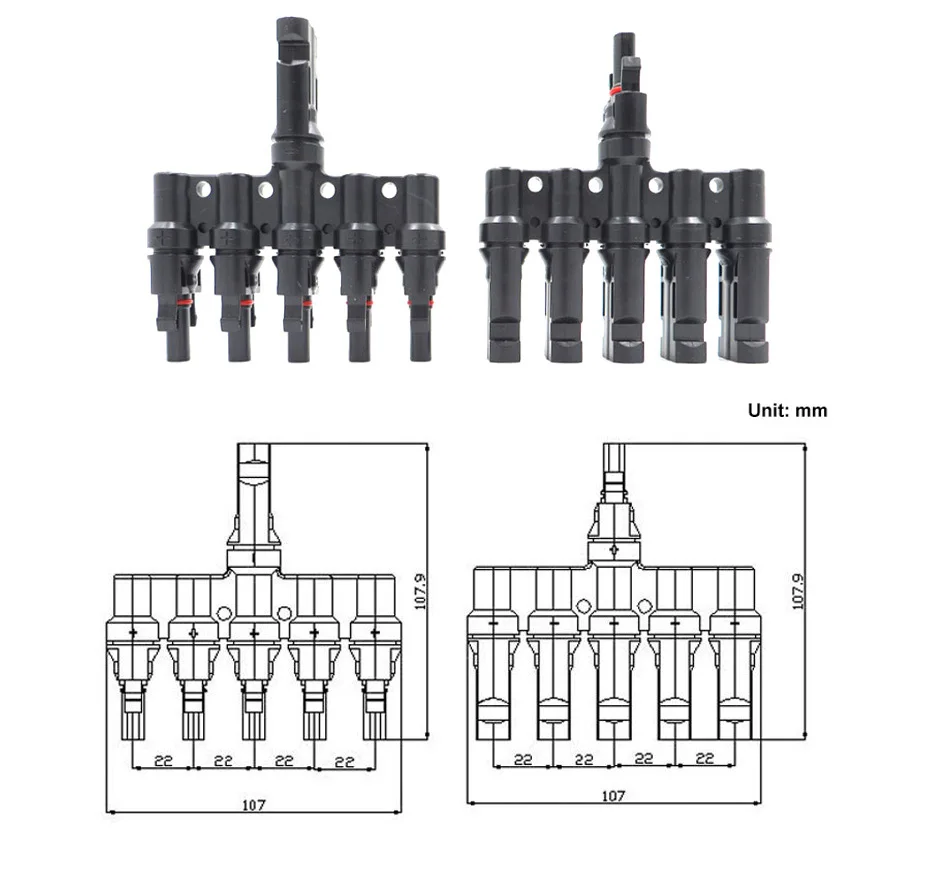

1 to 5
Working current: 30A
Core material : tinned copper, open type
Wiring specifications : 1.5-6mm²
1 to 6
Working current: 30A
Core material : tinned copper, open type
Wiring specifications : 1.5-6mm²

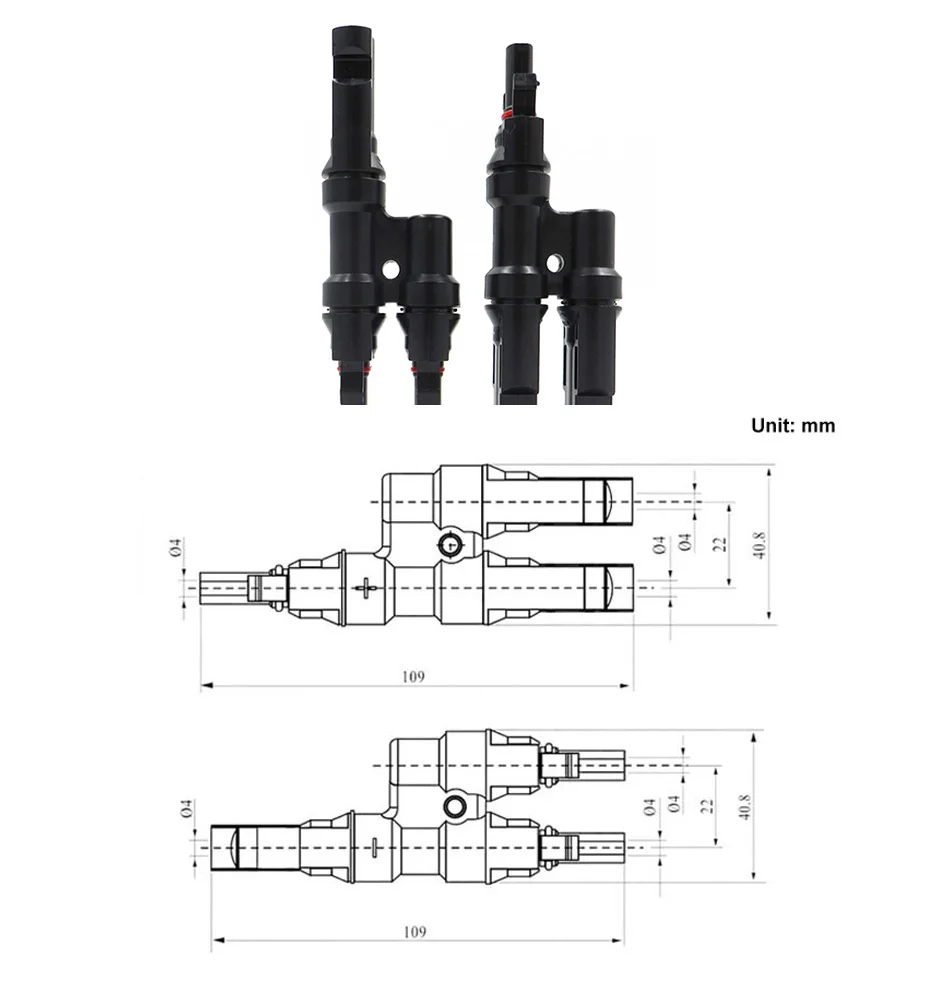

1 to 2 ( Y Type )
Working current: 30A
Core material : tinned copper, open type
Wiring specifications : 2.5/4/6mm²

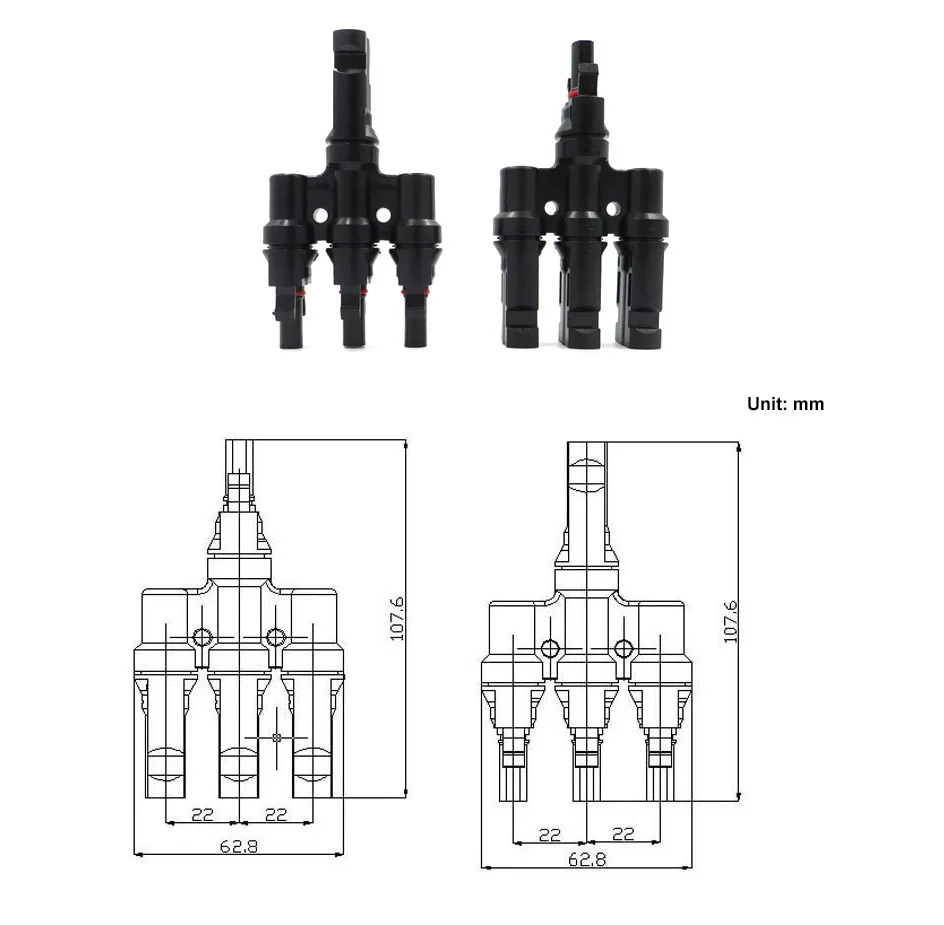

1 to 3 ( Y Type )
Working current: 30A
Core material : tinned copper, open type
Wiring specifications : 2.5/4/6mm²

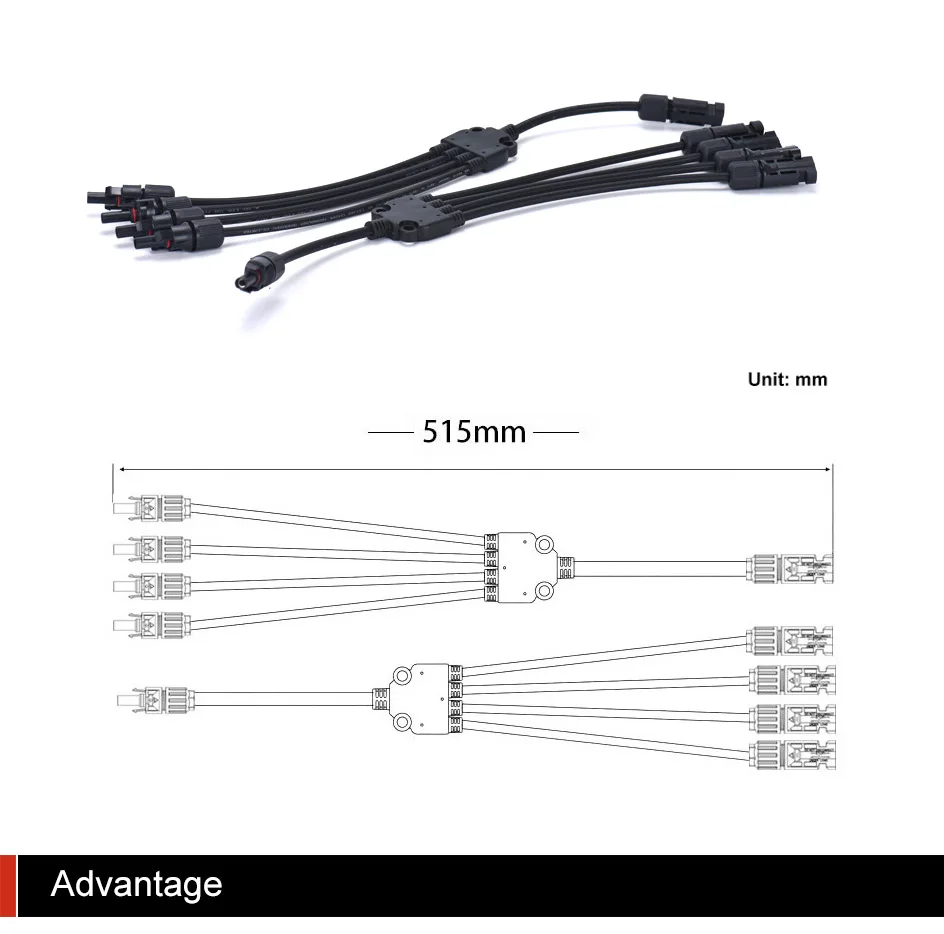

1 to 4 ( Y Type )
Working current: 30A
Core material : tinned copper, open type
Wiring specifications : 2.5/4/6mm²
PPO
The shell is made of high-strength PPO plastic, which has high heat resistance, flame resistance, wear resistance and pollution resistance.
High-Strength Waterproof Ring
The product uses a high-strength waterproof ring, waterproof and dustproof, waterproof grade IP67

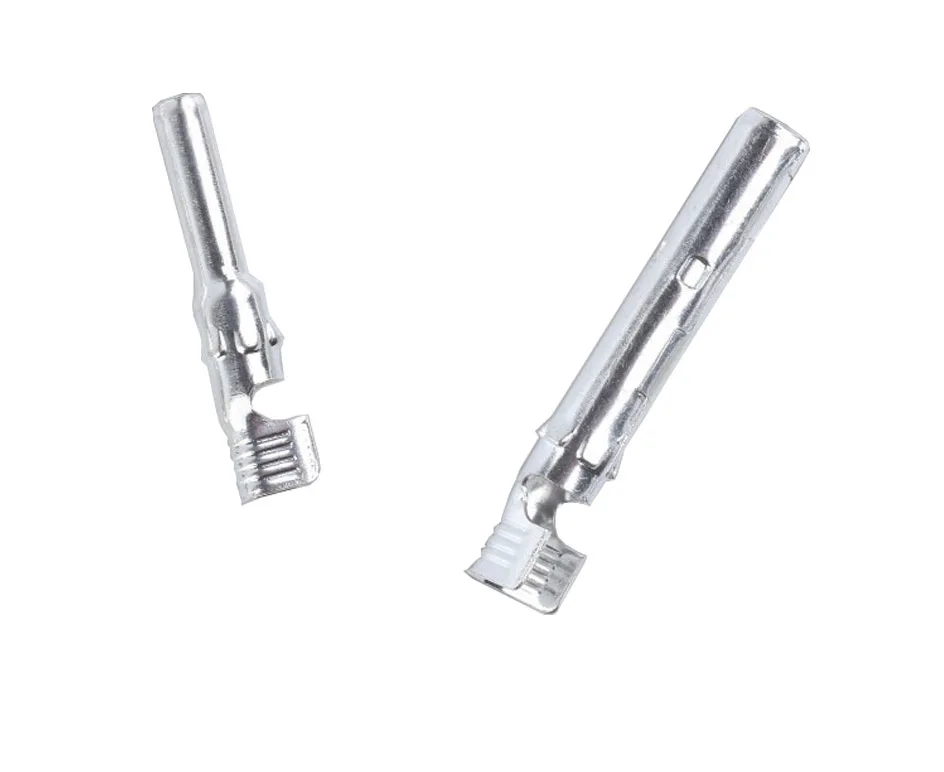

Thick Copper Core Tinned Material
Thicker all-copper core, faster transmission and more durable
