Electric Linear Motion Actuator 9~32V DC Motor 150N 33LB Load - DHLA42HB34
$25.00
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC9~32V Motor 42HB60 42HB48 42HB40 42HB34 Motor Torque 0.89NM 0.6NM 0.46NM 0.31NM Max Thrust(N) 400 300 200 150 Max Speed(MM/S) 80 60 40 30 Stroke Length 50mm-800mm Motor Power 48W...
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days.
TECHNICAL PARAMETERS
|
Voltage
|
DC9~32V
|
|||||
|
Motor
|
42HB60 | 42HB48 | 42HB40 | 42HB34 | ||
|
Motor Torque
|
0.89NM | 0.6NM | 0.46NM | 0.31NM | ||
|
Max Thrust(N)
|
400 | 300 | 200 | 150 | ||
|
Max Speed(MM/S)
|
80 | 60 | 40 | 30 | ||
|

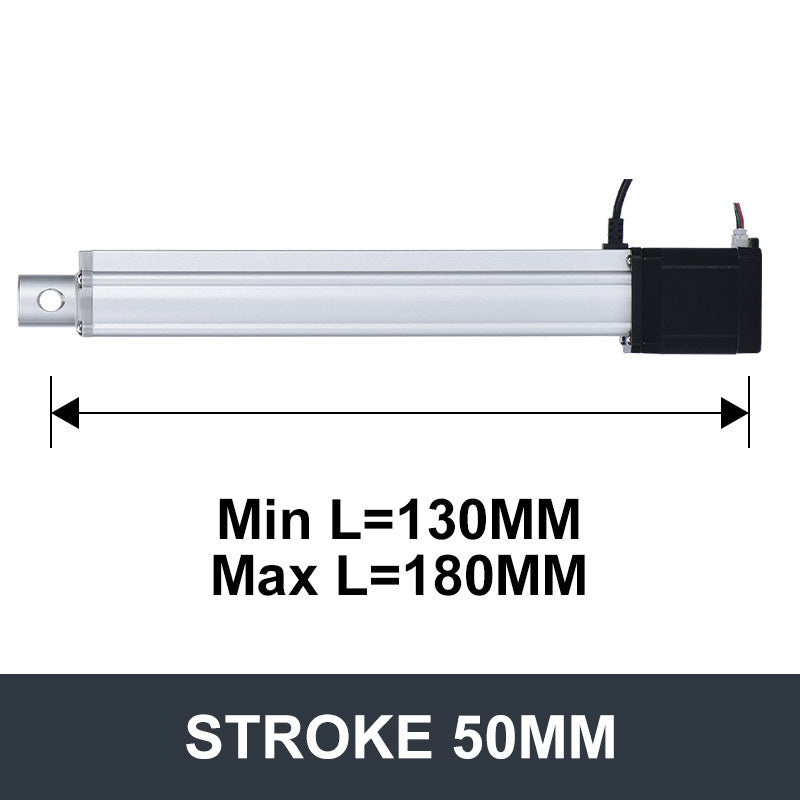

Stroke Length
|
50mm-800mm
|
|||||
|
Motor Power
|
48W
|
|||||
|
Operating Temperature
|
0°C~+40°C
|
|||||
|
Limit Switches
|
Without (Optional)
|
|||||
|
IP Grade
|
IP43
|
|||||
|
Noise
|
30dB
|
|||||
|
Operating Frequency
|
10% Work System, Maximum 1 Hour Continue Working
|
|||||
|
Inner Tube
|
Aluminum tube
|
|||||
|
Lead screw Type
|
Type T
|
|||||
|
Mechanical Life
|
More than 30,000 times
|
|||||
OUTLINE DIMENSION DRAWING
Optional Configuration
