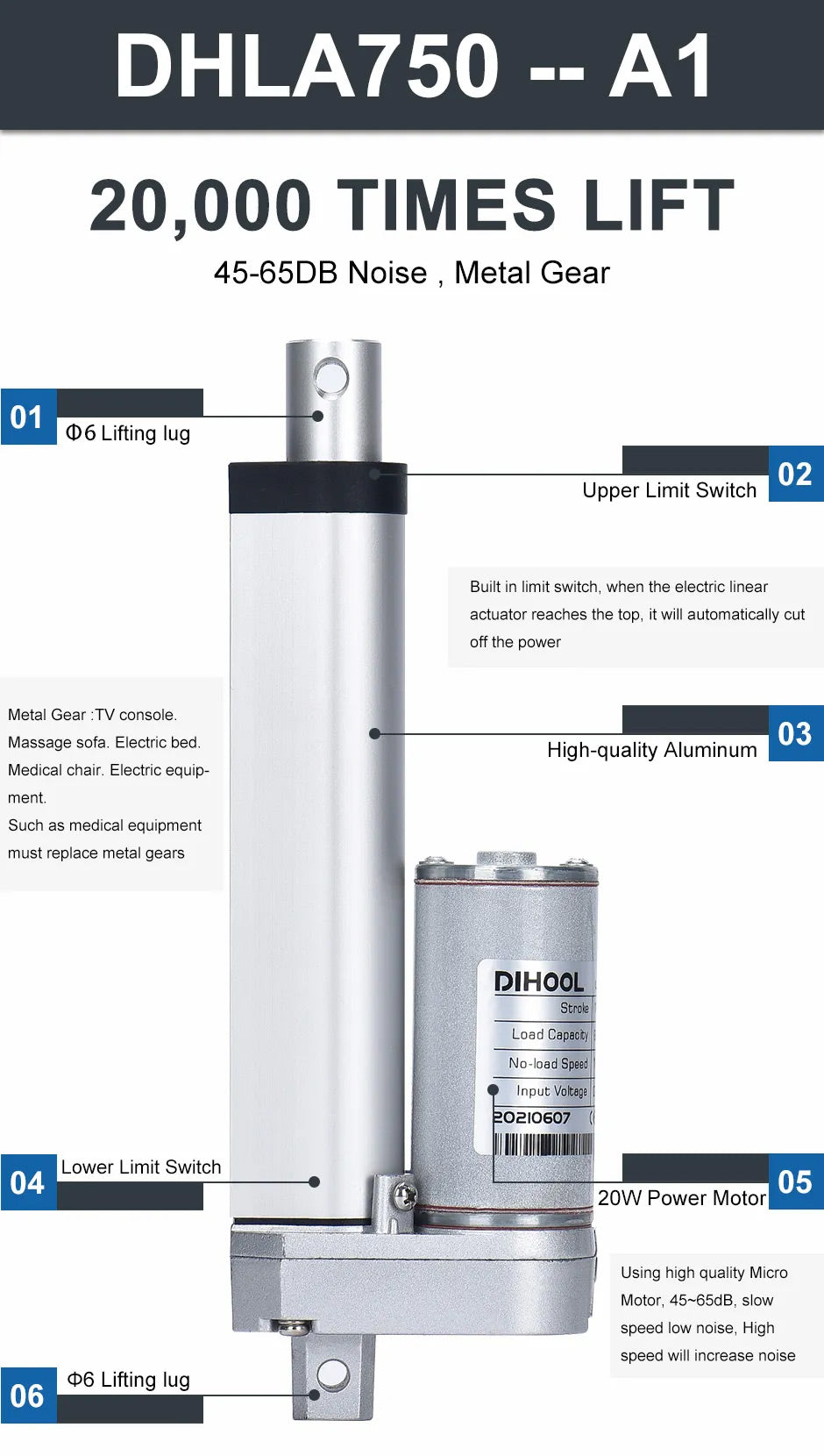

Electric Linear Motion Actuator 24V DC Motor 1500N 330LB Load - DHLA750-A1
$16.00
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC24~32V Speed (MM/S) 5 10 20 30 50 90 Load Pull Capacity (N) 1000 700 350 200 150 70 Load Push Capacity (N) 1500 1000 500 300 200 100 Self-locking...
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days.
TECHNICAL PARAMETERS
| Voltage | DC24~32V | |||||
| Speed (MM/S) | 5 | 10 | 20 | 30 | 50 | 90 |
| Load Pull Capacity (N) | 1000 | 700 | 350 | 200 | 150 | 70 |
| Load Push Capacity (N) | 1500 | 1000 | 500 | 300 | 200 | 100 |
| Self-locking Capacity (N) | 1000 | 700 | 350 | 200 | 150 | 70 |
| Stroke Length | 30MM~800MM | |||||
| Motor Power | 20W | |||||
| Operating Temperature | -0°C~+40°C | |||||
| Limit Switches | Built-in | |||||
| Operating Frequency | 10% Max 2Min. Continuous Use | |||||
| Inner Tube | Aluminum tube | |||||
| Material | Aluminum | |||||
| Lead Screw Type | Type T | |||||
| Noise | 45~60dB | |||||
| Mechanical Life | More than 30,000 times | |||||

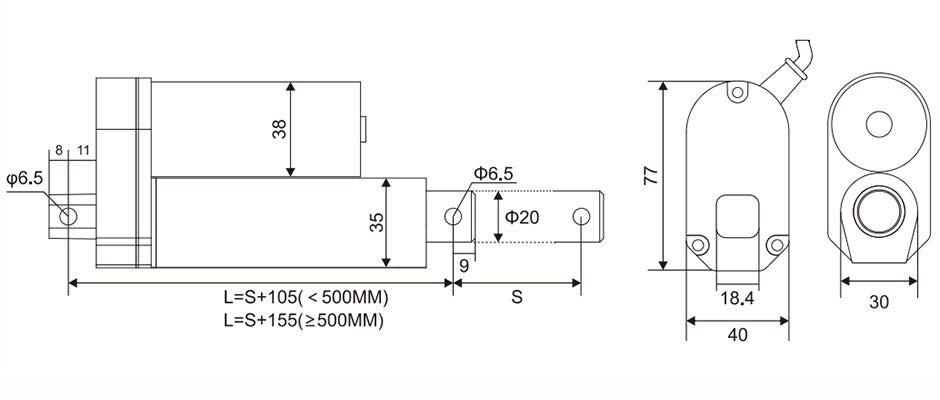

OUTLINE DIMENSION DRAWING
Optional Configuration
