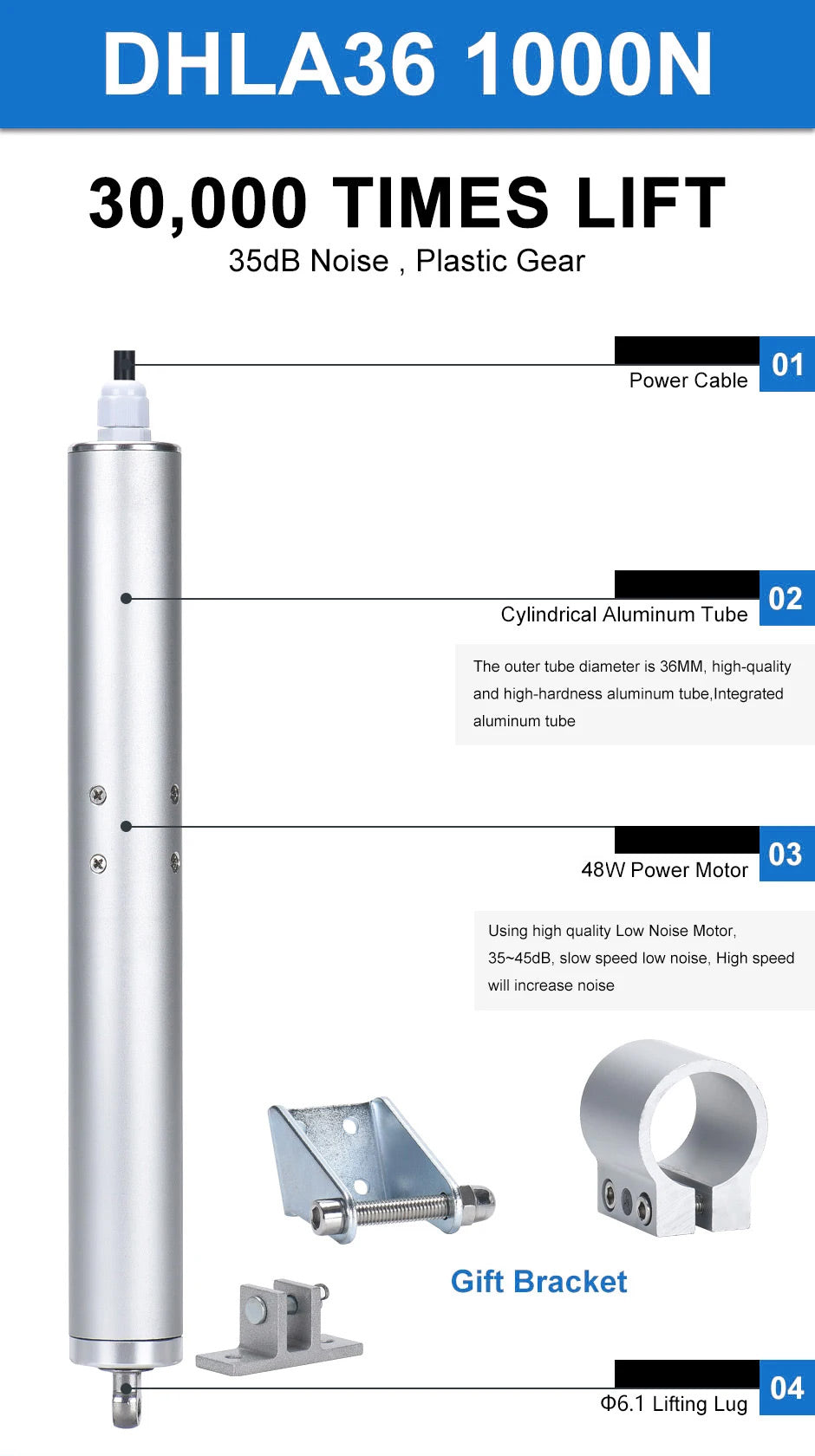

Electric Linear Motion Actuator 24V DC Motor 1000N 220LB Load - DHLA36
$40.00
TECHNICAL PARAMETERS Voltage DC24~32V Speed (MM/S) 8 Load Pull Capacity(N) 1000 Load Push Capacity(N) 1000 Self-locking Capacity(N) 4000 Stroke Length 100mm-1000mm Motor Power 48W Operating Temperature -15°C~+75°C Limit Switches Built-in Protection Level IP65 Material 304 Stainless Steel + Aluminum Noise <30dB Operating Frequency 10% max 2min. continuous use Inner Tube...
TECHNICAL PARAMETERS
| Voltage | DC24~32V | |||||
| Speed (MM/S) | 8 | |||||
| Load Pull Capacity(N) | 1000 | |||||
| Load Push Capacity(N) | 1000 | |||||
| Self-locking Capacity(N) | 4000 | |||||
| Stroke Length | 100mm-1000mm | |||||
| Motor Power | 48W | |||||
| Operating Temperature | -15°C~+75°C | |||||
| Limit Switches | Built-in | |||||
| Protection Level | IP65 | |||||
| Material | 304 Stainless Steel + Aluminum | |||||
| Noise | <30dB | |||||
| Operating Frequency | 10% max 2min. continuous use | |||||
| Inner Tube | Aluminum tube | |||||
| Lead screw Type | Type T | |||||
| Mechanical Life | More than 30,000 times | |||||

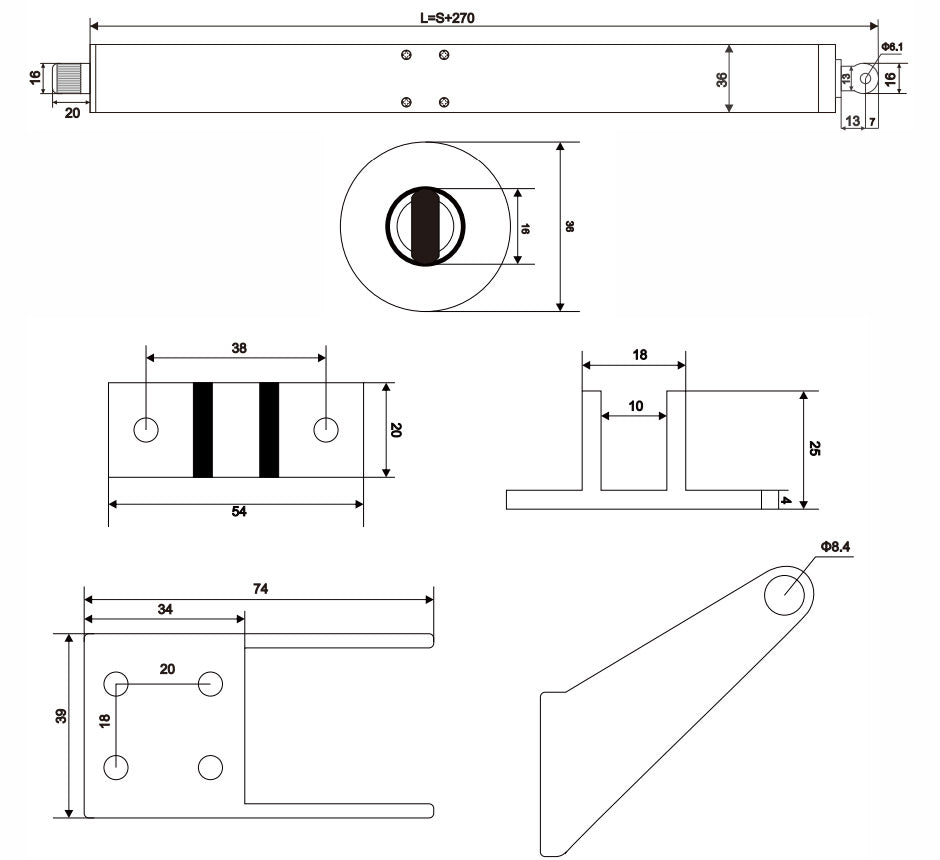

OUTLINE DIMENSION DRAWING
