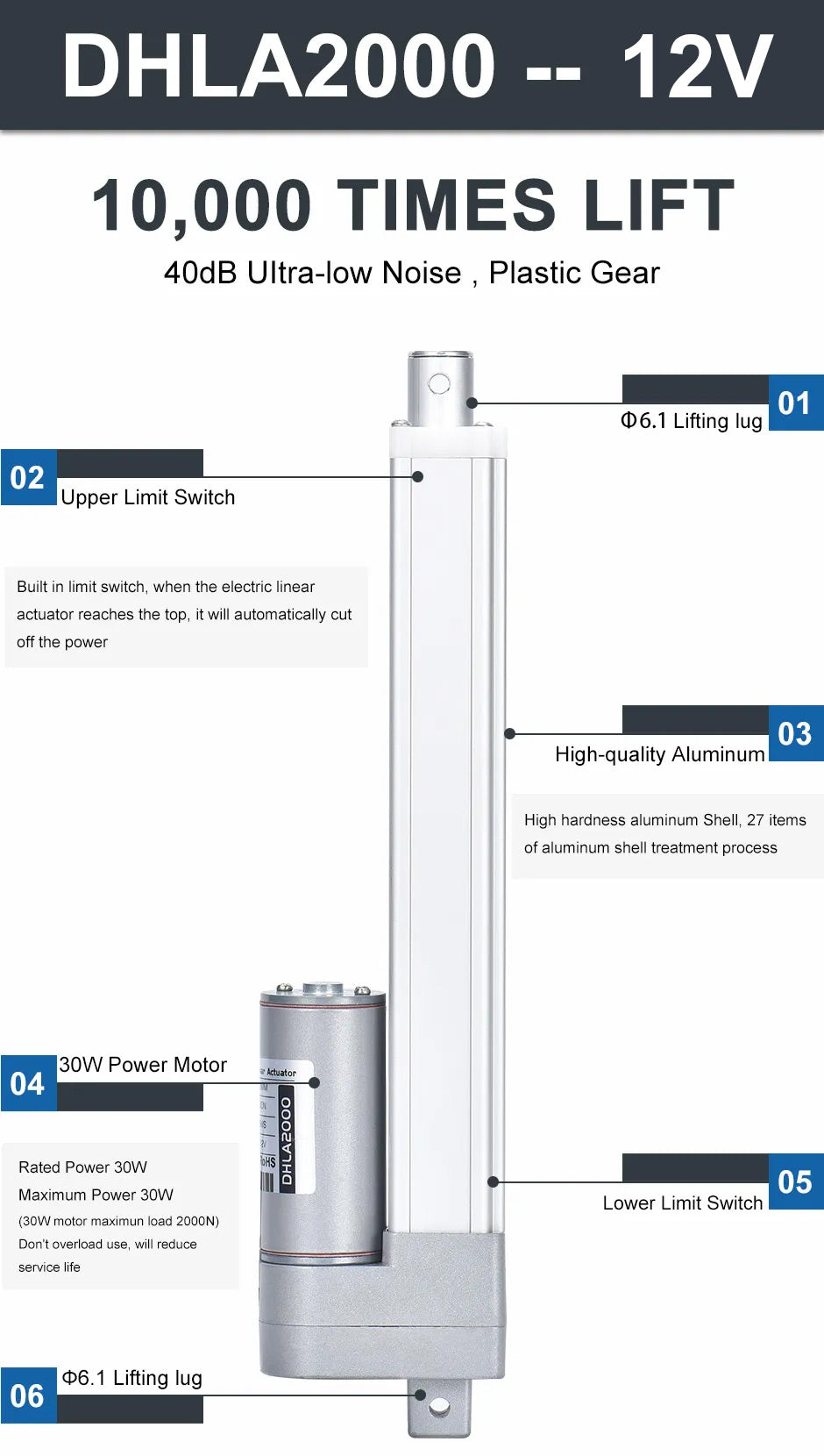

Electric Linear Motion Actuator 12V DC Motor 2000N 440LB Load - DHLA2000-A1
$22.50
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days. TECHNICAL PARAMETERS Voltage DC12~19V Speed (MM/S) 5 6 12 20 40 55 Load Pull Capacity(N) 2000 1500 1000 500 300 200 Load Push Capacity(N) 2000 1500 1000 500 300 200 Self-locking Capacity(N) 2000...
Note: The stroke can be customized such as 650MM, 70MM, etc., And it will take 3-7 days.
TECHNICAL PARAMETERS
| Voltage | DC12~19V | |||||
| Speed (MM/S) | 5 | 6 | 12 | 20 | 40 | 55 |
| Load Pull Capacity(N) | 2000 | 1500 | 1000 | 500 | 300 | 200 |
| Load Push Capacity(N) | 2000 | 1500 | 1000 | 500 | 300 | 200 |
| Self-locking Capacity(N) | 2000 | 1500 | 1000 | 500 | 300 | 200 |
| Stroke Length | 50mm-800mm | |||||
| Motor Power | 30W | |||||
| Operating Temperature | 0°C~+50°C | |||||
| Limit Switches | Built-in | |||||
| Operating Frequency | 10% Max 2min. continuous use | |||||
| Lead Screw Type | Type T | |||||
OUTLINE DIMENSION DRAWING
Optional Configuration
